OEM Aluminum Investment Casting Services with Pressurized Cast Die Mold Making

In the precision manufacturing sector, OEM aluminum investment casting enhanced with pressurized cast die mold technology represents a significant advancement in producing high-integrity components for demanding applications. This sophisticated manufacturing approach combines the dimensional accuracy of investment casting with the enhanced metallurgical properties achieved through pressurized solidification.

Advanced Aluminum Material Engineering

Our investment casting services utilize premium aluminum-silicon alloys specifically formulated for pressurized casting applications. The A356.2 alloy, with its controlled silicon content of 6.5-7.5% and magnesium content of 0.25-0.45%, develops exceptional mechanical properties through T6 heat treatment, achieving tensile strength exceeding 45,000 psi and yield strength of 35,000 psi . For applications requiring enhanced fluidity and pressure tightness, we employ A360 alloy with its superior casting characteristics and minimum tensile strength of 46,000 psi in as-cast condition . Each alloy batch undergoes spectrographic analysis to ensure precise chemical composition control.

Precision Pressurized Casting Technology

Our pressurized investment casting process integrates advanced mold making with controlled solidification:

Precision Die Mold Manufacturing

• CNC-machined mold bases created from P20 and H13 tool steels with hardness ratings of HRC 30-44

• Electrical discharge machining (EDM) producing complex mold cavities with tolerances within ±0.0005 inches

• Multi-slide mold systems enabling undercut features and complex geometries without secondary operations

• Temperature control systems incorporating conformal cooling channels for optimal thermal management

Pressurized Casting Process

• Vacuum-assisted pouring ensuring complete mold filling and reduced gas porosity

• Controlled pressure application during solidification, typically ranging from 20-100 psi depending on component geometry

• Directional solidification enhancement through strategic mold design and thermal management

• Real-time process monitoring tracking temperature, pressure, and cycle parameters for consistent quality

Enhanced Performance Characteristics

Components manufactured through our pressurized investment casting process deliver:

• Superior Metallurgical Integrity: Reduced porosity levels below 1% through controlled solidification under pressure

• Enhanced Mechanical Properties: Improved yield strength and elongation compared to conventional investment casting

• Exceptional Surface Finish: Achieving 125-250 microinch (3.2-6.3 μm) roughness without secondary processing

• Outstanding Dimensional Accuracy: Maintaining tolerances of ±0.005 inches per inch for the first inch and ±0.002 inches per inch thereafter

• Improved Pressure Tightness: Ideal for components requiring leak-proof performance in hydraulic and pneumatic applications

Comprehensive Quality Assurance

Our manufacturing processes incorporate rigorous quality protocols:

• X-ray Inspection: Detecting internal defects and verifying structural integrity per ASTM E505 standards

• Liquid Penetrant Testing: Identifying surface discontinuities in critical application components

• Coordinate Measuring Machine Verification: Ensuring dimensional compliance with design specifications

• Mechanical Property Testing: Validating tensile strength, hardness, and elongation requirements

• Material Certification: Providing complete traceability and compliance with ASTM B26/B108 specifications

OEM Application Solutions

Our pressurized aluminum investment casting services support diverse industry requirements:

Aerospace and Defense

• Structural airframe components requiring high strength-to-weight ratios and reliability

• Avionics enclosures demanding EMI shielding and environmental protection

• Defense system components needing durability in extreme operating conditions

Automotive Performance

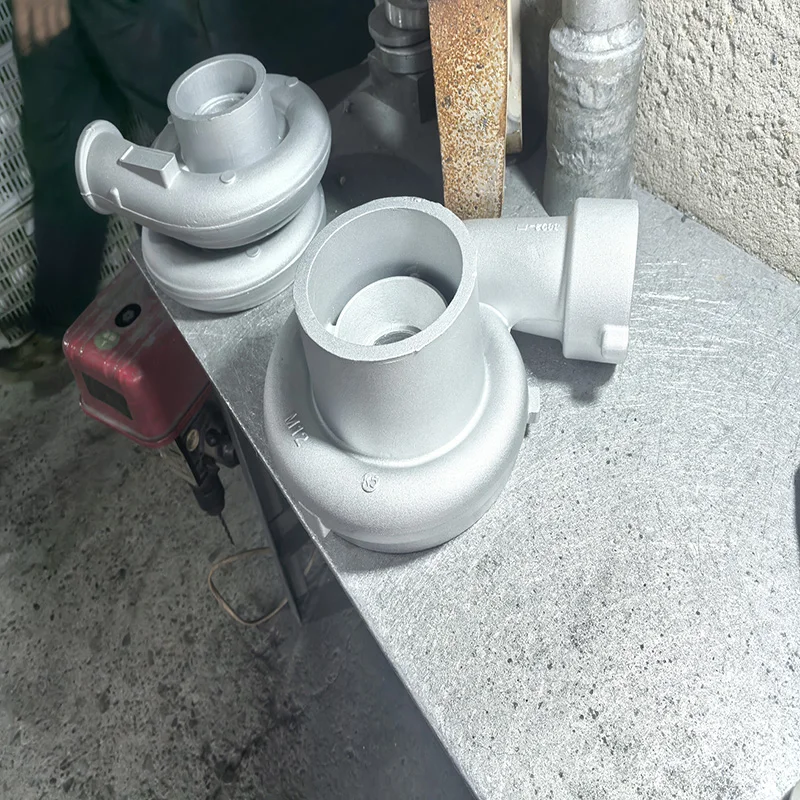

• Engine components including turbocharger housings and intake manifolds

• Transmission system parts requiring precision and durability under load

• Braking system components demanding consistent performance and reliability

Industrial Equipment

• Hydraulic valve bodies requiring pressure integrity and corrosion resistance

• Pump housings and impellers needing complex internal passages and wear resistance

• Robotic components demanding lightweight construction and precision

Technical Partnership Advantages

Our OEM services provide comprehensive engineering support:

• Design for Manufacturing Analysis: Optimizing component geometry for pressurized casting efficiency

• Rapid Prototype Development: Accelerating product validation through quick-turn pattern making

• Production Scaling: Supporting requirements from prototype to high-volume manufacturing

• Value Engineering: Identifying opportunities for cost reduction while maintaining performance
