Precision Investment Casting Pump Lost Wax Process High Quality Casting Services Product

The precision investment casting process, commonly known as the lost wax casting method, represents the gold standard for manufacturing complex pump components with exceptional dimensional accuracy and superior surface finish. This ancient manufacturing technique, refined with modern technology, delivers pump parts that meet the most demanding hydraulic performance requirements across industrial, chemical, and commercial applications.

Advanced Material Versatility

Precision investment casting accommodates an extensive range of engineering materials specifically selected for pump applications:

Stainless Steel Alloys (304, 316, 17-4PH) provide outstanding corrosion resistance against aggressive fluids including seawater, chemicals, and abrasive slurries. These alloys maintain mechanical integrity in temperatures ranging from cryogenic to 800°F (427°C), with 316 stainless offering enhanced protection against chloride-induced corrosion .

Carbon Steel Grades (1020, 1045) deliver high tensile strength (up to 85,000 psi) and excellent impact resistance for high-pressure pump applications. The controlled carbon content ensures optimal weldability and machinability for post-casting modifications .

Bronze and Brass Alloys (C83600, C85700) offer natural biocorrosion resistance and excellent machinability for marine and water handling applications. The copper-based alloys provide natural antimicrobial properties while maintaining dimensional stability across temperature variations .

Duplex Stainless Steels and Super Alloys (Inconel, Hastelloy) withstand extreme temperature and pressure conditions in specialized pumping applications, maintaining performance in corrosive and high-wear environments .

Precision Lost Wax Casting Process

The investment casting process involves multiple sophisticated stages that ensure exceptional component quality:

Pattern Creation

• Injection molding produces precise wax patterns using aluminum molds

• Rapid prototyping utilizing 3D printed patterns for prototype development

• Pattern assembly creating clusters for efficient production

Shell Building

• Ceramic slurry dipping creates primary coating with fine zircon sand

• Successive coatings build shell thickness using fused silica and aluminosilicate

• Controlled drying between coats ensures shell integrity

Dewaxing and Firing

• High-pressure steam autoclaves remove wax patterns

• High-temperature firing (1500-1900°F) creates rigid ceramic molds

Melting and Pouring

• Vacuum melting ensures superior metallurgical quality

• Controlled pouring maintains optimal temperature and flow characteristics

Enhanced Performance Characteristics

Pump components manufactured through precision investment casting deliver:

• Exceptional Surface Finish: Achieving 125-250 microinch (3.2-6.3 μm) roughness, reducing hydraulic friction losses

• Superior Dimensional Accuracy: Maintaining tolerances of ±0.005 inches per inch (±0.127 mm per 25 mm)

• Complex Geometry Capability: Producing intricate internal passages, thin walls (down to 0.04 inches/1 mm), and integrated features

• Minimal Machining Requirements: Near-net-shape production reduces secondary processing costs

• Excellent Reproducibility: Consistent quality across production batches ensures reliable pump performance

Quality Assurance Protocol

Our investment casting process incorporates comprehensive quality verification:

• X-ray inspection detects internal defects and verifies structural integrity

• Liquid penetrant testing identifies surface discontinuities

• Dimensional validation using coordinate measuring machines

• Material certification confirming chemical composition and mechanical properties

• Pressure testing ensuring leak-free performance in hydraulic applications

Comprehensive Pump Application Range

Industrial Process Pumps

• Chemical process pumps handling corrosive fluids and solvents

• Slurry pumps transporting abrasive materials in mining and mineral processing

• API 610 compliant pumps for refinery and petrochemical applications

Water and Wastewater

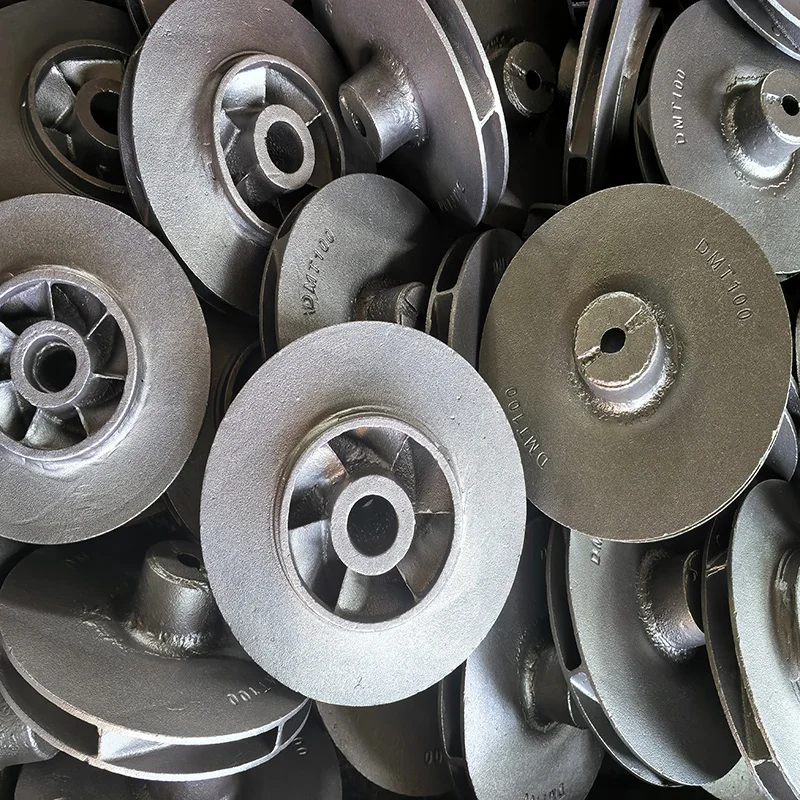

• Centrifugal pump volutes and impellers for water distribution systems

• Submersible pump components for drainage and sewage applications

• Metering pump elements for precise chemical injection

Specialized Applications

• Marine pumps handling seawater and ballast transfer

• Food and pharmaceutical pumps meeting sanitary requirements

• High-pressure plunger pumps for water jet cutting and descaling

Technical Partnership Advantages

Our engineering team provides comprehensive support services:

• Design for Manufacturing optimizing component geometry for casting efficiency

• Fluid Dynamics Analysis ensuring optimal hydraulic performance

• Rapid Prototyping accelerating development cycles

• Production Scaling from prototype to full production volumes
