Cnc Machining Turning Housing Cast Iron Sand Casting Foundry

In industrial component manufacturing, the integration of traditional foundry techniques with modern computer-controlled machining represents the pinnacle of production capability for housing components. Our specialized foundry combines cast iron sand casting with precision CNC machining and turning operations to deliver housing components that meet the most demanding specifications for dimensional accuracy, structural integrity, and performance reliability. This comprehensive approach provides manufacturers with finished components ready for immediate assembly in various mechanical systems.

Material Excellence and Performance Characteristics
We utilize high-grade gray iron (G2500-G3500) and ductile iron (GGG40-GGG60) specifically selected for housing applications requiring optimal mechanical properties and manufacturing efficiency. Our G3000 gray iron provides tensile strength of 300 MPa with exceptional compressive strength exceeding 1000 MPa, while ductile iron grades deliver enhanced mechanical properties including 400-600 MPa tensile strength and superior impact resistance. The materials demonstrate excellent vibration damping capacity – gray iron provides approximately 6-10 times greater damping than steel – significantly reducing noise transmission in operating equipment. All materials maintain dimensional stability across temperature ranges from -20°C to 350°C, with Brinell hardness of 180-250 ensuring excellent wear resistance at bearing and sealing surfaces.

Integrated Manufacturing Process
Our manufacturing begins with advanced green sand casting using automated molding systems that maintain dimensional accuracy within ±0.002 inches per inch for complex housing geometries. The casting process employs simulation-optimized gating and feeding systems to ensure sound metallurgical structure throughout the component. Controlled pouring parameters and real-time thermal monitoring prevent shrinkage defects in critical wall sections. Following casting, each housing undergoes precision CNC machining on vertical machining centers and CNC turning on lathes with chuck capacities up to 24 inches. The machining process maintains bore tolerances within ±0.0008 inches, surface flatness within 0.001 inches per foot, and positional accuracy within ±0.0005 inches for bolt hole patterns. Comprehensive quality verification includes CMM inspection, surface finish analysis, and pressure testing for sealed housings.

Precision Housing Applications

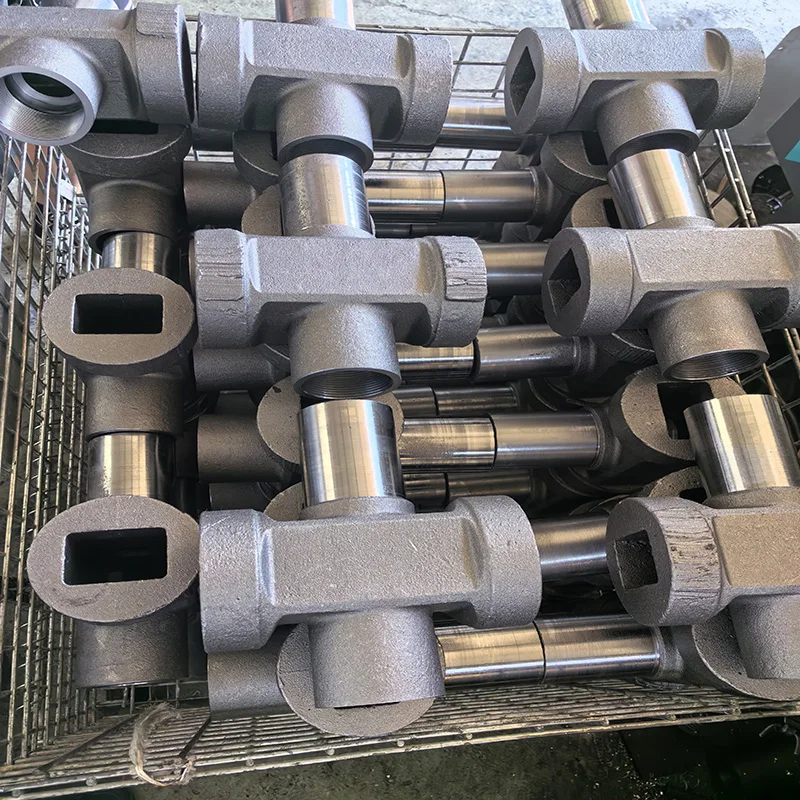

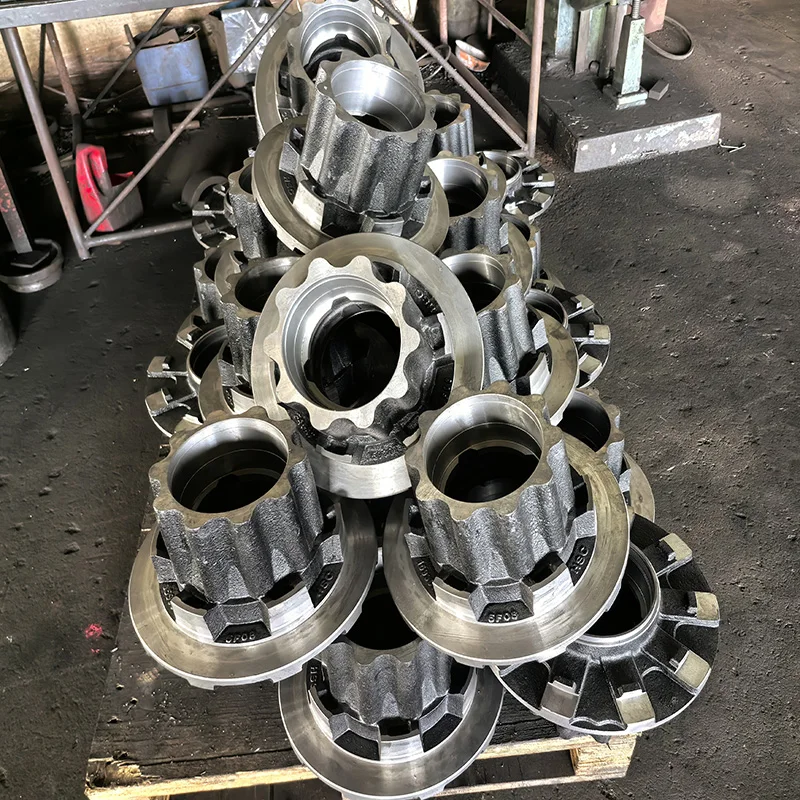

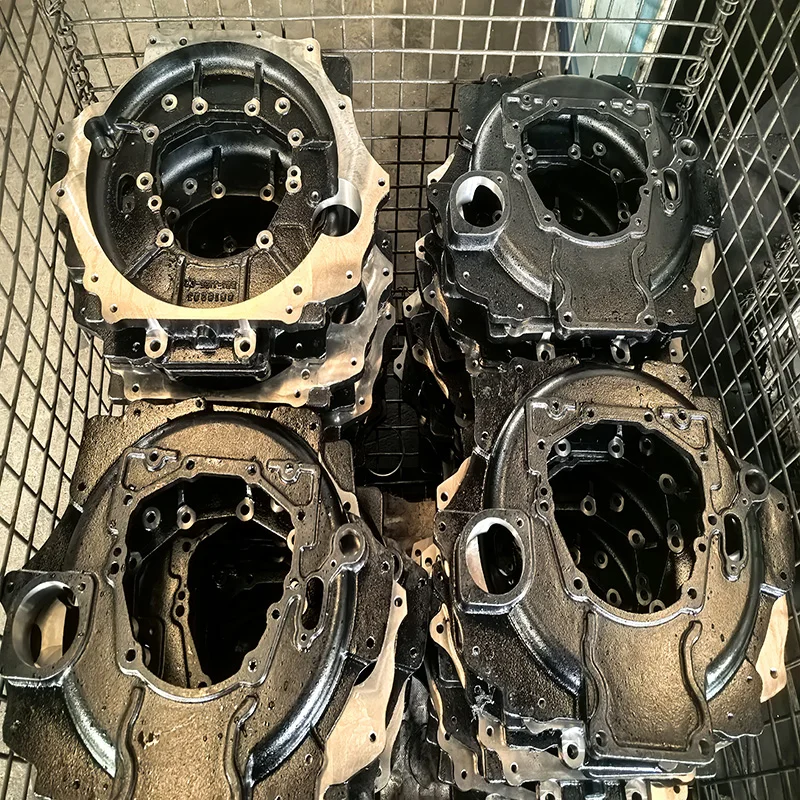

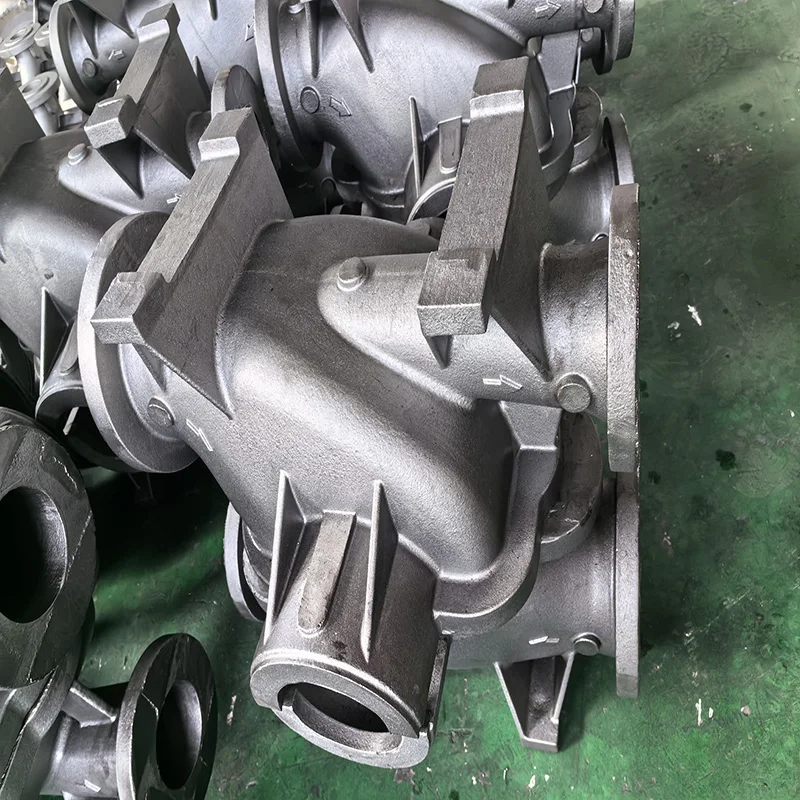

Our cast and machined iron housings serve critical functions across multiple industries including power transmission (gearbox housings, bearing enclosures), fluid handling (pump casings, valve bodies), industrial machinery (equipment frames, motor mounts), and automotive systems (transmission cases, differential carriers). The energy sector utilizes our components for generator housings, while the agricultural industry specifies our housings for implement gearboxes. Additional applications include compressor housings, reducer casings, and machinery enclosures where the combination of casting complexity and machining precision provides optimal solutions.

Partner with our foundry for cast iron housings that combine manufacturing expertise with precision engineering. Our integrated approach from pattern making to finished machining ensures components that reduce assembly time, enhance equipment performance, and provide long-term reliability across diverse industrial applications, supported by comprehensive quality documentation and technical validation.
