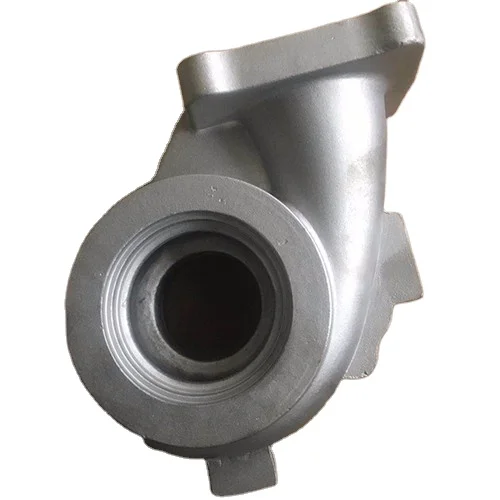

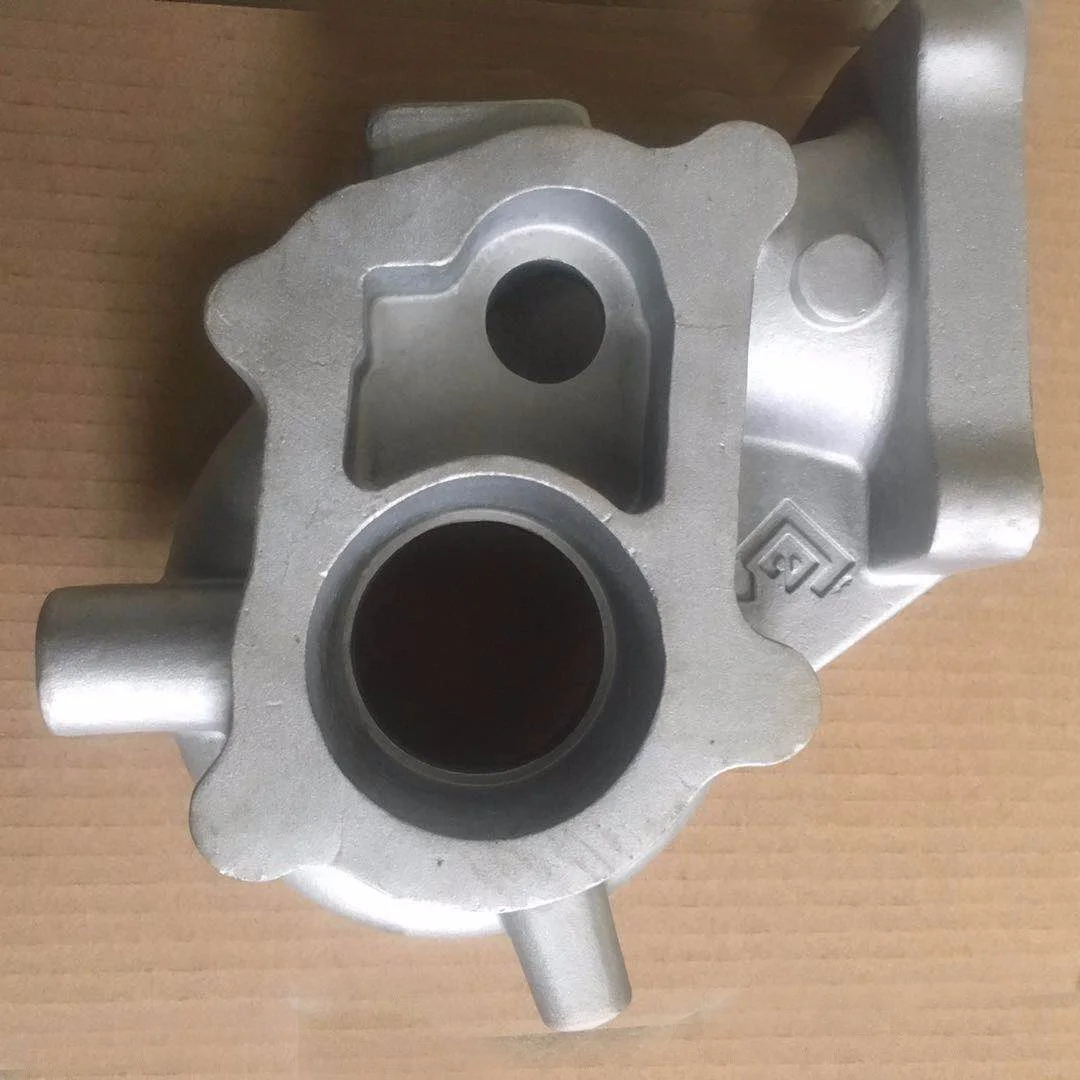

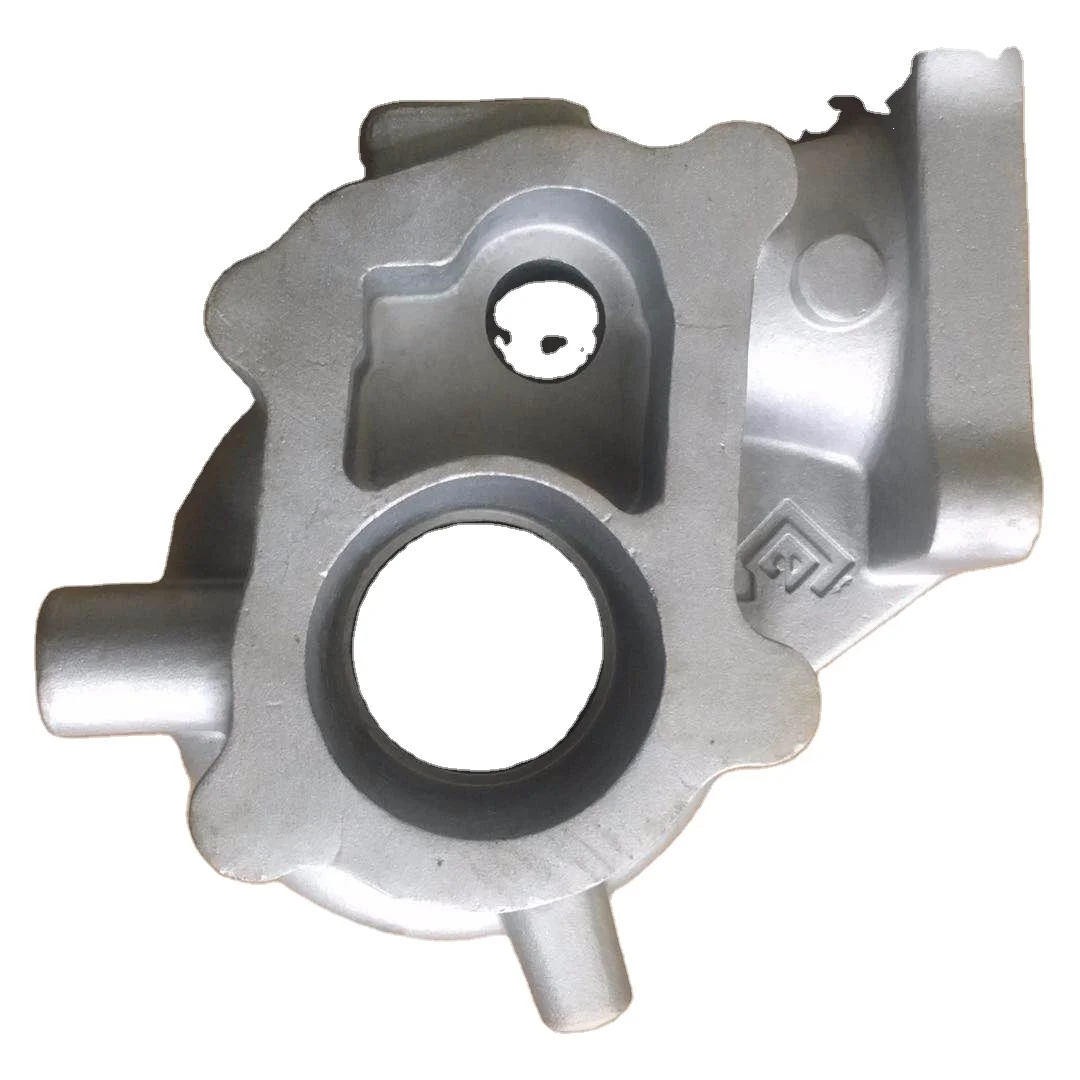

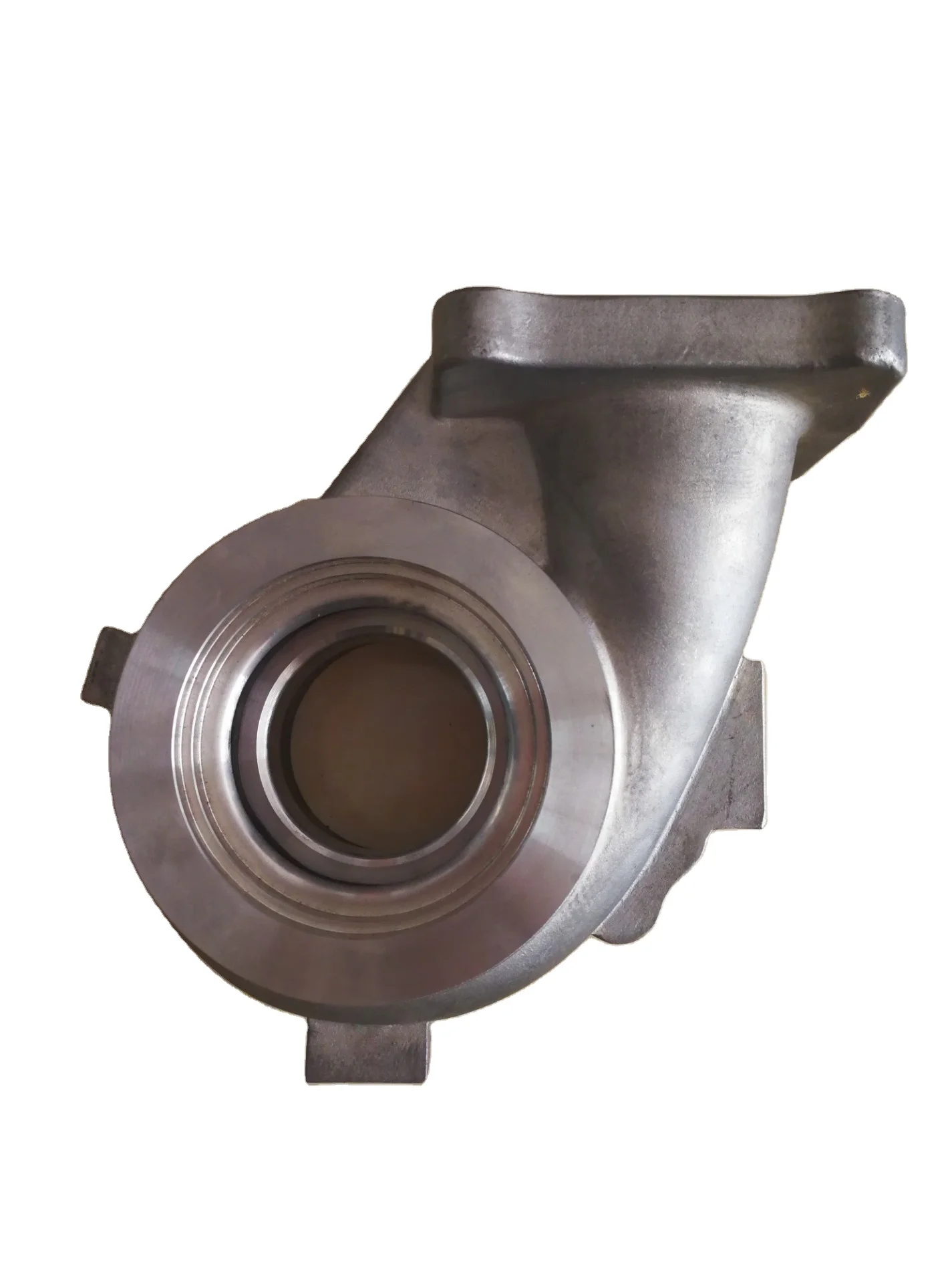

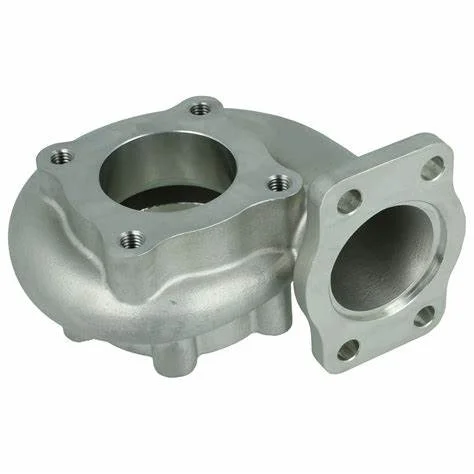

Stainless Steel 304 Casting Services-Turbocharger Turbine Housing

Stainless Steel 304 casting services provide optimal manufacturing solutions for turbocharger turbine housings, delivering exceptional performance in high-temperature automotive and industrial applications. Our specialized casting expertise combines material science excellence with advanced foundry technologies to produce durable, heat-resistant components that withstand extreme operating conditions while maintaining structural integrity.

Material Properties and Advantages

Stainless Steel 304 (UNS S30400) offers superior characteristics for turbocharger applications:

• Excellent high-temperature strength maintaining 80% yield strength at 500°C

• Outstanding oxidation resistance up to 870°C continuous service

• Tensile strength: 505 MPa minimum at room temperature

• Yield strength: 215 MPa minimum

• Elongation: 40% minimum in 2 inches

• Thermal expansion coefficient: 17.2 μm/m·°C (20-100°C)
  The material's chromium-nickel composition (18-20% Cr, 8-10.5% Ni) provides exceptional corrosion resistance against exhaust gases and environmental contaminants, while its austenitic structure ensures good fatigue resistance under thermal cycling conditions.

Advanced Casting Manufacturing Process

Our precision casting methodology ensures optimal component quality:

1. Pattern Design & Tooling: CAD-engineered wax patterns with controlled shrinkage allowances

2. Shell Building: Ceramic shell molding using zircon-based refractories for superior surface finish

3. Controlled Melting: Induction furnace melting at 1500-1550°C under protective atmosphere

4. Pouring Process: Vacuum-assisted pouring ensuring complete mold filling

5. Heat Treatment: Solution annealing at 1040-1120°C followed by rapid quenching

6. Precision Machining: CNC machining of critical interfaces and mounting surfaces

Technical Specifications for Turbocharger Applications

• Wall thickness control: ±0.5mm across complex geometries

• Surface finish: Ra ≤ 3.2μm on gas flow passages

• Dimensional accuracy: CT6-8 per ISO 8062 standards

• Pressure testing: 100% leak testing at 4-6 bar

• High-temperature validation: Thermal cycling tests from ambient to 800°C

Quality Assurance and Testing
Our comprehensive quality system ensures component reliability:

• Spectrochemical analysis for material verification

• Dye penetrant inspection for surface defect detection

• Radiographic examination for internal quality assurance

• Coordinate measuring machine (CMM) verification

• Pressure testing simulating operational conditions

Performance Advantages in Turbocharger Systems
SS304 turbine housings deliver distinct operational benefits:

• Superior thermal fatigue resistance extending service life

• Reduced thermal stress cracking under rapid temperature changes

• Excellent resistance to exhaust gas corrosion

• Maintained dimensional stability at elevated temperatures

• Compatibility with various exhaust system configurations

Industry Applications
Our SS304 casting services support multiple sectors:

• Automotive turbocharger systems for passenger and commercial vehicles

• Marine engine turbocharger applications

• Industrial turbine and compressor housings

• High-performance racing and specialty vehicles

• Agricultural and construction equipment turbo systems

The combination of SS304 material properties with precision casting techniques creates turbine housings that withstand the demanding conditions of turbocharger operation, providing reliable performance, extended service life, and consistent operation across diverse application environments. Our specialized casting services ensure each component meets the rigorous requirements of modern forced induction systems while maintaining cost-effectiveness and manufacturing efficiency.
