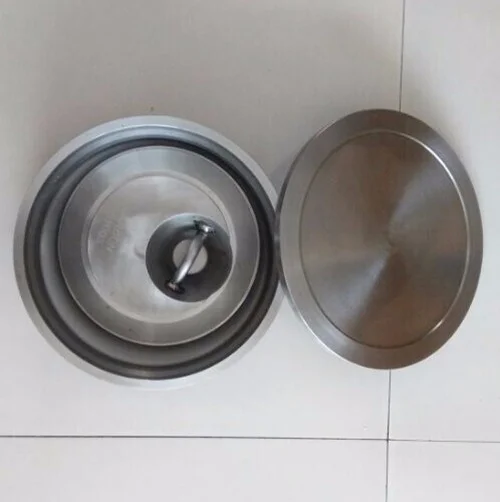

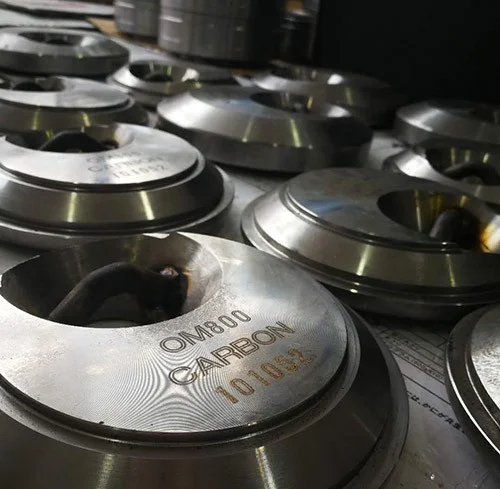

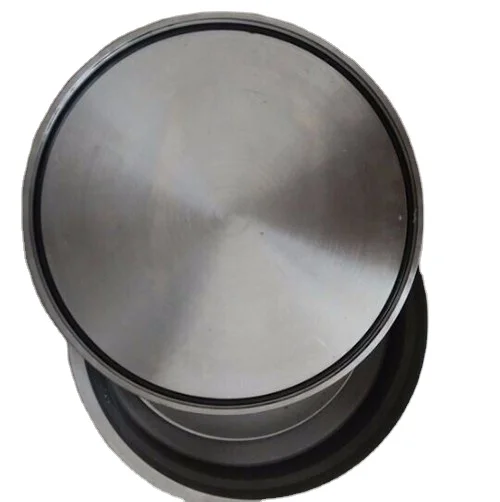

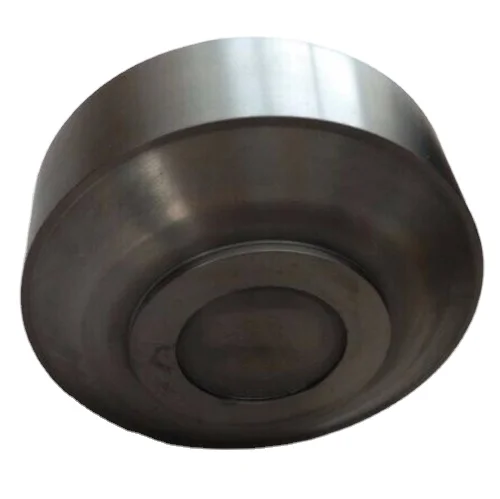

2000cc Laboratory Pulverizer Mill Grinding Dis Durable Casting Services Product

In laboratory sample preparation and material analysis, the 2000cc laboratory pulverizer mill represents essential equipment for consistent particle size reduction. The grinding disc, as the core component of these systems, requires exceptional durability, wear resistance, and geometric precision to ensure reproducible results across countless grinding cycles.

Advanced Material Selection and Properties
Our grinding disc casting services utilize specialized wear-resistant materials, primarily high-chromium cast iron (BTMCr20) and alloy tool steels, engineered to withstand the abrasive nature of various sample materials. These alloys demonstrate:

• Surface hardness: 58-65 HRC

• Impact toughness: ≥15 J/cm²

• Abrasion resistance: 3-5 times superior to conventional steel

• Compressive strength: ≥1500 MPa

The high-chromium content (18-22%) forms hard carbides within the martensitic matrix, creating a microstructure that resists both abrasive wear and impact fatigue. This material combination ensures extended service life while maintaining consistent grinding performance throughout the disc's operational lifespan.

Precision Manufacturing Process
The production of these critical components follows a rigorous manufacturing protocol:

1. Pattern Design & Tooling: CAD-engineered patterns accounting for solidification shrinkage and machining allowances

2. Shell Molding Process: Ceramic shell investment casting using zircon-based refractories for superior surface finish

3. Controlled Pouring: Vacuum-assisted casting in controlled atmosphere furnaces at 1580-1650°C

4. Heat Treatment: Multi-stage thermal processing including stress relief annealing, quenching, and double tempering

5. Precision Machining: CNC grinding of critical surfaces and grinding features to maintain dimensional accuracy within ±0.1mm

Technical Specifications

• Capacity: 2000cc standard chamber volume

• Disc diameter: 380-400mm (custom sizes available)

• Surface finish: Ra ≤ 1.6μm on critical surfaces

• Flatness: ≤0.05mm across grinding surface

• Parallelism: ≤0.08mm between opposing faces

• Hardness uniformity: ±2 HRC across working surfaces

Quality Assurance and Testing
Each grinding disc undergoes comprehensive verification:

• Dimensional inspection using CMM technology

• Ultrasonic testing for internal integrity

• Hardness mapping across critical surfaces

• Sample grinding tests for performance validation

• Metallographic analysis of microstructure

Application Versatility
These precision-cast grinding discs serve diverse laboratory and research applications:

• Geological sample preparation in mining and exploration

• Cement and raw meal analysis in construction materials

• Pharmaceutical material processing in R&D laboratories

• Agricultural soil testing and plant material analysis

• Environmental sample preparation for pollution monitoring

Performance Advantages
The integration of advanced casting techniques with specialized wear materials delivers distinct operational benefits:

• Extended service life reducing replacement frequency

• Consistent particle size distribution across batches

• Reduced cross-contamination between samples

• Lower operating costs through decreased maintenance

• Improved analytical accuracy through reproducible grinding

Our durable casting services for laboratory pulverizer mill grinding discs combine material science expertise with precision manufacturing, delivering components that withstand the demanding conditions of laboratory sample preparation while maintaining the accuracy and reliability essential for analytical processes.
