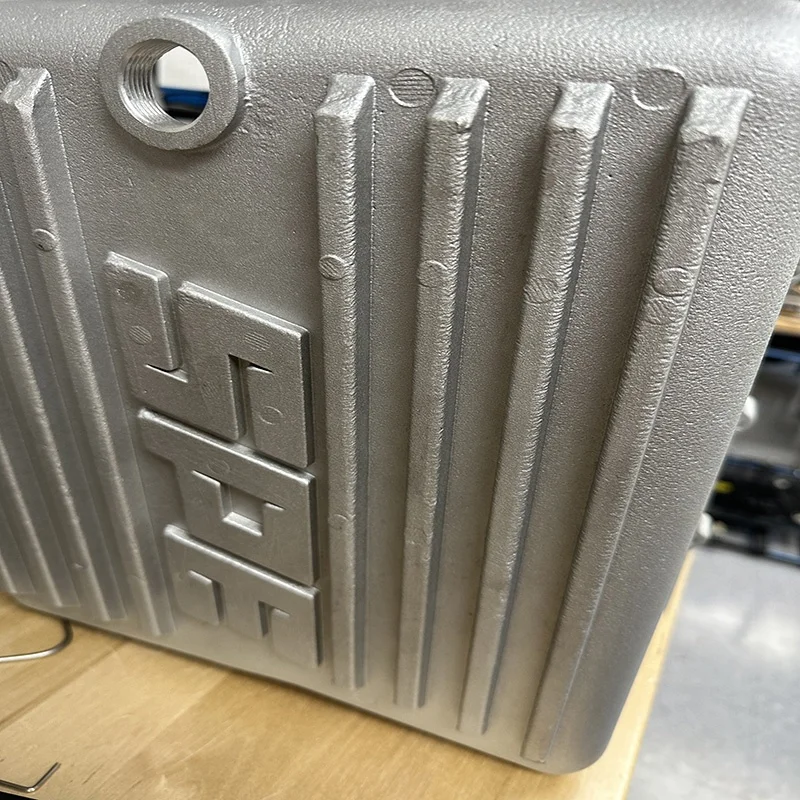

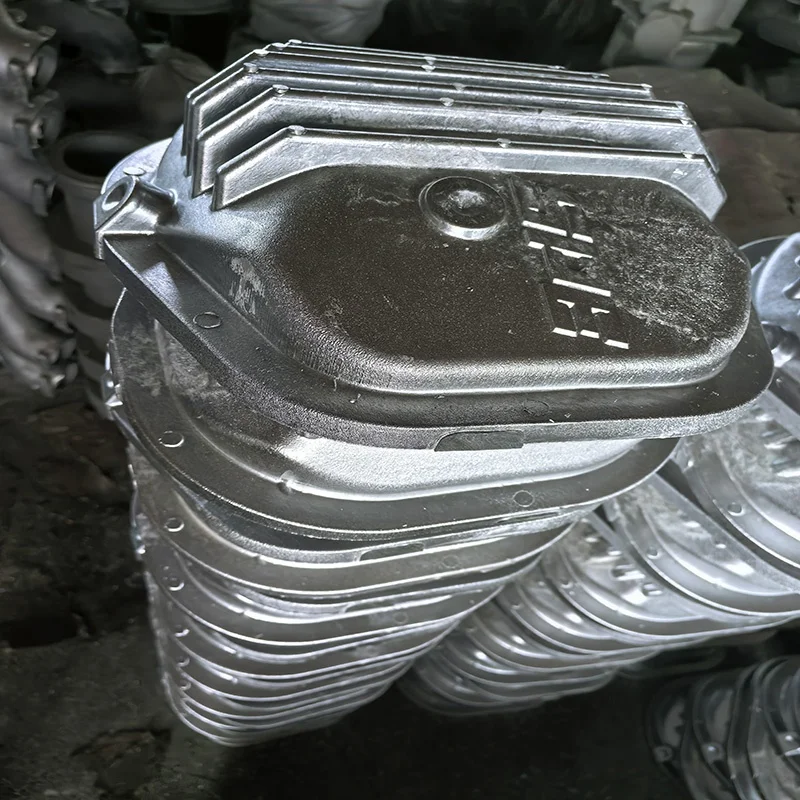

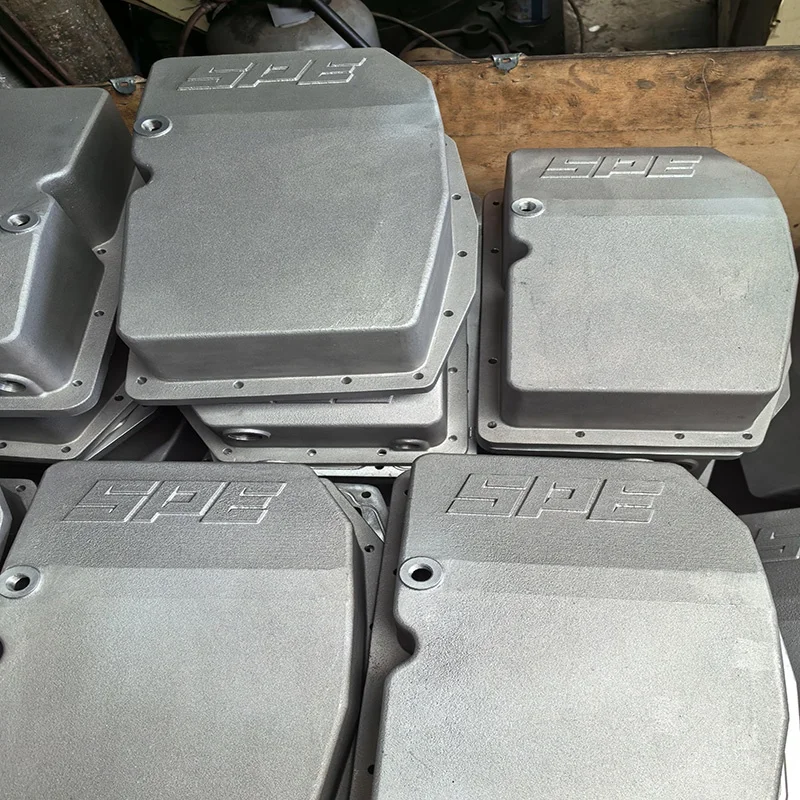

2001-2010 GM 6.6L Duramax Heavy-Duty Cast Aluminum Engine Oil Pan

2001-2010 GM 6.6L Duramax Heavy-Duty Cast Aluminum Engine Oil Pan

Overview
Recommended Products

For owners and technicians maintaining GM's legendary 6.6L Duramax diesel engines, the engine oil pan serves as a critical foundation for lubrication system integrity and engine longevity. Specifically engineered for 2001-2010 model years, this heavy-duty cast aluminum oil pan delivers superior durability and performance compared to conventional stamped steel designs. Manufactured to exact OEM specifications, it ensures perfect fitment and reliable service for LB7, LLY, LBZ, and LMM engine variants in commercial, agricultural, and heavy-duty transportation applications.

Material Excellence: Aerospace-Grade Aluminum

A356-T6 Aluminum Alloy: Delivering ultimate strength-to-weight ratio with excellent thermal conductivity
Precision Sand Casting: Ensuring uniform wall thickness (4-6mm) and optimal material density
Heat-Treated Construction: Solution treated and artificially aged to T6 temper for maximum hardness
Internal Baffling Design: Integrated turbulence-reducing baffles for consistent oil pressure

Advanced Manufacturing Process

Precision Casting Technology
- Computer-designed sand molds with optimized gating systems
- Controlled solidification process preventing porosity
- X-ray inspection for internal defect detection
CNC Machining Operations
- 5-axis machining of sealing surfaces within ±0.1mm flatness
- Precision threading for drain plug and sensor ports
- Surface finishing to Ra 3.2μm for optimal gasket sealing
Quality Validation
- Pressure testing to 45 PSI for leak-free guarantee
- Coordinate measurement machine verification
- Chemical composition certification per ASTM standards

Performance Advantages

Superior Heat Dissipation: Aluminum construction reduces oil temperatures by 15-20°C
Impact Resistance: Withstands road debris and off-road conditions
Corrosion Protection: Natural aluminum oxide layer prevents rust formation
Weight Reduction: 40% lighter than equivalent steel components
Dimensional Stability: Maintains seal integrity under thermal cycling

Technical Specifications

Capacity: 10-quart oil volume with proper sump design
Sealing Surface: Machined for OEM gasket compatibility
Drain Port: Standard 14mm threaded insert
Mounting Pattern: Exact OEM bolt hole configuration

Applications & Compatibility

2001-2004 GM Trucks (LB7 Engine)
2004-2005 Models (LLY Engine)
2006-2007 Applications (LBZ Engine)
2007-2010 Vehicles (LMM Engine)

Maintain your Duramax engine's performance with our heavy-duty cast aluminum oil pan. Designed for durability and precision fit, it's the ideal solution for replacement or upgrade applications. Contact us for availability and technical support.

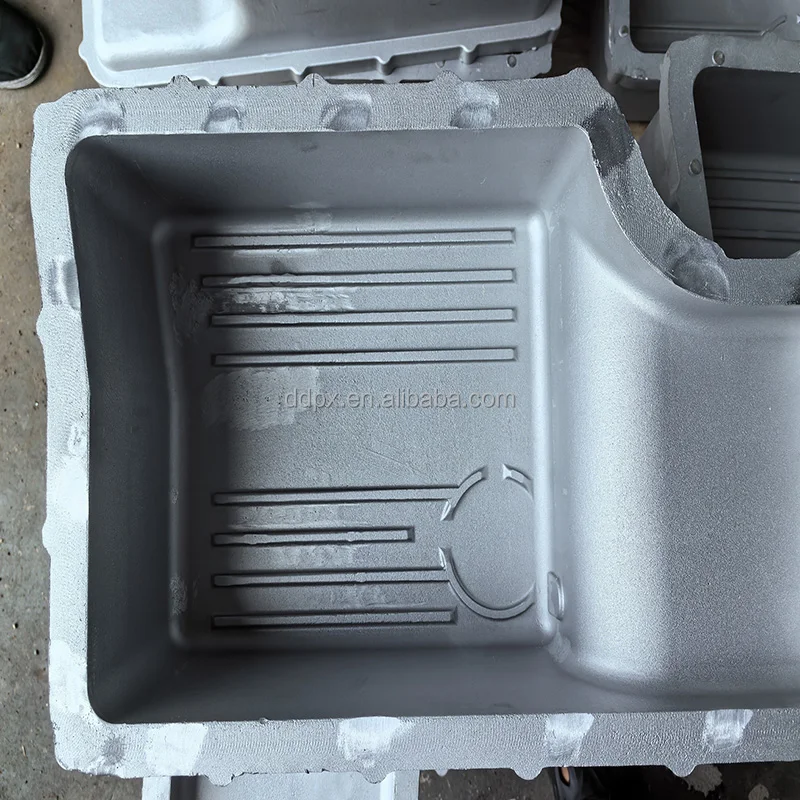

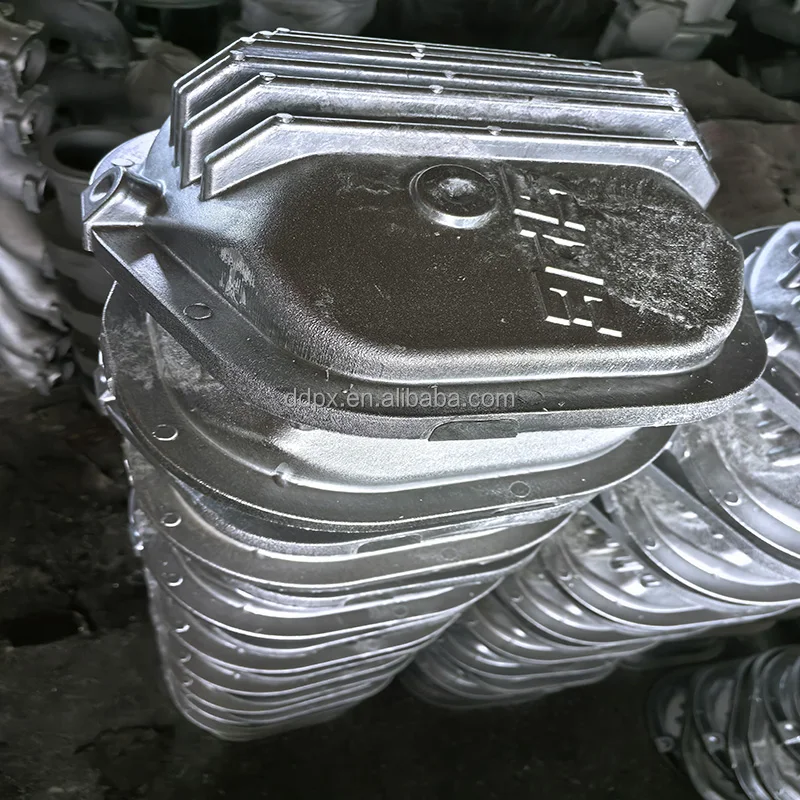

2001-2010 GM 6.6L Duramax Heavy-Duty Cast Aluminum Engine Oil Pan factory

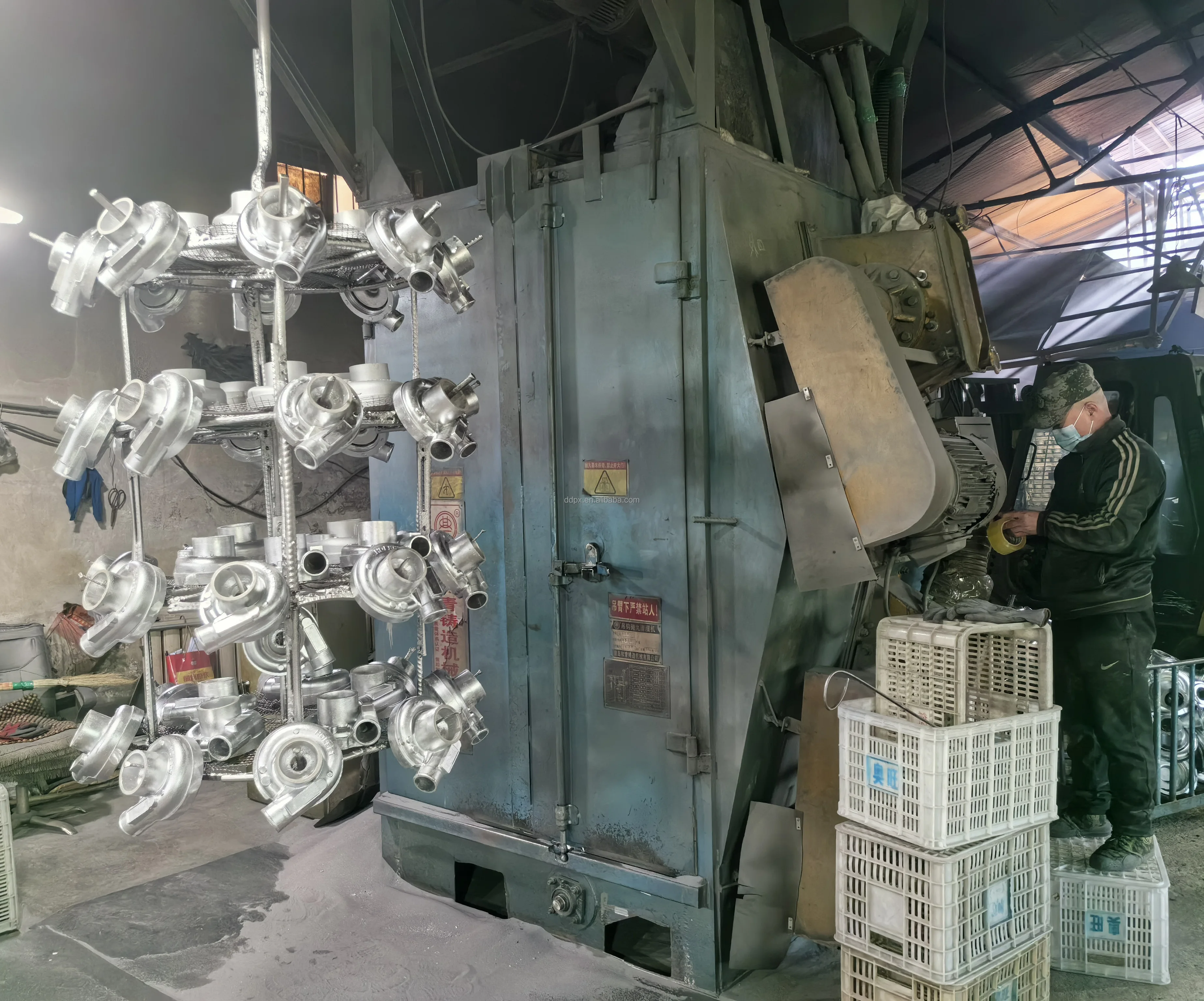

2001-2010 GM 6.6L Duramax Heavy-Duty Cast Aluminum Engine Oil Pan manufacture

Material	Aluminum,gray cast iron,ductile iron,stainless steel, copper, brass, galvinized etc.
Size	Customized
Surface treatment	Powder coating, electroplating, oxide,anodization
Technics	laser cut, bend, weld, stamp,casting,forging
Certification	ISO9001:2015
OEM	Accept
Drawing Format	3D/CAD/Dwg/IGS/STEP
Color	Customized
Application	Appliance, Auto, Building, Capital equipment, Energy, Instrumentation, Medical device, Telecommunications

2001-2010 GM 6.6L Duramax Heavy-Duty Cast Aluminum Engine Oil Pan details

Who We Are

Dandong Pengxin Machinery Co., Ltd., founded in 1958, is a private enterprise specializing in casting, machining, and assembly.
Spanning 66,000 m² with 40,000 m² of workshops, it has $40M in assets and 330 employees, including 46 technical staff. Annual capacity reaches 100,000 tons.

Equipped with advanced technologies like high-pressure molding and Japanese FBO Ⅲ production lines, it produces up to 30,000
tons/year. Facilities include 12-pulse electronic furnaces, CNC machines, and a quality inspection center with precision
instruments.

Service

Pre-sales

Get your purchasing needs → Confirm order drawing→ Give customized solution → Offer a quotation → Make the pattern→ Provide samples→ Bulk production after samples approve the test.

On Sale

Drawing Control → Pattern Control → Raw Material Control → Molding Sand Control → Pouring Process Control → Raw Casting & Machining Control →Other Requirement Control→ Packing & Delivery Control.

After-Sales

Proactively get your feedback→ Engineering team gets involved→Casting engineer conducts metallographic and spectral tests based on the inventory test rods→Machining engineer's CMM inspection is based on the inventory samples→Provide solutions based on the test results→Welcome to contact us for your customized solution.

R&D

Our Company Owns A Provincial Level Technology Center, Plus A 15 Person R&D Team, With average 20+ Years Of R&D Experience. We can help customers design for free according to their requirements, or produce according to the drawings or samples.

2001-2010 GM 6.6L Duramax Heavy-Duty Cast Aluminum Engine Oil Pan supplier

Production Capacity

100,000 tons+Annual production capacity for Iron.
30,000 tons+Annual production capacity for Aluminum.
80,000 tons+Annual production capacity for Steel.
4000+Mold develop production.

Quality Control

At Pengxin-Casting, process control begins as early as in the planning and development phase of the products. We support our customers to perform all required tests and inspections in a laboratory. It goes without saying that our plants are certified according to ISO 9001 and IATF16949 in line with a validated quality management. As we strive to accomplish our zero-error policy, you can rely on the following process control measures: Drawing Control → Pattern Control → Raw Material Control → Molding Sand Control → Pouring Process Control → Raw Casting & Machining Control →Other Requirement Control→ Packing & Delivery Control.

Pattern Control

We simulate feeding syetem to check the pattern desgin from the filling process and material solidification,In this way, we can shorten the mold development cycle, reduce the number of mold trials and improve product quality.The software we use includes ‌Abaqus,‌Moldflow and Moldex3D,simulate feeding system, reduce casting defects and improve efficiency.
