Investment Casting (Lost Wax): The Complete Technical Guide to the Precision Casting Process

Meta Description: A complete technical guide to investment casting (lost wax). Learn the 10-step process from wax injection to finished part, ceramic shell systems, achievable tolerances and surface finishes, design rules, material compatibility, and quality control.

---

Investment casting — also called lost-wax casting or precision casting — produces metal components with the highest dimensional accuracy and best surface finish of any casting process. Complex shapes that would be impossible or uneconomical to machine from solid are produced as near-net castings, then finish-machined only where functional precision demands it.

From turbine blades that survive jet-engine temperatures to valve bodies, pump impellers, and automotive components, investment casting is the process of choice when accuracy, detail, and material integrity matter most.

This guide explains the complete investment casting process, its capabilities and limitations, design rules, and quality control — so engineers can specify it correctly and buyers can evaluate suppliers rigorously.

---

1. Process Overview: Why "Lost Wax"?

The name comes from the core principle: a disposable wax pattern of the part is created, coated in ceramic to form a shell, and the wax is then melted out ("lost") before metal is poured into the resulting cavity. Because the pattern is consumed, there is no mold parting line — every surface of the casting is formed by the ceramic shell, which is why investment castings reproduce detail so faithfully.

The 10-Step Process

---

2. Step-by-Step Process Detail

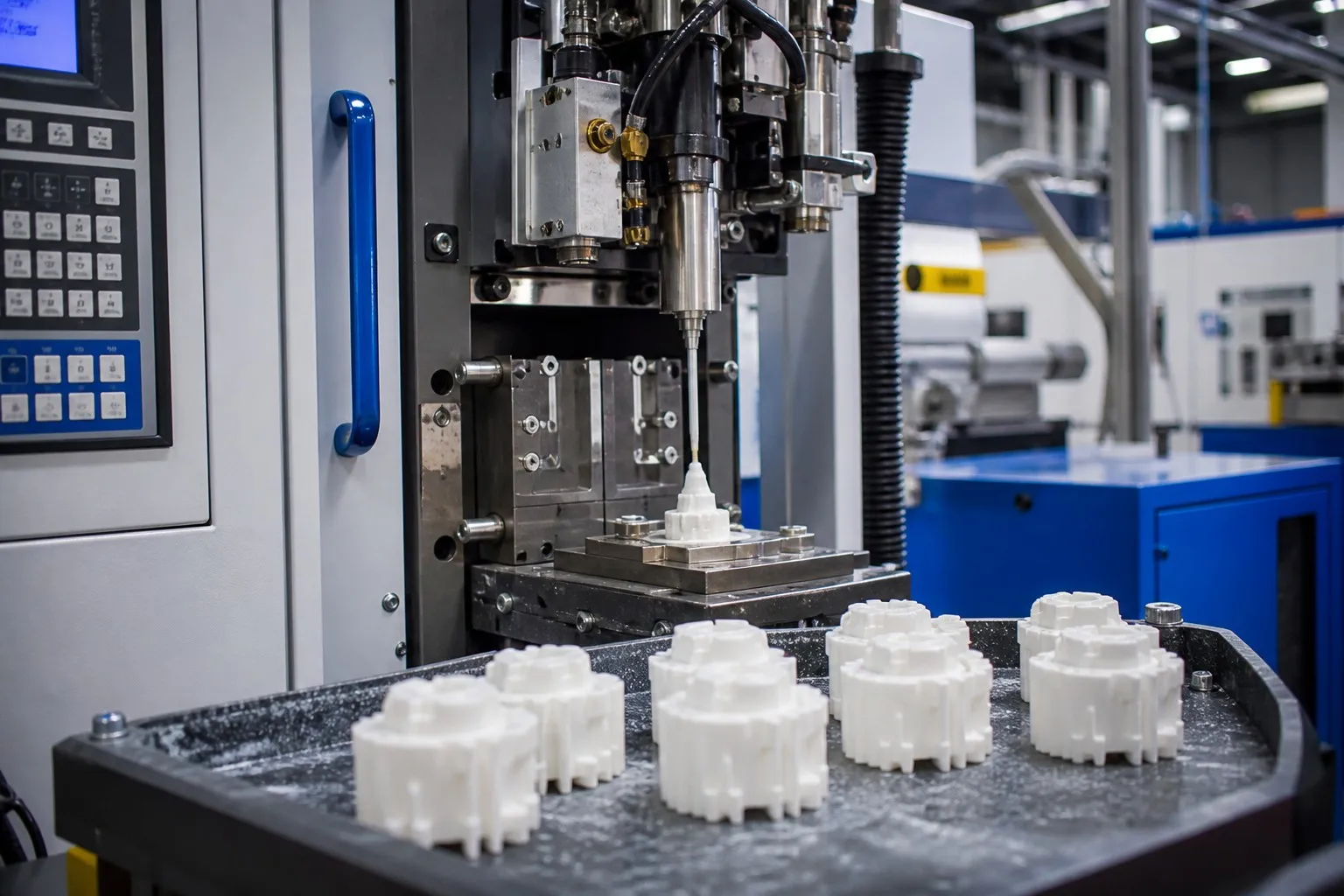

2.1 Tooling and Wax Injection

• Dies are machined from steel or aluminum, with shrinkage allowance (typically 1.5-2.5% depending on alloy and geometry)
• Wax is injected under pressure (typically 10-100 bar) into temperature-controlled dies
• Wax formulations balance strength (for handling), dimensional stability, and clean burnout
• Injection parameters (pressure, temperature, cooling time) directly control pattern quality

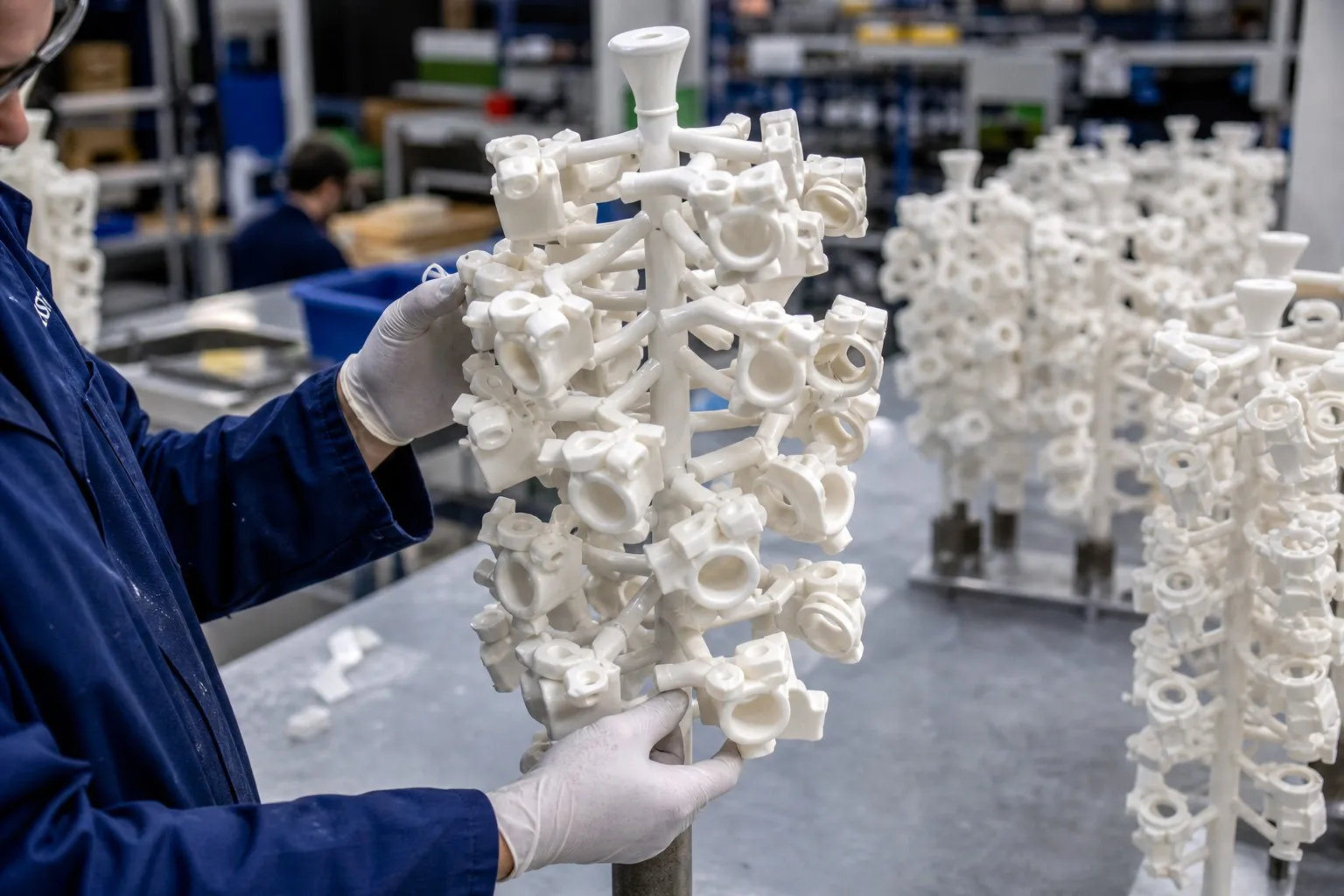

2.2 Pattern Assembly (Tree Building)

Individual wax patterns are welded to a central wax sprue with a hot knife or resistance welder, forming a tree that allows many parts to be cast in one pour.

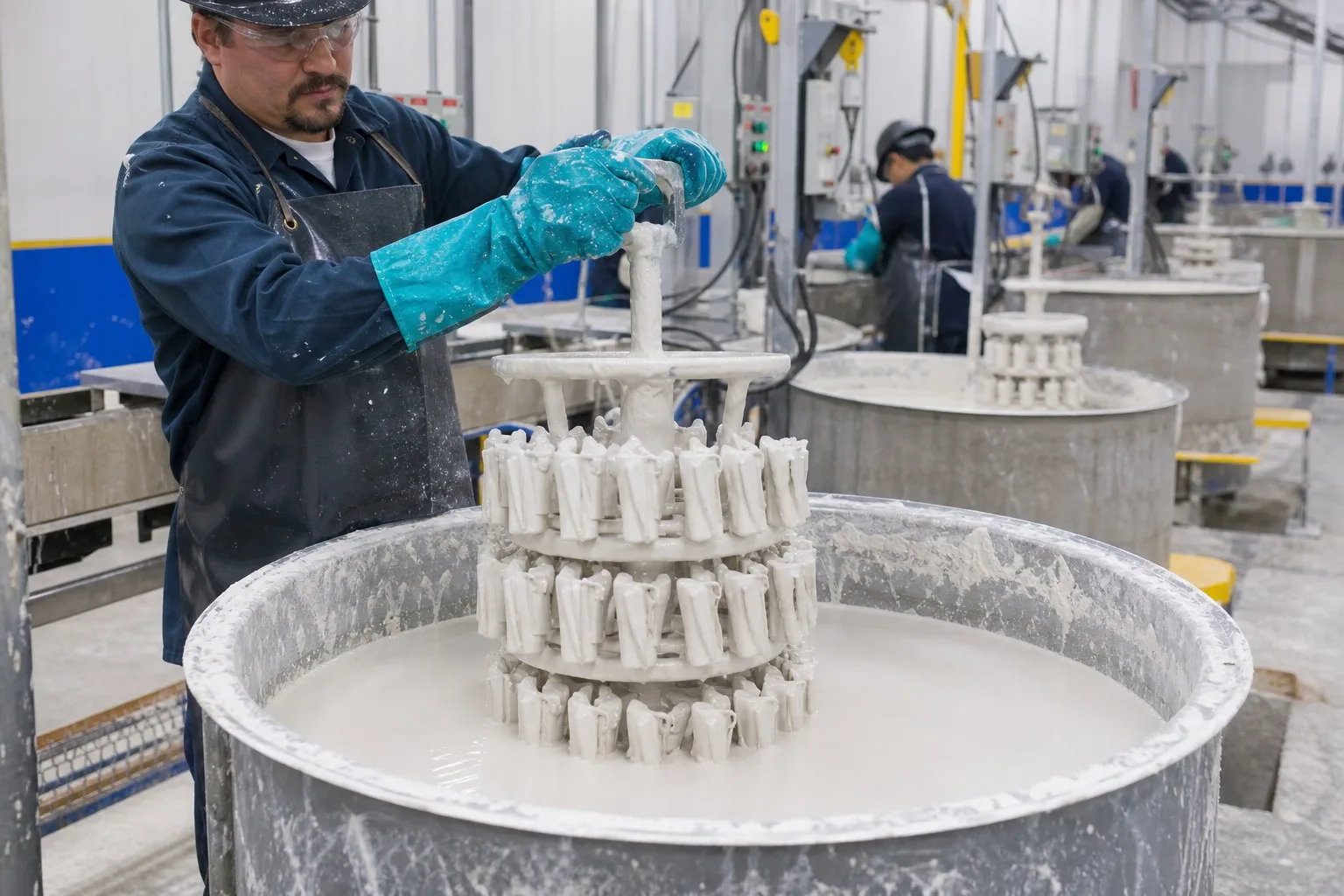

2.3 Ceramic Shell Building

The shell is the mold — its quality determines casting quality:

Each coat is applied by dipping, draining, and stuccoing, then air-dried. Total shell thickness: 5-10 mm. Drying between coats is critical — trapped moisture causes shell failure during pouring.

2.4 De-Waxing

2.5 Firing

The shell is fired at 900-1,100 °C to:

• Remove residual wax and binders completely
• Sinter the ceramic to its final strength
• Preheat the shell for pouring (reduces thermal shock)

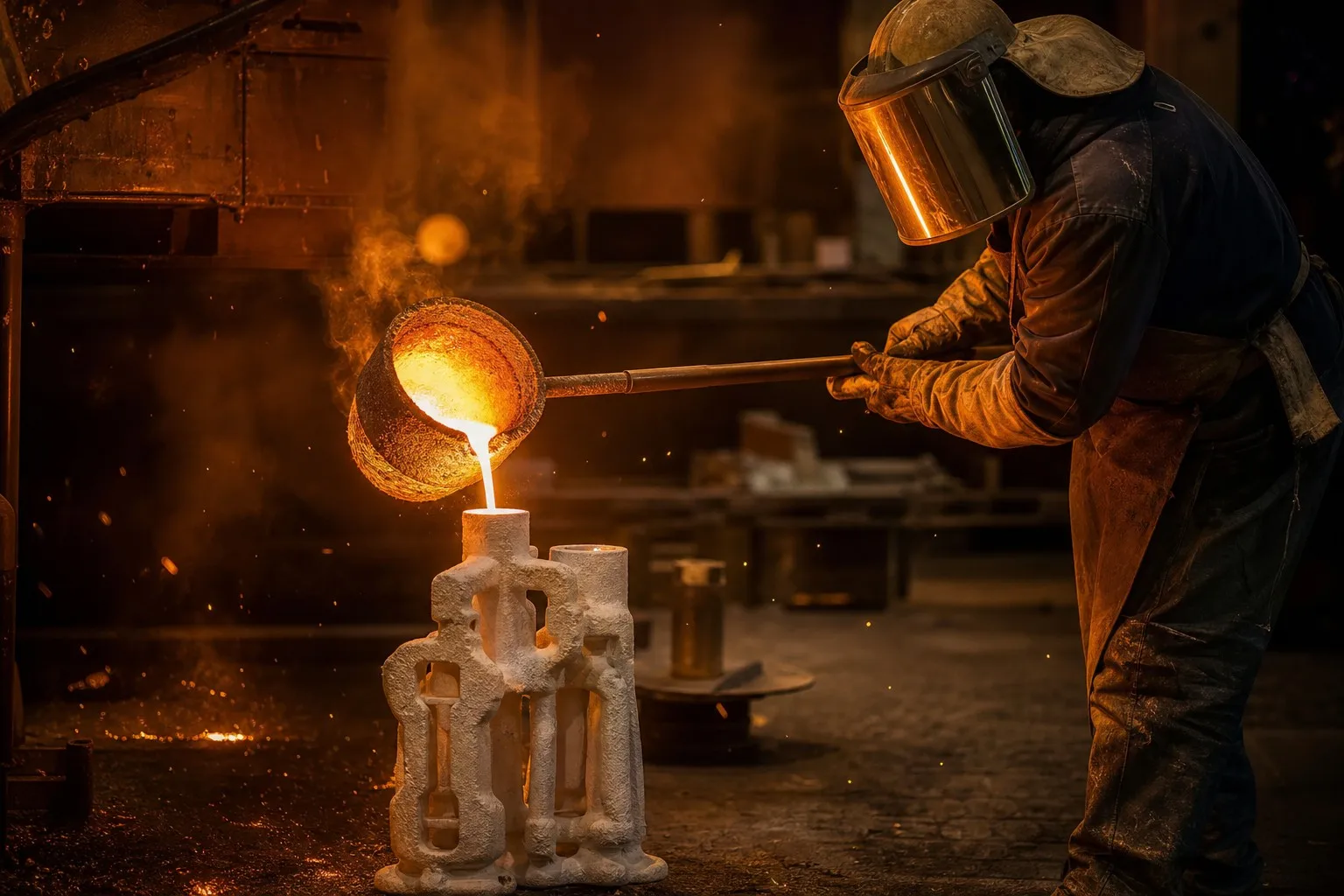

2.6 Pouring

Metal is poured into the hot shell — either statically, under vacuum (for reactive alloys like titanium), or by centrifugal force for thin sections. Pouring temperature and shell preheat are matched to the alloy:

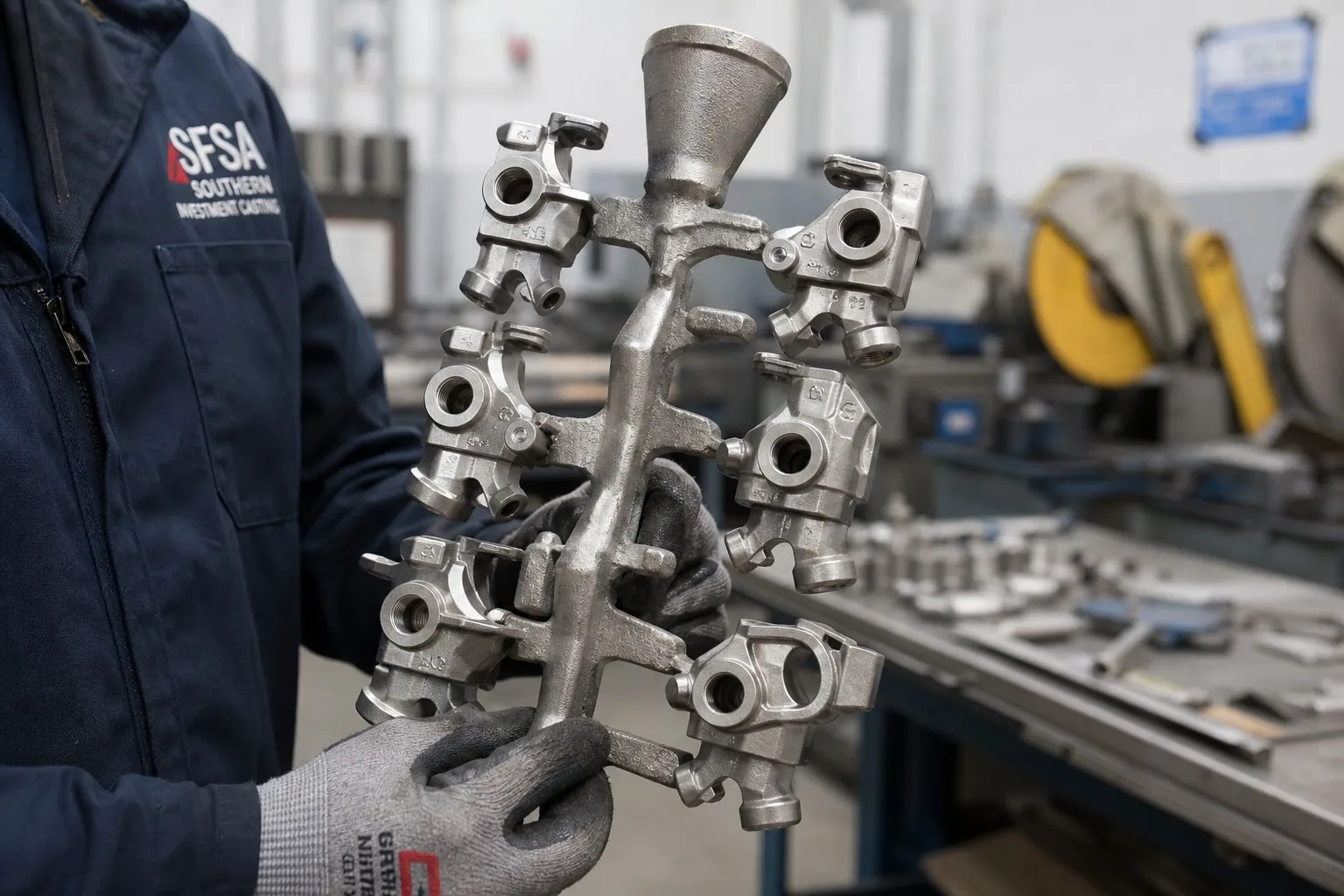

2.7 Knockout and Finishing

• Knockout: mechanical vibration or water blasting removes the shell
• Cut-off: runners and gates removed by abrasive saw or band saw
• Grinding: gate stubs ground flush
• Blasting: shot or grit blasting cleans surfaces
• Heat treatment: as required by alloy (normalizing, hardening, solution annealing)
• Straightening: where required, after heat treatment

---

3. Capabilities: Tolerances, Surface Finish, and Size

3.1 Dimensional Accuracy

Hole diameters can be cast directly when the hole depth does not exceed ~1.5-2× the diameter (see Section 5).

3.2 Surface Finish

3.3 Size and Weight Range

---

4. Material Compatibility

Investment casting can handle nearly every castable alloy:

---

5. Design Rules for Investment Casting

5.1 Wall Thickness

• Uniform walls of 2-6 mm are ideal
• Minimum 1 mm for steel, 0.5-1.5 mm for aluminum/superalloys (small areas)
• Transitions: keep gradual; abrupt changes cause shrinkage defects

5.2 Holes and Cores

5.3 Tolerances and Draft

• Investment casting does not need draft (no pattern withdrawal) — vertical walls are castable
• Spec tight tolerances only where functionally required; every ±0.1 mm costs money
• Machining allowance: 0.5-1.5 mm on features that must be machined

5.4 Ribs, Bosses, and Lettering

• Ribs: minimum 1.5-2 mm thick, with fillet radii
• Bosses: height ≤ 2× diameter; avoid isolated heavy sections
• Lettering and logos: cast-in with minimum feature size ~0.5 mm

5.5 Gating and Feeding

The gate location is the designer's hidden constraint — it leaves a witness mark. For functional sealing surfaces, specify gate location preference early. Thick sections require risers that add cost and machining.

---

6. Cost Drivers

When investment casting wins economically:

• Complex geometry that would require extensive machining from bar or forging
• Small parts (0.05-5 kg) where material yield matters
• Stainless and specialty alloys where machining cost is high
• Volumes of 500-50,000 parts/year

When it loses:

• Simple geometry better served by sand casting
• Very large parts (beyond ~50 kg)
• Extremely high volumes better served by die casting (low-melting alloys)

---

7. Quality Control

7.1 Dimensional Verification

• First article: full CMM layout against the 3D model
• In-process: gauge checks and periodic CMM sampling
• Statistical process control on critical dimensions

7.2 Metallurgical Verification

• Chemical analysis per heat (spectrometer)
• Mechanical properties: tensile, yield, elongation, hardness
• Microstructure evaluation where specified (e.g., grain size for superalloys)

7.3 NDT

7.4 Traceability

Heat number, pattern tree number, and operator records follow each batch. Aerospace and medical applications require full genealogy: every part traced to its heat, shell batch, and inspection records.

---

8. Common Investment Casting Defects

---

9. Investment Casting vs. Other Processes

---

10. Sourcing Investment Castings: Supplier Evaluation

---

Conclusion

Investment casting occupies a unique position in manufacturing: it delivers the geometry of a precision component at the cost of a casting. For engineers, mastering its capabilities — thin walls, complex internals, fine surfaces, and near-net accuracy — opens design freedom that machining from solid can never match. For buyers, the process demands a partner who controls wax, shell, melting, and inspection with equal rigor.

Dandong City Pengxin Machinery Co., Ltd. integrates investment casting with its sand and shell mold capabilities, supporting small precision components and large heavy castings under one roof — with CNC machining, heat treatment, NDT, and full documentation. From pump impellers and valve bodies to turbocharger components, our engineers apply the right process to every part.

Send us your part — we will tell you honestly whether investment casting is the right answer, and prove it with a first article.
