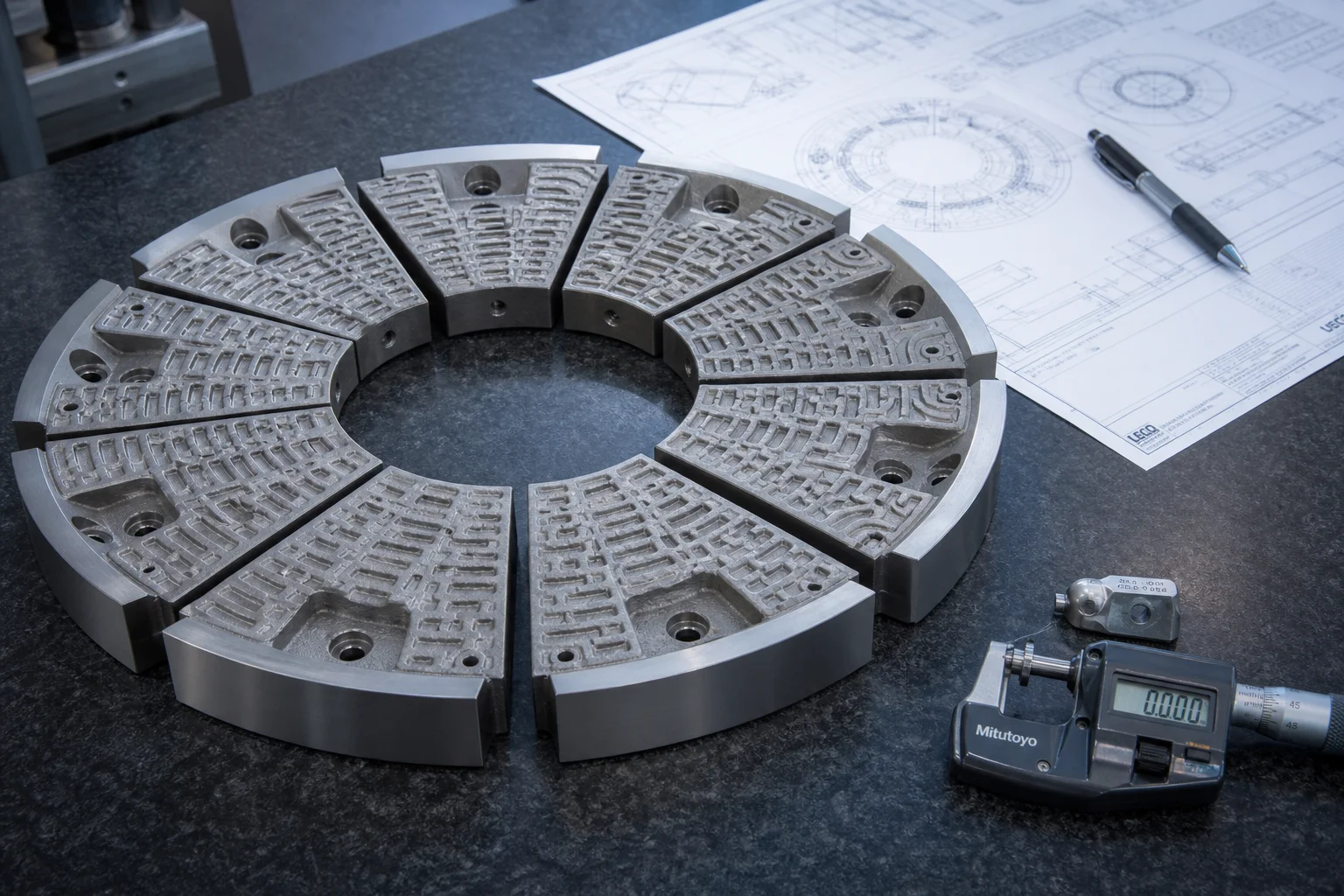

Pulp, Paper & Biomass Refiner Disc Segment Castings: High-Martensitic Stainless Steels, Bar Micro-Geometry, and Precision Finishing

Meta Description: A complete engineering guide to refiner disc segment castings for pulp, paper, MDF, and biomass thermo-mechanical pulping (TMP). Learn alloy metallurgy (modified high-carbon martensitic stainless steel ~AISI 440C mod / DIN 1.4125), bar-and-groove precision tooling, heat treatment to 56-62 HRC, and dynamic balancing.

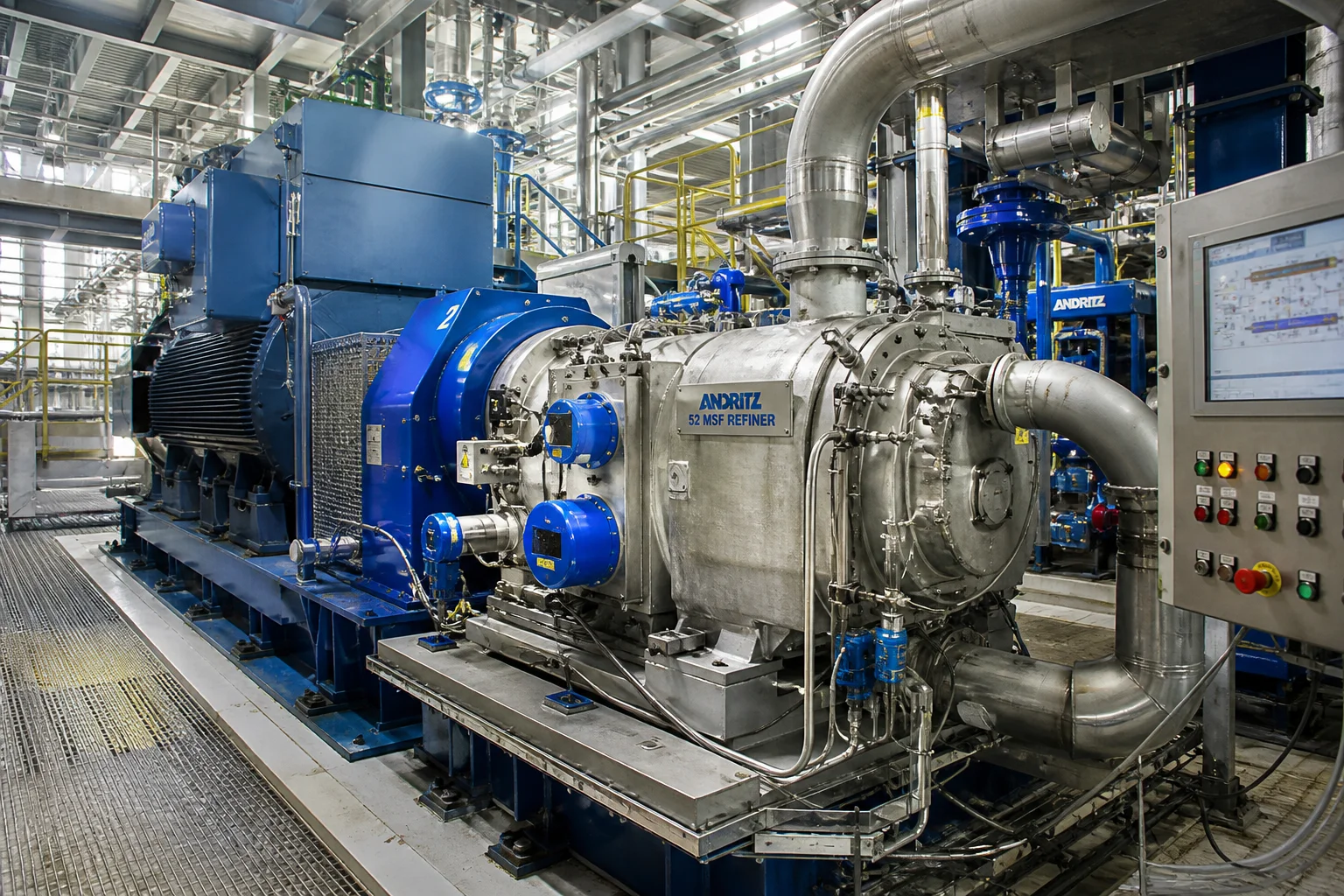

In thermo-mechanical pulping (TMP), chemical-thermo-mechanical pulping (CTMP), medium-density fiberboard (MDF) manufacturing, and biomass refining, refiner disc segments operate at the thermodynamic epicenter of fiber processing. Operating inside pressurized refiner housings at rotational speeds up to 1,800 RPM and peripheral tip velocities exceeding 200 m/s, opposing stator and rotor refiner plates are separated by an intense fiber-slurry gap of only $0.25\text{ mm–}0.75\text{ mm}$0.25 mm–0.75 mm.

Under these violent conditions, refiner plates endure a severe combination of high-velocity abrasive fiber sliding, intense cyclic shear forces, cavitation shock waves, corrosive steam chemistry ($pH\text{ 3.5–}8.5$pH 3.5–8.5), and extreme thermal cycling ($120\text{ °C–}185\text{ °C}$120 °C–185 °C).

If a casting suffers from bar rounding, micro-spalling, or plate warping, the refiner’s specific energy consumption (SEC) escalates drastically, causing fiber cutting, pulp freeness loss, and premature machine shutdown.

This engineering guide provides an exhaustive analysis of refiner segment metallurgy, bar-and-groove tooling precision, vacuum/induction melting protocols, heat treatment for edge retention (56–62 HRC), CNC back-face machining, and dynamic balancing procedures.

1. Operating Environment & Functional Degradation of Refiner Plates

Refiner segments must maintain crisp, razor-sharp bar edges throughout hundreds of operating hours under continuous three-body abrasive and cavitation attack:

                     ┌──────────────────────────────────────────────┐
                     │ High-Pressure Steam & Slurry (130 °C - 180 °C)│
                     └──────────────────────┬───────────────────────┘
                                            │
        ┌───────────────────────────────────┼───────────────────────────────────┐
        ▼                                   ▼                                   ▼
┌───────────────────────────────┐ ┌───────────────────────────────┐ ┌───────────────────────────────┐
│ High-Shear Fiber Abrasion     │ │ Cavitation Pitting Shock      │ │ Plate Warping & Parallelism   │
│ (Wood lignin, silica sand,    │ │ (Vapor collapse in            │ │ (Loss of micron-level gap     │
│  ash particles rounding bars) │ │  sub-millimeter bar channels) │ │  uniformity across disc)      │
└───────────────────────────────┘ └───────────────────────────────┘ └───────────────────────────────┘

Key Degradation Mechanisms:

1. Bar Leading-Edge Rounding: As raw wood chips and fiber slurries pass across the breaker bars into the fine refining zone, mineral grit and hard fiber bundles round the bar leading edges. Rounded edges switch the refining mechanism from fiber fibrillation (shear) to fiber crushing (compression), spiking electrical power consumption by up to $30\mathrm{\%}$30%.
2. Groove Dam Cavitation Erosion: Steam escaping radially through the plate grooves implodes against subsurface dams, eroding groove floors and causing bar wall collapse.
3. Corrosive Leaching: Acidic wood extractives (formic acid, acetic acid, wood pitch) attack unpassivated grain boundaries in standard carbon or low-alloy steels.

2. Metallurgical Alloy Hierarchy for High-Performance Refiner Plates

To survive this multi-factor wear environment, foundries deploy specialized High-Carbon Modified Martensitic Stainless Steels with targeted nickel, molybdenum, and vanadium additions:

The Metallurgical Balance: Carbides + Matrix Toughness

• Chromium Carbides ($M_7{C}_3$M7​C3​ and $M_{23}{C}_6$M23​C6​): Ultra-hard carbide particles ($1,600\text{–}1,800\text{ HV}$1,600–1,800 HV) resist micro-cutting from abrasive silica particles embedded in raw wood chips.
• Tempered Martensite Matrix with Nickel: Adding $1.5\mathrm{\%}\text{–}2.5\mathrm{\%}$1.5%–2.5% Nickel to a high-carbon $17\mathrm{\%}\text{ Cr}$17% Cr stainless steel refines the prior austenite grain size and provides matrix impact toughness ($\ge 12\text{ J}$≥12 J unnotched), completely preventing catastrophic bar clashing fractures.

3. Tooling Engineering & Precision Bar-and-Groove Casting

Refiner disc segments feature complex micro-hydraulic topologies: hundreds of radial or angled bars with widths down to $1.0\text{ mm–}2.5\text{ mm}$1.0 mm–2.5 mm, groove depths of $4.0\text{ mm–}10.0\text{ mm}$4.0 mm–10.0 mm, subsurface steam dams, and variable draft angles.

┌────────────────────────────────────────────────────────────────────────┐
│ 1. 3D Precision Master Tooling & Aluminum Core Boxes                   │
│    • High-speed CNC micro-machined tooling with sub-micron cutter radii│
├────────────────────────────────────────────────────────────────────────┤

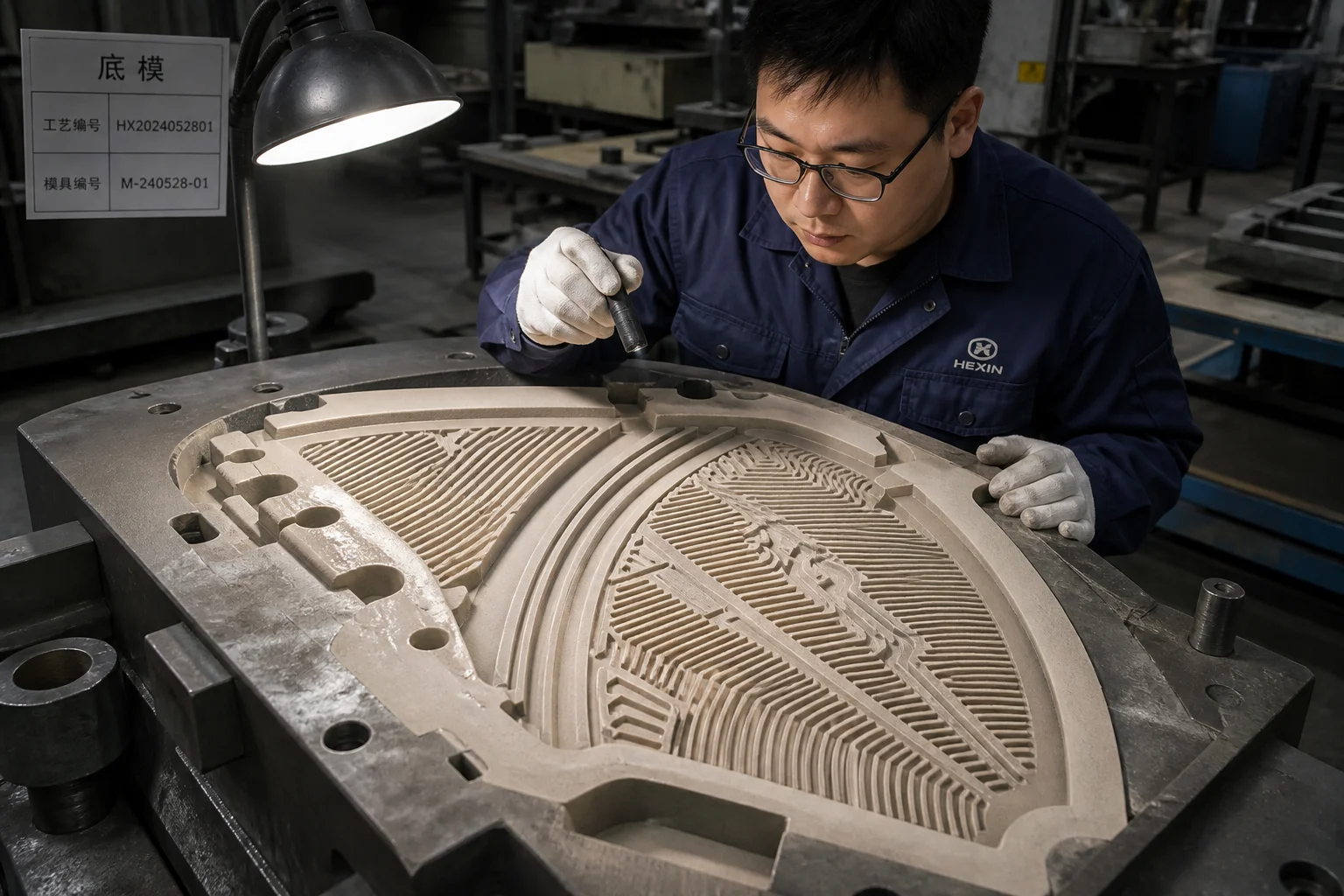

│ 2. Automated Fine-Grain Ceramic / Silica Shell Molding                 │
│    • Ultra-fine zircon/silica refractory facing delivers Ra 1.6–3.2 µm │
│    • Prevents sand grain burn-in within 1.0 mm bar grooves             │
├────────────────────────────────────────────────────────────────────────┤
│ 3. Inert Induction Melting with Deoxidation Protocol                   │
│    • Strict control of trace elements; zero macro-inclusions in bars   │
├────────────────────────────────────────────────────────────────────────┤
│ 4. Directional Bottom Gating with Ceramic Filters                      │
│    • Clean, laminar metal fill across thin bar teeth without cold shuts│
└────────────────────────────────────────────────────────────────────────┘

4. Heat Treatment for Maximum Edge Retention (56–62 HRC)

To achieve the optimal balance of wear hardness and impact toughness, high-carbon martensitic stainless steel segments undergo a dedicated multi-stage heat treatment:

As-Cast State: Coarse Austenite + Eutectic Carbides
                   │
                   ▼
┌────────────────────────────────────────────────────────┐
│ Austenitizing: 1,020 °C – 1,060 °C (Vacuum/Inert Gas) │
│ (Fully dissolves secondary carbides into solid matrix) │
└──────────────────┬─────────────────────────────────────┘
                   │
                   ▼  Forced Gas / Warm Oil Quench
┌────────────────────────────────────────────────────────┐
│ Quench to Form High-Hardness Tetragonal Martensite     │
│ (As-quenched hardness reaches 62–64 HRC)               │
└──────────────────┬─────────────────────────────────────┘
                   │
                   ▼
┌────────────────────────────────────────────────────────┐
│ Sub-Zero Cryogenic Treatment (-70 °C to -80 °C)        │
│ (Transforms retained austenite to prevent distortion)  │
└──────────────────┬─────────────────────────────────────┘
                   │
                   ▼
┌────────────────────────────────────────────────────────┐
│ Precision Double Tempering (220 °C – 280 °C)           │
│ (Relieves quenching stress; locks in 58–62 HRC)        │
└────────────────────────────────────────────────────────┘

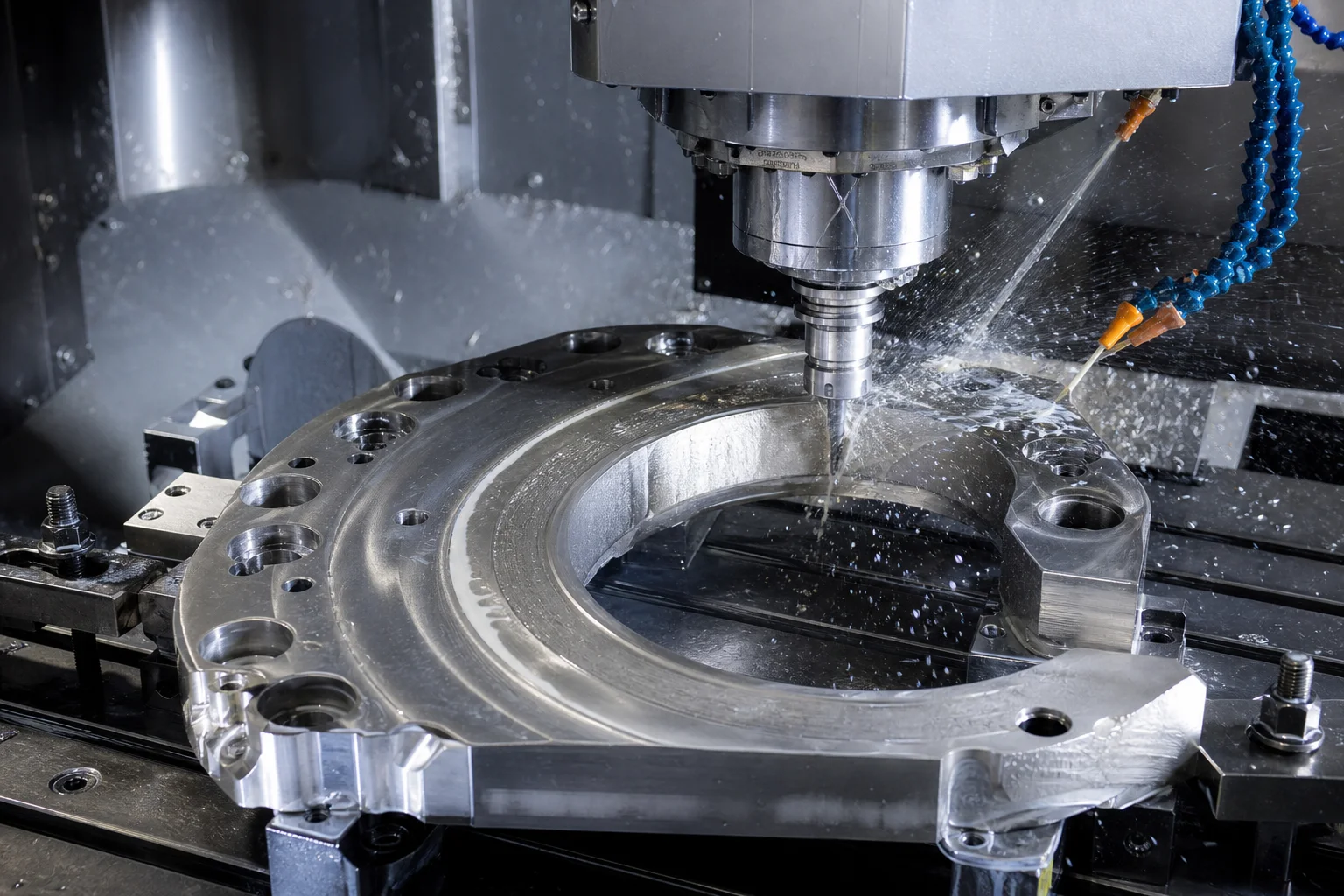

5. CNC Machining & Grinding of Mounting Interfaces

While the working bar pattern is cast to net or near-net shape, the back mounting face, bolt counterbores, and outer/inner locating diameters must be precision-machined to ensure absolute coplanarity across the assembled refiner disc.

Precision Machining Requirements:

• Back Mounting Face Flatness: Surface ground or milled on high-rigidity CNC vertical centers to within $0.025\text{ mm}$0.025 mm flatness across the entire segment arc. Any back-face rocking causes localized plate clashing during operation.
• Tapered Bevel & Bolt Pockets: Precision CNC milled bolt seating counterbores with tight depth tolerances ($\pm 0.05\text{ mm}$±0.05 mm) to guarantee uniform clamping preload without bolt head shearing.
• Segment Radial Arc Width: Segment edge angles precision-milled to within $\pm {0.02}^{\circ }$±0.02∘ to guarantee tight segment-to-segment radial joints ($<0.15\text{ mm}$<0.15 mm gap) around the complete ${360}^{\circ }$360∘ circle.

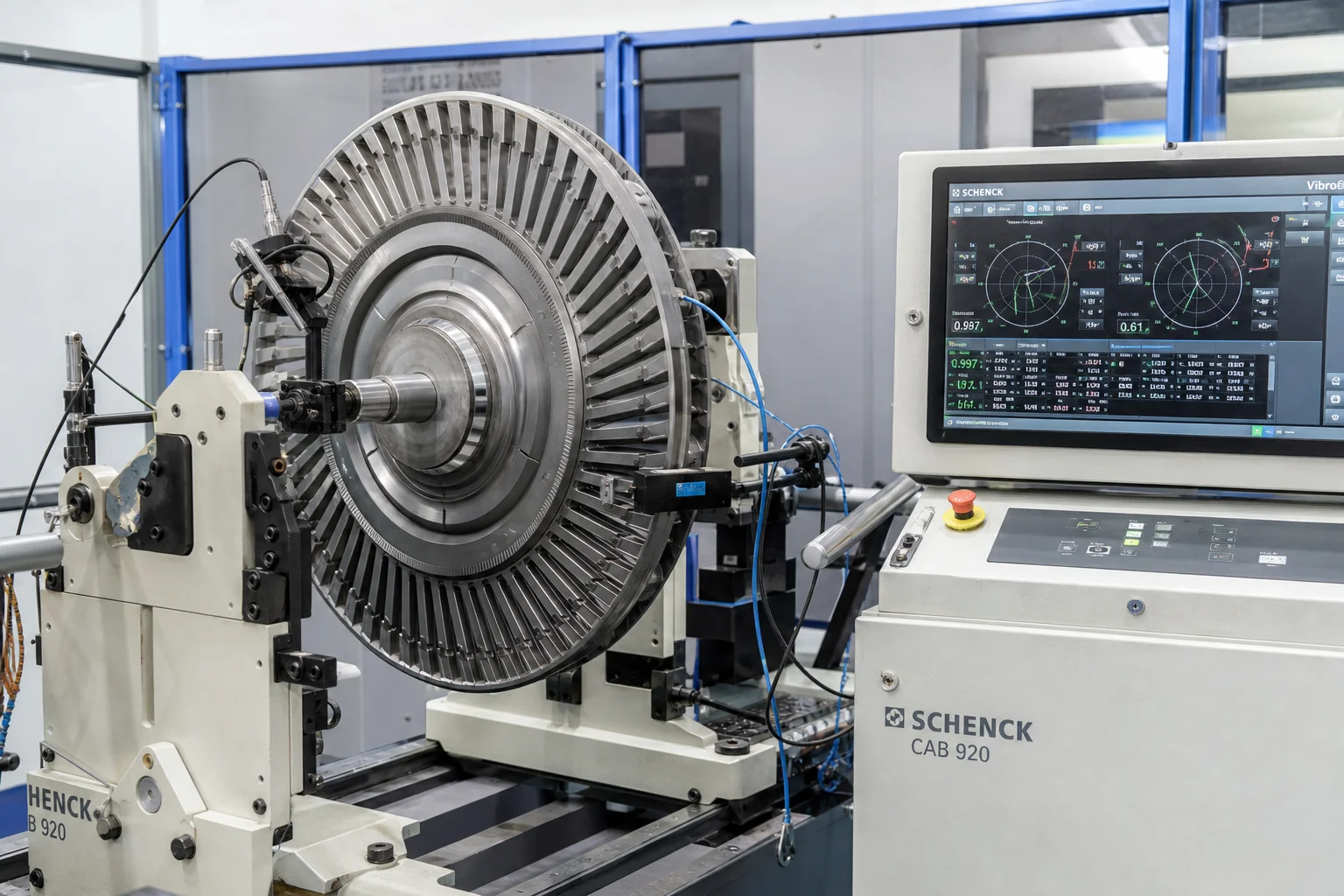

6. Dynamic Balancing & Full-Circle Trial Pre-Assembly

Refiner discs operate at extreme tip speeds. An assembly weight imbalance of just a few grams creates catastrophic bearing vibration:

       ┌───────────────────────────────────────────────────────┐
       │ Set Matching & Weight Grading (± 5 Grams per Segment) │
       └──────────────────────────┬────────────────────────────┘
                                  │
       ┌──────────────────────────┴───────────────────────────┐
       ▼                                                      ▼
┌───────────────────────────────┐              ┌───────────────────────────────┐
│ Full 360° Circular Pre-Assembly│              │ High-Speed Dynamic Balancing  │
│ • Segment joint gap check     │              │ • Assembled refiner disc spun │
│ • Radial runout $\le 0.05\text{ mm}$│          │ • Balance Grade ISO G1.0/G2.5 │
│ • Face taper & height scan    │              │ • Zero operational vibration  │
└───────────────────────────────┘              └───────────────────────────────┘

7. Quality Assurance & Metallurgical Inspection

8. Integrated Refiner Segment Manufacturing at Dandong City Pengxin Machinery Co., Ltd.

Manufacturing high-precision refiner plates requires an elite combination of high-alloy melting control, micro-detail casting fidelity, specialized heat treatment, and precision grinding.

Dandong City Pengxin Machinery Co., Ltd. delivers high-performance, custom-engineered refiner disc segment castings for leading pulp, paper, and MDF operations worldwide:

• Specialized Alloy Portfolio: Certified production of high-carbon martensitic stainless steels (AISI 440C Mod, DIN 1.4125), nickel-modified TMP alloys, and high-chromium white irons (ASTM A532).
• Micro-Bar Casting Fidelity: High-precision shell molding and investment tooling delivering crisp, defect-free bar leading edges down to 1.2 mm bar widths.
• In-House Vacuum & Cryogenic Heat Treatment: Computer-controlled austenitizing and sub-zero cryogenic processing locking in 58–62 HRC without distortion.
• Precision CNC Finishing & Set Balancing: Dedicated CNC surface grinding, edge milling, and dynamic weight balancing delivering ready-to-mount matched circle sets.
• Complete Traceability: Full EN 10204 3.1 material certificates, CMM dimensional scans, hardness logs, and set weight balancing sheets with every shipment.

Conclusion

Refiner disc segments represent one of the most demanding intersections of wear metallurgy, micro-channel fluid dynamics, and precision mechanical assembly in the process industries. Achieving maximum pulp quality and energy efficiency requires zero compromise in alloy chemistry, bar edge sharpness, heat treatment hardness, and dynamic balance.

Partnering with an experienced, integrated casting and precision machining facility ensures that your refiner plates run smoother, last longer, and cut energy costs per ton of fiber.

Contact Dandong City Pengxin Machinery Co., Ltd. to submit your refiner plate drawings or request custom pattern optimization.

Dandong City Pengxin Machinery Co., Ltd. — Heavy Castings and Precision Machining, Since 1958.
