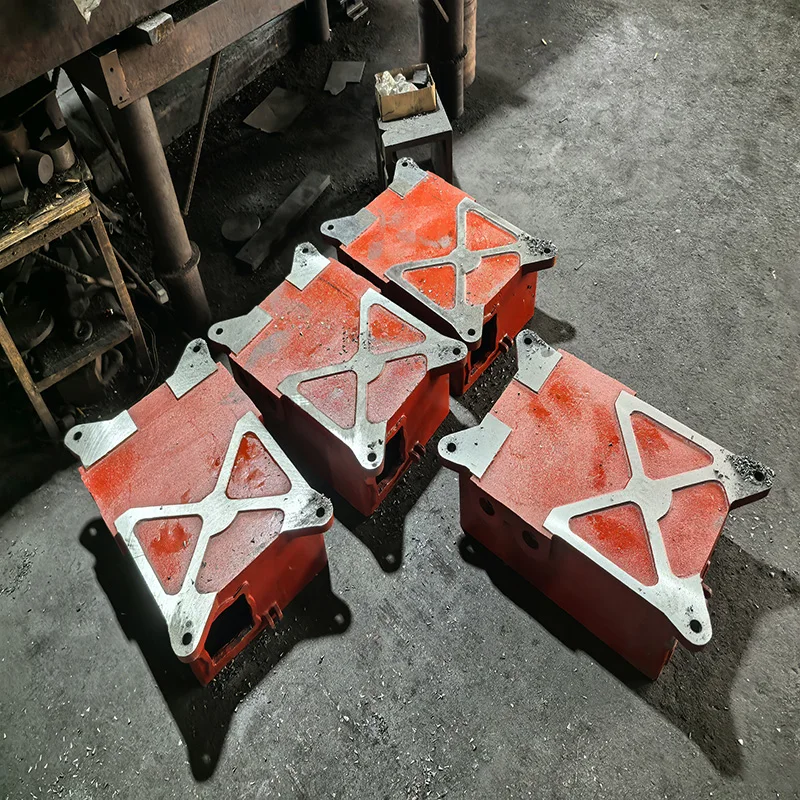

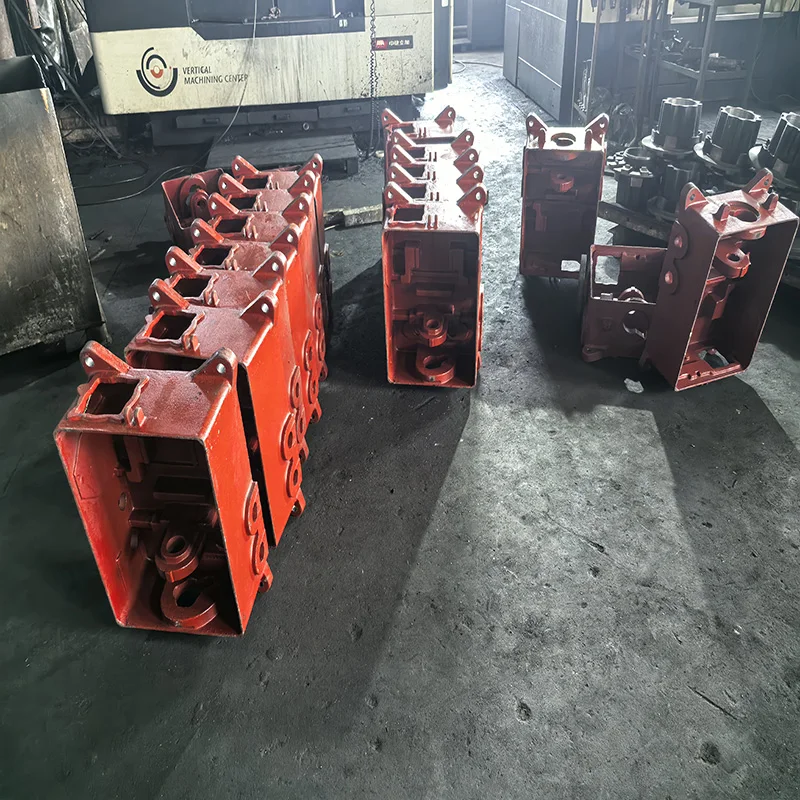

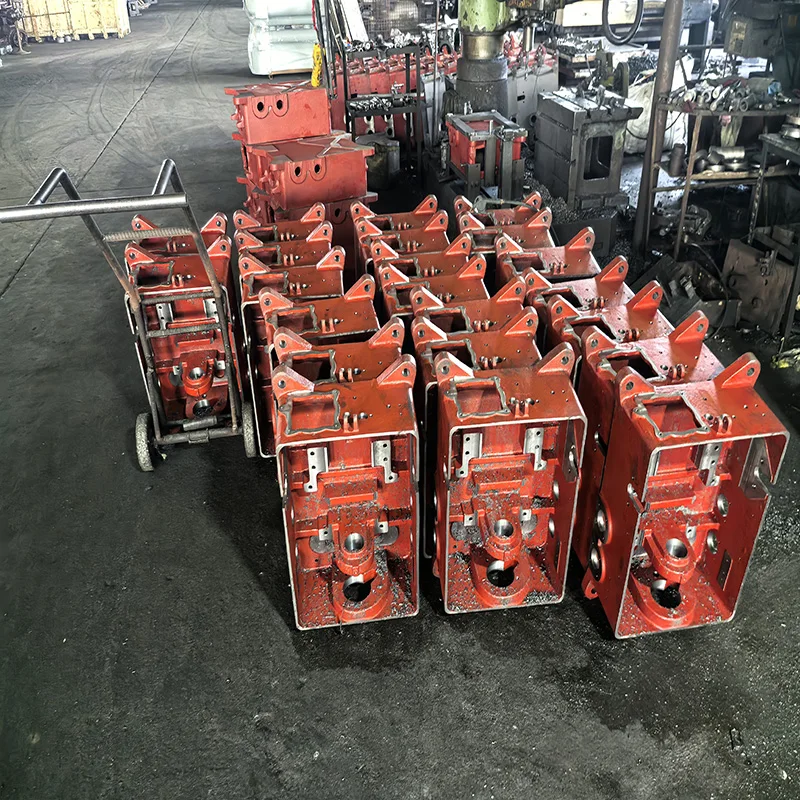

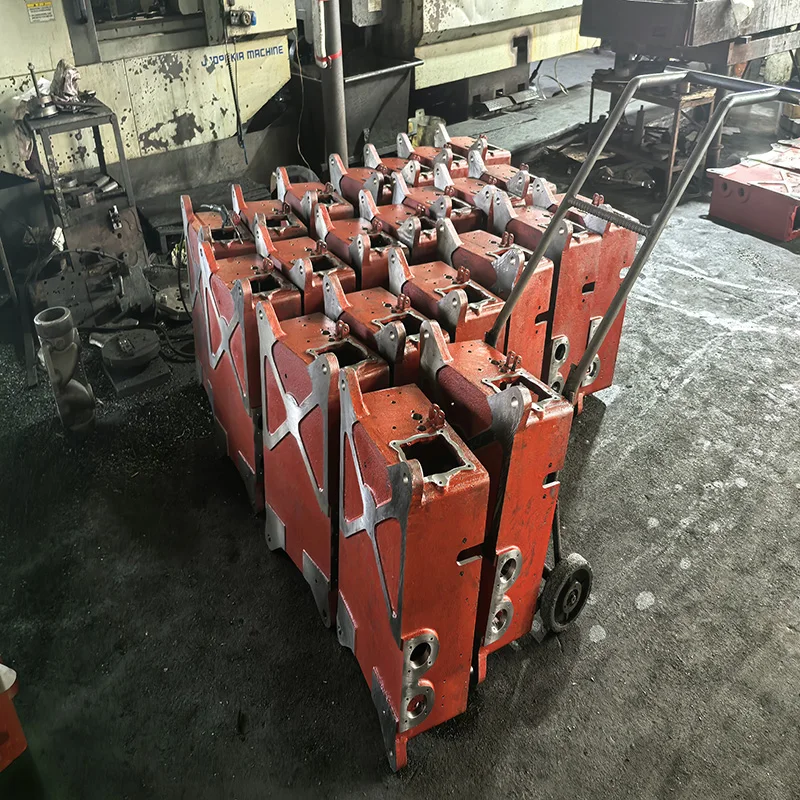

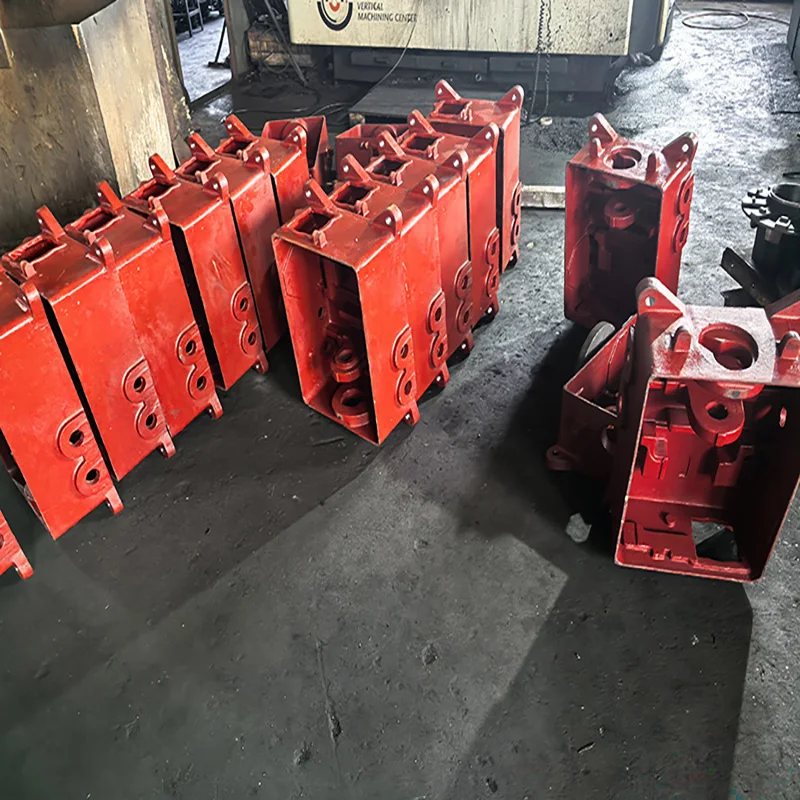

China Foundry Ductile Iron Shell Casting Bridge Frame

China Foundry Ductile Iron Shell Casting Bridge Frame

Overview
Recommended Products

In the realm of heavy infrastructure and transportation engineering, the integrity of structural components is paramount. Our China foundry specializes in the production of ductile iron bridge frames utilizing advanced shell casting technology. These critical structural elements are engineered to deliver exceptional performance under demanding load conditions, combining the superior material properties of ductile iron with the precision of modern shell casting processes to meet the rigorous requirements of global bridge construction and rehabilitation projects.

Material Excellence: Ductile Iron Advantages
We employ high-grade ductile iron (GGG40/50/60) that offers:

High Tensile Strength (400-600 MPa) with excellent yield strength
Superior Impact Resistance and toughness (elongation 10-18%)
Exceptional Fatigue Resistance for long-term cyclic loading capability
Good Corrosion Resistance through proper alloy composition
Excellent Casting Fluidity for complex structural geometries

Advanced Shell Casting Process
Our manufacturing methodology ensures precision and quality:

Pattern Preparation
- Precision metal pattern creation
- Thermal-controlled resin sand coating
- Automated mold assembly systems
Casting Excellence
- Computer-controlled pouring systems
- Optimized gating and riser design
- Controlled solidification monitoring
Post-Casting Processing
- Heat treatment (normalizing/annealing)
- Stress relieving for dimensional stability
- Precision machining of critical surfaces

Performance Characteristics

Load Capacity: Designed for highway bridge standards (HS20-44 loading)
Durability: Service life exceeding 50 years with proper maintenance
Weight Optimization: 15-20% lighter than equivalent steel structures
Seismic Performance: Excellent energy absorption characteristics
Weather Resistance: Suitable for various environmental conditions

Quality Assurance

ISO 9001:2015 certified manufacturing processes
Non-destructive testing (UT, MT, RT)
Full material traceability and certification
Dimensional verification per ASTM A536

Applications

Highway Bridge Support Systems
Pedestrian Bridge Structures
Railway Bridge Components
Industrial Access Bridges
Infrastructure Rehabilitation Projects

Our ductile iron shell casting bridge frames represent the perfect marriage of material science and manufacturing expertise. Contact our China foundry today to discuss your specific bridge frame requirements and benefit from our technical expertise in structural component manufacturing.

About Us

China Foundry Ductile Iron Shell Casting Bridge Frame factory

China Foundry Ductile Iron Shell Casting Bridge Frame details

China Foundry Ductile Iron Shell Casting Bridge Frame manufacture

Material	Aluminum,gray cast iron,ductile iron,stainless steel, copper, brass, galvinized etc.
Size	Customized
Surface treatment	Powder coating, electroplating, oxide,anodization
Technics	laser cut, bend, weld, stamp,casting,forging
Certification	ISO9001:2015
OEM	Accept
Drawing Format	3D/CAD/Dwg/IGS/STEP
Color	Customized
Application	Appliance, Auto, Building, Capital equipment, Energy, Instrumentation, Medical device, Telecommunications

Who We Are

Dandong Pengxin Machinery Co., Ltd., founded in 1958, is a private enterprise specializing in casting, machining, and assembly.
Spanning 66,000 m² with 40,000 m² of workshops, it has $40M in assets and 330 employees, including 46 technical staff. Annual capacity reaches 100,000 tons.

Equipped with advanced technologies like high-pressure molding and Japanese FBO Ⅲ production lines, it produces up to 30,000
tons/year. Facilities include 12-pulse electronic furnaces, CNC machines, and a quality inspection center with precision
instruments.

Service

Pre-sales

Get your purchasing needs → Confirm order drawing→ Give customized solution → Offer a quotation → Make the pattern→ Provide samples→ Bulk production after samples approve the test.

On Sale

Drawing Control → Pattern Control → Raw Material Control → Molding Sand Control → Pouring Process Control → Raw Casting & Machining Control →Other Requirement Control→ Packing & Delivery Control.

After-Sales

Proactively get your feedback→ Engineering team gets involved→Casting engineer conducts metallographic and spectral tests based on the inventory test rods→Machining engineer's CMM inspection is based on the inventory samples→Provide solutions based on the test results→Welcome to contact us for your customized solution.

R&D

Our Company Owns A Provincial Level Technology Center, Plus A 15 Person R&D Team, With average 20+ Years Of R&D Experience. We can help customers design for free according to their requirements, or produce according to the drawings or samples.

China Foundry Ductile Iron Shell Casting Bridge Frame supplier

Production Capacity

100,000 tons+Annual production capacity for Iron.
30,000 tons+Annual production capacity for Aluminum.
80,000 tons+Annual production capacity for Steel.
4000+Mold develop production.

Quality Control

At Pengxin-Casting, process control begins as early as in the planning and development phase of the products. We support our customers to perform all required tests and inspections in a laboratory. It goes without saying that our plants are certified according to ISO 9001 and IATF16949 in line with a validated quality management. As we strive to accomplish our zero-error policy, you can rely on the following process control measures: Drawing Control → Pattern Control → Raw Material Control → Molding Sand Control → Pouring Process Control → Raw Casting & Machining Control →Other Requirement Control→ Packing & Delivery Control.

Pattern Control

We simulate feeding syetem to check the pattern desgin from the filling process and material solidification,In this way, we can shorten the mold development cycle, reduce the number of mold trials and improve product quality.The software we use includes ‌Abaqus,‌Moldflow and Moldex3D,simulate feeding system, reduce casting defects and improve efficiency.
