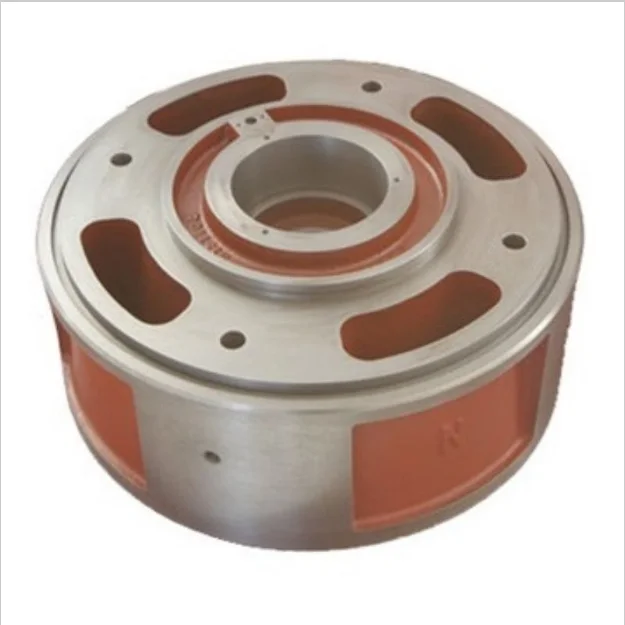

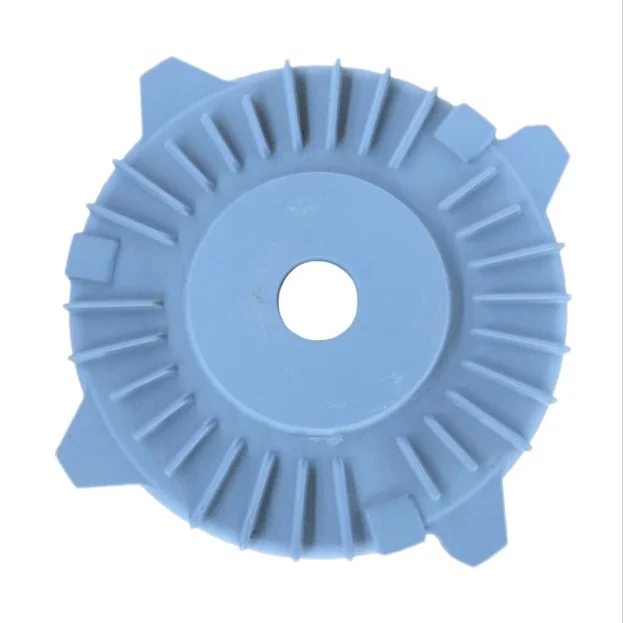

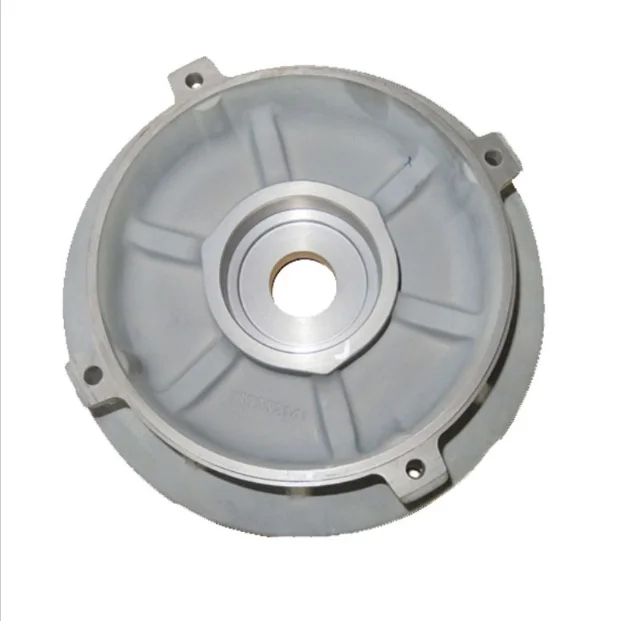

Cast Iron Shell Casting Motor End Cover Premium Casting Services Product

As a specialized manufacturer in motor components, we provide premium shell casting services for cast iron motor end covers that ensure exceptional protection, durability, and performance for various motor applications. Our manufacturing expertise combines advanced shell molding technology with precision engineering to deliver end covers that offer superior dimensional accuracy, excellent sealing properties, and reliable operation in demanding industrial environments.

Material Excellence and Performance Characteristics

We utilize high-grade grey cast iron (Grades G25-G35) and ductile iron (Grades 65-45-12) specifically engineered for motor end cover applications. Our grey iron castings offer excellent vibration damping capacity with tensile strength ranging from 250-350 MPa, effectively absorbing motor vibrations and reducing noise transmission. The ductile iron variants provide enhanced mechanical properties with tensile strength of 448 MPa and elongation of 12%, ensuring reliable performance under impact conditions and heavy loads. These materials demonstrate:

• Superior corrosion resistance for various operating environments

• Excellent machinability for precision bearing seat finishing

• Good thermal conductivity for efficient heat dissipation

• Consistent dimensional stability under thermal cycling

• Outstanding wear resistance for long-term reliability

Advanced Shell Casting Manufacturing Process

Our production methodology employs sophisticated shell molding techniques optimized for motor end covers:

Precision Pattern Engineering
We design and manufacture metal patterns using CAD/CAM technology, incorporating:

• Optimal shrinkage allowances for dimensional accuracy

• Strategic gating systems ensuring proper metal flow

• Proper draft angles for pattern extraction

• Venting placement to minimize casting defects

Shell Mold Production
The resin-coated sand process creates robust molds featuring:

• Excellent dimensional stability (±0.13mm per 25mm)

• Superior surface finish (Ra 3.2-6.3 μm)

• Consistent mold density and strength

• Minimal binder usage for reduced gas generation

Quality Assurance and Performance Validation

Each motor end cover undergoes rigorous quality control:

• Coordinate measuring machine dimensional verification

• Ultrasonic testing for internal defect detection

• Material composition analysis through spectrochemical testing

• Surface quality inspection for optimal performance

• Bearing seat concentricity validation

• Pressure testing for sealed motor applications

Motor Applications and Industry Solutions

Our cast iron end covers serve diverse motor types:

• Industrial Motors: AC/DC motor protection covers

• Automotive Applications: Starter motor and alternator covers

• Pump Motors: Submersible and surface pump motor enclosures

• HVAC Systems: Blower motor and compressor covers

• Agricultural Equipment: Motor protection covers for farming machinery

By combining advanced shell casting technology with motor component expertise, we deliver end covers that provide reliable protection, optimal heat dissipation, and extended motor service life. Our engineering team works closely with motor manufacturers to develop customized solutions that meet specific application requirements, ensuring perfect fitment, superior performance, and quality-assured operation in various motor applications worldwide.
