Large Industrial Water Treatment & Seawater Desalination Valve Castings: Ni-Resist, Aluminum-Bronze, and Bi-Directional Sealing (AWWA C504 / EN 593)

2026-10-06 21:00:09

Meta Description: A comprehensive technical guide to large-diameter water treatment and seawater reverse osmosis (SWRO) desalination valve castings. Explore Ni-Resist austenitic ductile iron (ASTM A439 D-2), Aluminum-Bronze (ASTM B148 C95800), vulcanized EPDM lined ductile iron (EN-GJS-400-15), and large vertical CNC turning for DN600 to DN3000 valves.

In municipal potable water networks, mega-scale wastewater treatment facilities, and seawater reverse osmosis (SWRO) desalination plants, large-diameter flow control valves operate as the primary hydraulic control infrastructure. Ranging in nominal pipe sizes from DN600 to DN3000 ( $24 to 120 inches$ ), double-offset and triple-offset butterfly valves, gate valves, and check valves process hundreds of thousands of cubic meters of water per day under working pressures up to $25 to 40 bar$ .

Operating under continuous high-flow hydraulic regimes, these massive valve castings face severe environmental and mechanical degradation:

Seawater Reverse Osmosis (SWRO) Desalination: Raw seawater intake ( $35, 000 ppm TDS$ ) and concentrated hypersaline brine reject streams ( $70, 000 ppm TDS$ ) cause aggressive chloride crevice corrosion, pitting corrosion, and galvanic cell attack.
High-Velocity Throttling & Cavitation: Turbulent flow through large valve discs creates micro-jet vapor implosion shock waves ( $> 1, 000 MPa$ local pressure), eroding disc edges and body seating necks.
Bi-Directional Bubble-Tight Sealing Standards: Governed by AWWA C504 (Rubber-Seated Butterfly Valves) and EN 593 / ISO 5752, large water valve castings must maintain zero-leakage shutoff under full reverse pressure head.

Surviving decades of corrosive water service requires specialized foundry metallurgy: casting Austenitic Ni-Resist Ductile Iron (ASTM A439 Type D-2 / D-2B) for brine pumps and valves, Nickel-Aluminum Bronze (ASTM B148 C95800 / EN 1982 CC333G) for marine intake valves, high-ductility Ferritic Ductile Iron (EN-GJS-400-15 / GB QT400-18) with precision-cast EPDM lining dovetail retention grooves, and executing precision vertical CNC turning of disc sealing hydrofoils.

This engineering guide provides an in-depth analysis of water and desalination alloy metallurgy, DFM casting design, large vertical lathe CNC machining, vulcanized elastomeric lining integration, and hydrostatic pressure testing.

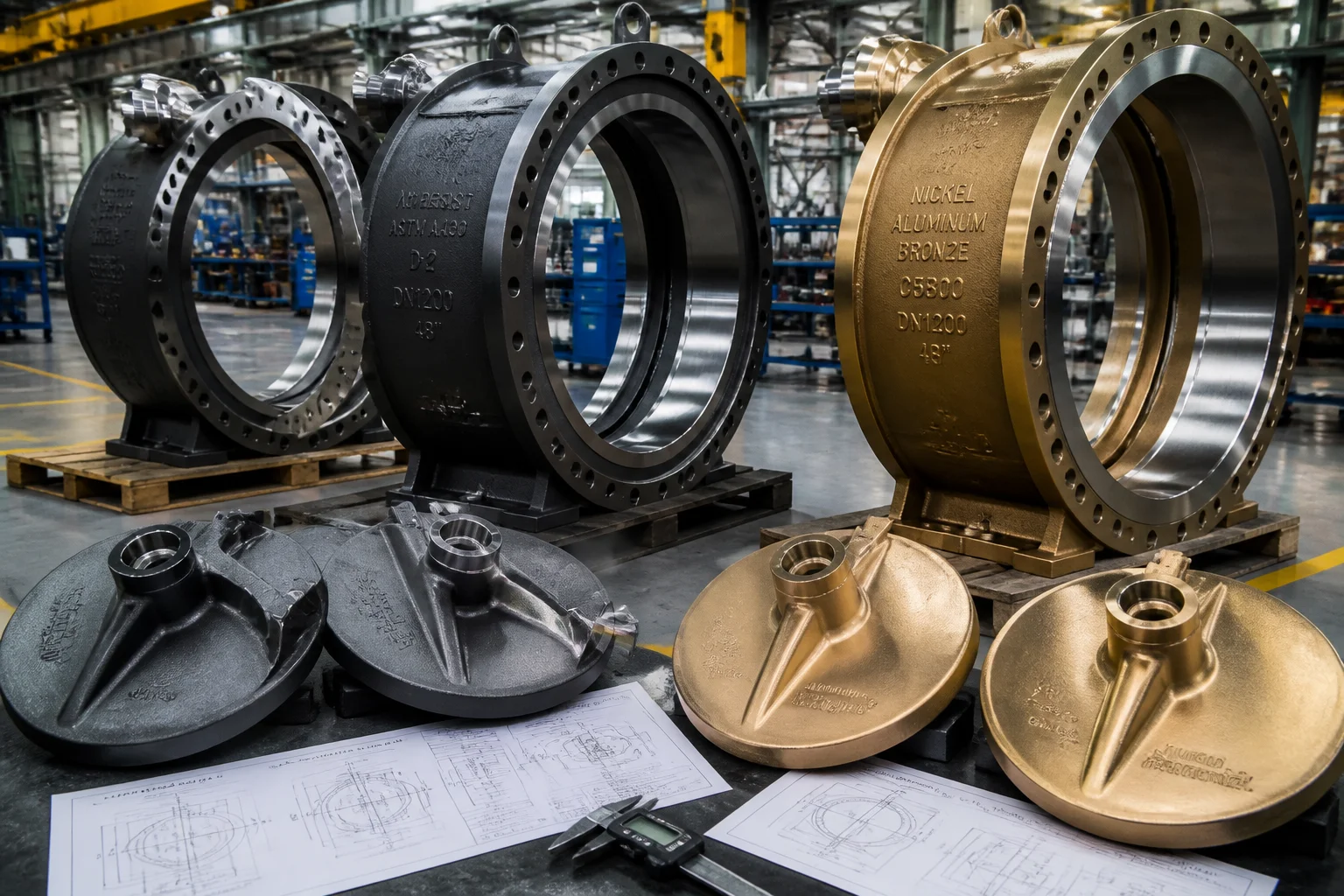

Array of large-diameter Ni-Resist ductile iron and Aluminum-Bronze butterfly valve bodies and discs

1. Operating Hydraulic Environments & Degradation Modes

                     ┌──────────────────────────────────────────────┐
                     │ High-Volume Saline Water Flow (DN600-DN3000) │
                     └──────────────────────┬───────────────────────┘
                                            │
        ┌───────────────────────────────────┼───────────────────────────────────┐
        ▼                                   ▼                                   ▼
┌───────────────────────────────┐ ┌───────────────────────────────┐ ┌───────────────────────────────┐
│ Chloride Pitting & Crevice    │ │ Cavitation Jet Erosion        │ │ Elastic Seat Deformation      │
│ (Hypersaline brine attacking  │ │ (High-velocity throttling     │ │ (Body ovalization under line  │
│  disc pivot trunnions)        │ │  eroding metal seat profiles) │ │  pressure causing seal bypass)│
└───────────────────────────────┘ └───────────────────────────────┘ └───────────────────────────────┘

Water Valve Application	Service Water Chemistry	Dominant Failure Mode	Material Grade Solution
SWRO Desalination Intake Butterfly Valves	Raw Coastal Seawater ( $35 g/l C l^{-}$ ) + biofouling	Marine galvanic corrosion, de-aluminization	Nickel-Aluminum Bronze (ASTM B148 C95800 / Cu3)
High-Pressure Brine Reject Valves	Hypersaline Brine ( $70 g/l C l^{-}$ / $70 bar$ )	Extreme crevice corrosion, pitting washout	Super Duplex Stainless Steel (2507 / ASTM A890 5A)
Municipal Potable Water Butterfly Valves	Treated Fresh Water ( $p H 6.5 – 8.5$ ) / $16 bar$	Internal tuberculation rust, disc seal leaking	Ductile Iron (EN-GJS-400-15) + Fusion-Bonded Epoxy (FBE)
Industrial Wastewater & Slurry Valves	Acidic / Alkaline Effluent ( $p H 2 – 12$ )	Chemical leaching, sliding slurry abrasion	Ni-Resist Ductile Iron (ASTM A439 D-2 / D-2B)

2. Water & Desalination Alloy Metallurgy Hierarchy

Material Selection Matrix for Large-Diameter Water Castings:

Alloy Family	Material Standard / Equivalent	Nominal Chemical Composition (wt%)	Microstructure & Matrix	Mechanical Properties	Application Role
Austenitic Ni-Resist Ductile Iron	ASTM A439 Type D-2 / EN-GJSA-XNiCr20-2	$3.0 % C, 2.0 % Si, 18.0 - 22.0 % Ni, 1.75 - 2.25 % Cr$	Spheroidal Graphite in Stable FCC Austenite Matrix	$R_{m} \geq 400 MPa, R_{p 0.2} \geq 210 MPa, A_{5} \geq 8 %$	High-salinity brine valves, wastewater pumps, sewage treatment discs
Nickel-Aluminum Bronze (NAB)	ASTM B148 C95800 / EN 1982 CC333G	$81 % Cu, 9.0 - 10.0 % Al, 4.0 - 5.5 % Ni, 4.0 - 5.5 % Fe$	$α + κ$ Intermetallic Phase Matrix	$R_{m} \geq 590 MPa, R_{p 0.2} \geq 240 MPa, A_{5} \geq 16 %$	Seawater intake butterfly discs, marine cooling water isolation valves
High-Ductility Nodular Iron	EN-GJS-400-15 / GB QT400-15	$3.6 - 3.8 % C, 2.2 - 2.6 % Si, \leq 0.20 % Mn$	Fully Ferritic Matrix ( $\geq 90 %$ Ferrite)	$R_{m} \geq 400 MPa, R_{p 0.2} \geq 250 MPa, A_{5} \geq 15 %$	High-pressure municipal potable water bodies, rubber-lined gate valves
Super Duplex Stainless	ASTM A890 5A (CE3MN / 2507)	$25 % Cr, 7 % Ni, 4 % Mo, 0.28 % N$	50/50 Austenite-Ferrite Dual Phase (PREN $> 42$ )	$R_{m} \geq 690 MPa, R_{p 0.2} \geq 515 MPa, A_{5} \geq 18 %$	High-pressure SWRO membrane feed and energy recovery valves

Metallurgical Focus: Ni-Resist Ductile Iron (ASTM A439 D-2)

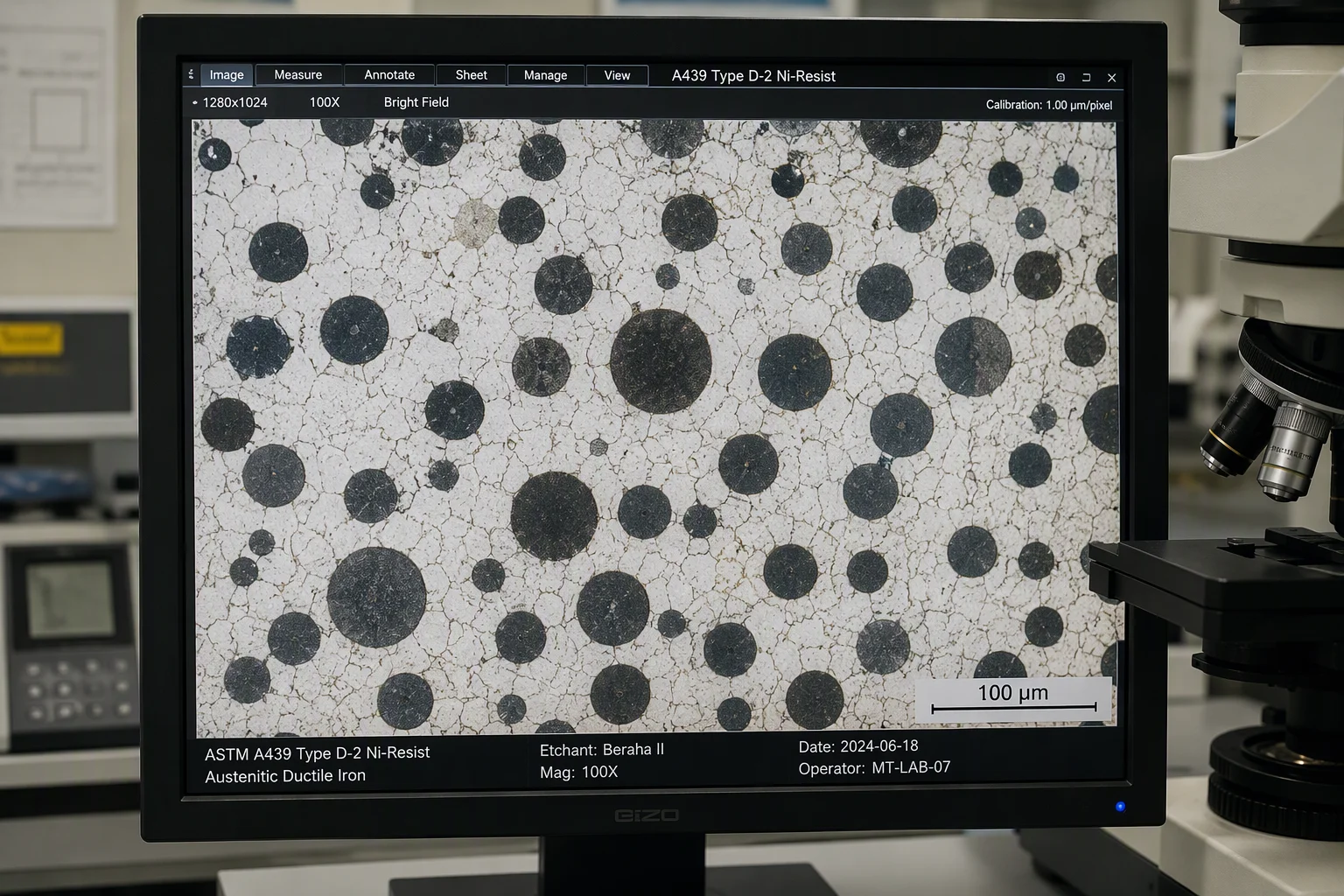

Metallographic microstructure of ASTM A439 Type D-2 Ni-Resist austenitic ductile iron

Adding $20 %$ Nickel stabilizes a fully austenitic face-centered cubic (FCC) iron matrix at room temperature, which forms a dense, self-healing oxide film that resists galvanic corrosion in saline waters while the spheroidal graphite nodules provide natural galling resistance and vibration damping during high-velocity throttling.

3. DFM Casting Architecture for Large Valve Bodies (DN600–DN3000)

Casting massive 3 to 15-ton valve bodies and double-flanged discs requires specialized mold stiffness and thermal modulus risering:

┌─────────────────────────────────────────────────────────────┐
│ 1. 3D Precision Master Tooling & Wooden Segmented Patterns  │
│    • Hydrodynamic disc profile with low head-loss coefficient│
├─────────────────────────────────────────────────────────────┤
│ 2. Automated Furan Resin Sand Molding with Zircon Wash      │
│    • High-rigidity molds prevent body flange distortion     │
├─────────────────────────────────────────────────────────────┤
│ 3. Precision Dovetail Lining Retention Grooves              │
│    • Cast-in or CNC-machined dovetail retention slots for   │
│      vulcanized EPDM / NBR rubber body lining               │
├─────────────────────────────────────────────────────────────┤
│ 4. Directional Feeder Risers over Trunnion Shaft Bosses     │
│    • High thermal modulus feeder risers prevent shrinkage   │
│      porosity along heavy shaft bearing bores               │
└─────────────────────────────────────────────────────────────┘

4. Large-Envelope Vertical CNC Turning & Disc Profiling

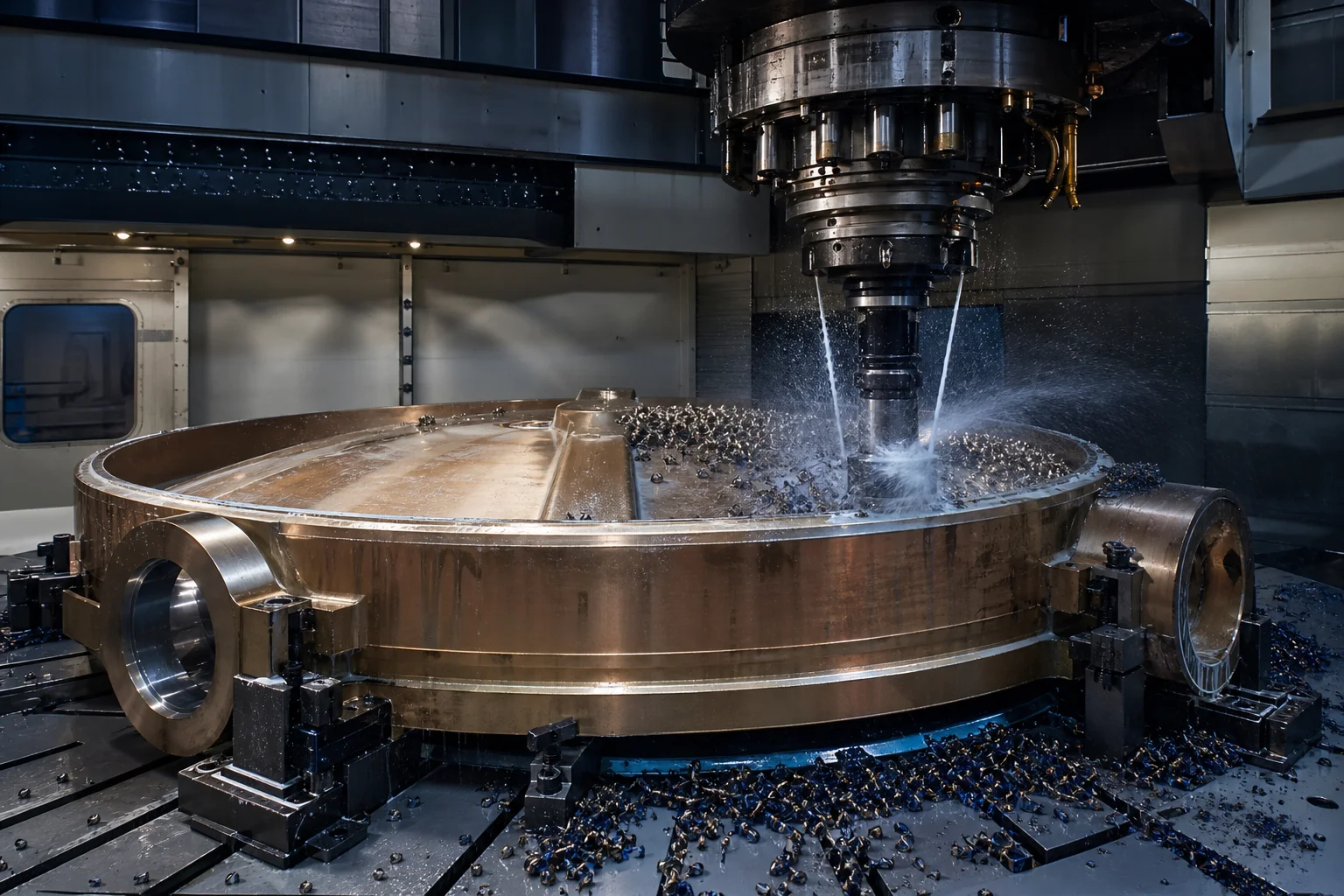

6-meter CNC vertical turning lathe precision machining spherical sealing profile of butterfly disc

Large butterfly valve sealing depends on sub-millimeter concentricity between the body seat bore and the eccentric disc sealing edge:

        ┌───────────────────────────────────────────────────────┐
        │ 1. Full Normalizing / Annealing Stress Relief         │
        │ • Eliminates residual stresses; stabilizes roundness  │
        └──────────────────────────┬────────────────────────────┘
                                   │
                                   ▼
        ┌───────────────────────────────────────────────────────┐
        │ 2. Large 6-Meter CNC Vertical Turning Lathe (VTL)     │
        │ • Precision turning of body seat bore and raised face │
        │   flanges (Concentricity within $\le 0.040\text{ mm}$)│
        └──────────────────────────┬────────────────────────────┘
                                   │
                                   ▼
        ┌───────────────────────────────────────────────────────┐
        │ 3. 5-Axis Multi-Axis CNC Disc Sealing Edge Milling    │
        │ • Precision milling of double/triple eccentric disc   │
        │   spherical profile ($Ra \le 0.4\text{ µm}$)          │
        │ • Horizontal in-line boring of dual shaft trunnions   │
        │   (Coaxiality $\le 0.025\text{ mm}$ across 3 meters)  │
        └───────────────────────────────────────────────────────┘

5. Hydrostatic Pressure Proof Testing & Sealing Standards (AWWA / EN 593)

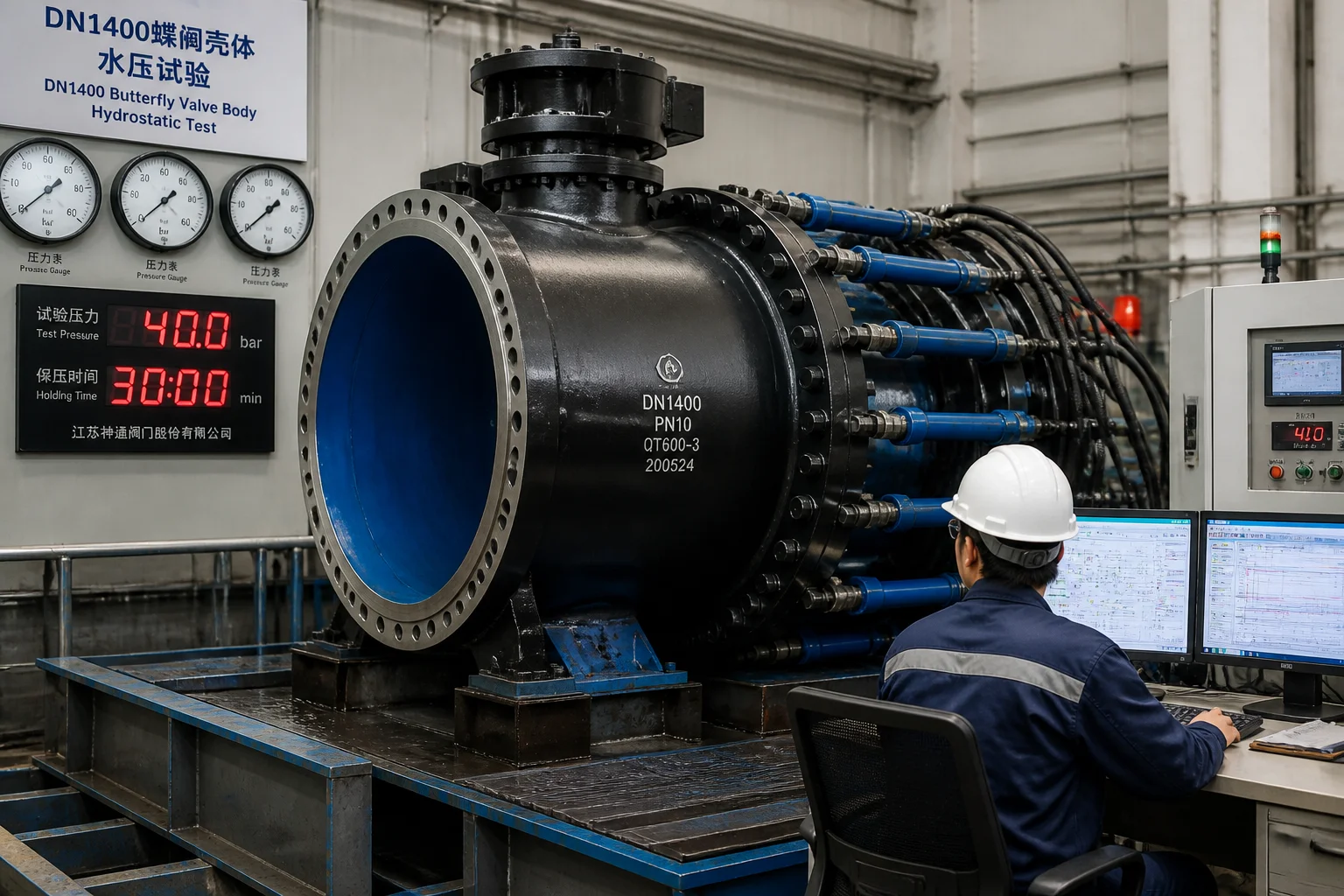

Hydrostatic proof pressure test of massive cast ductile iron desalination valve body assembly

Quality Test Category	Standard / Test Specification	Test Parameter & Acceptance Criteria
Hydrostatic Shell Proof Test	AWWA C504 / EN 12266-1 / ISO 5208	$1.5 \times$ rated cold working pressure ( $> 37.5 bar$ ) held for $> 15 minutes$ ; zero leakage
Bi-Directional Seat Leak Test	AWWA C504 / EN 12266-1 Rate A	Tested in both forward and reverse pressure directions; Zero Allowable Bubble Leakage (Rate A)
Coating Holiday Spark Test	NACE SP0188 / ISO 29601	High-voltage spark test ( $> 5 kV$ ) across 100% of internal FBE epoxy or EPDM lining; zero pinhole sparks
Ultrasonic Testing (UT)	EN 12680-3 Class 3 / ASTM A609	100% volumetric scan on shaft trunnions, disc hubs, and body neck flanges; zero voids
Magnetic Particle Testing (MT)	ISO 9934 / ASTM E709 (Fluorescent)	100% coverage of trunnion fillets and flange transitions; zero linear crack indications

6. Large Valve Casting Capabilities at Dandong City Pengxin Machinery Co., Ltd.

Manufacturing large-diameter water and desalination valve castings demands heavy induction melting, precision pit molding facilities, large CNC vertical turning lathes, and automated pressure testing bays.

Dandong City Pengxin Machinery Co., Ltd. delivers fully certified, turnkey finished waterworks and desalination valve castings:

Comprehensive Alloy Expertise: Certified production of Ni-Resist Ductile Iron (ASTM A439 D-2), Nickel-Aluminum Bronze (C95800), Ferritic Ductile Iron (EN-GJS-400-15), and Super Duplex Stainless (2507).

Large-Diameter Capacity: 80,000 m² facility with heavy overhead cranes capable of casting and machining single valve bodies and discs from DN600 up to DN3000 (weights from 1 ton up to 25 tons).

Large-Envelope CNC Machining: Large 6-meter to 8-meter CNC vertical turning lathes and floor-type horizontal boring mills delivering trunnion coaxiality $\leq 0.025 mm$ .

Protective Coating & Lining Integration: Dedicated blast-cleaning and automated Fusion-Bonded Epoxy (FBE $\geq 300 µm$ DFT) and vulcanized rubber lining application bays.

Complete Quality Certification: ISO 9001 certified, providing full EN 10204 3.1 & 3.2 material test certificates, 100% UT/MT reports, and bi-directional hydrostatic test charts.

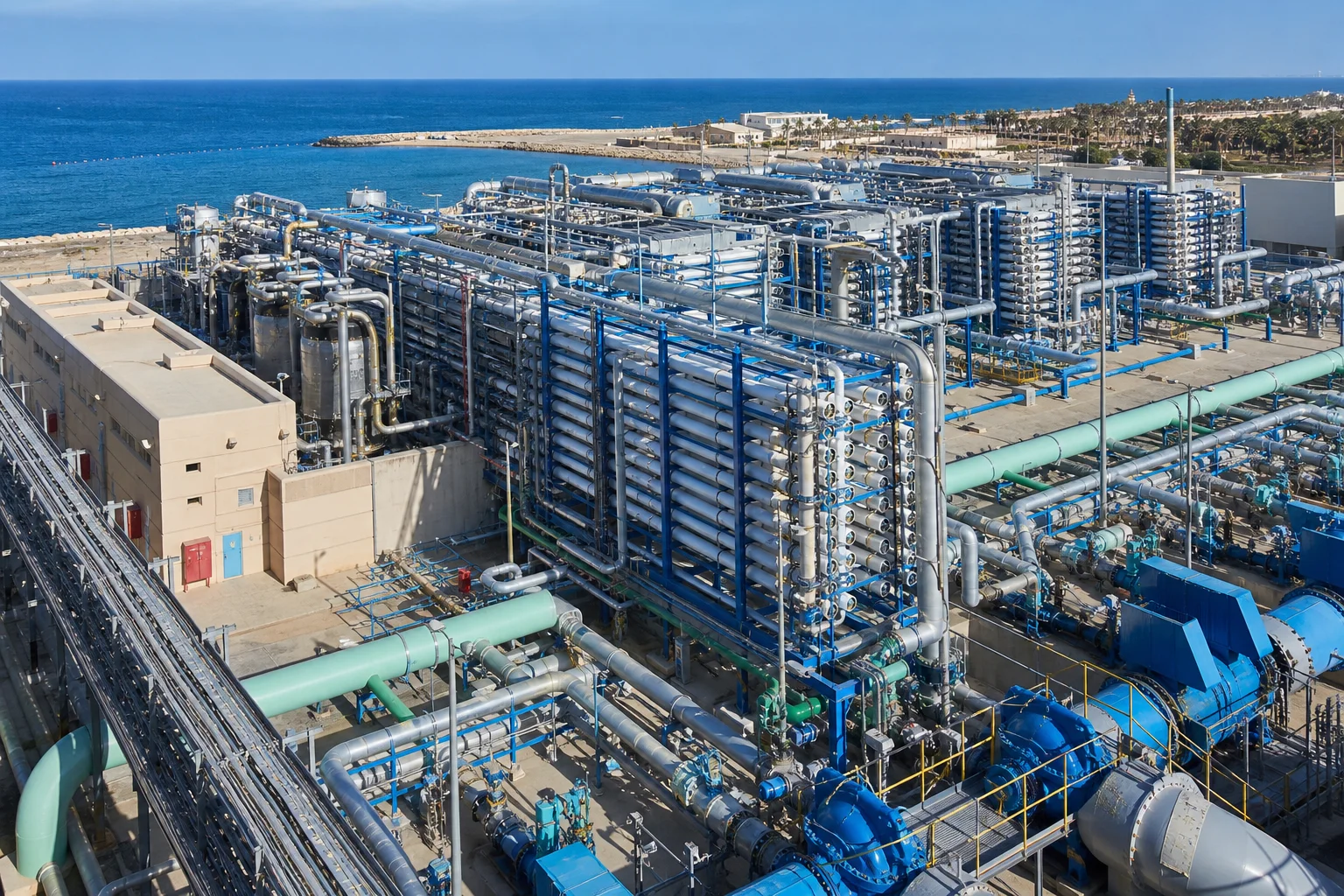

Modern seawater reverse osmosis SWRO desalination plant with large valve manifolds

Conclusion

Large industrial water treatment and seawater desalination valve castings represent the vital hydraulic conduits of global water security. Operating for decades in hypersaline seawater and high-flow potable water pipelines demands corrosion-resistant metallurgy (Ni-Resist D-2, NAB C95800, and lined ductile iron), precision large-envelope vertical CNC turning, and verified zero-leakage bi-directional hydrostatic testing per AWWA C504 and EN 593.

Partnering with an experienced, integrated heavy casting and precision machining powerhouse ensures that your municipal and desalination valve systems operate with maximum hydraulic efficiency, zero leakage, and decades of reliable service.

Contact Dandong City Pengxin Machinery Co., Ltd. to submit your large-diameter valve body or disc drawings.

Dandong City Pengxin Machinery Co., Ltd. — Heavy Castings and Precision Machining, Since 1958.
