Continuous Casting Machine (CCM) Segment & Mold Housing Castings: Metallurgy, In-Line CNC Line-Boring, and Water-Cooling Integrity

2026-10-01 20:57:23

Meta Description: A comprehensive technical guide to steel mill Continuous Casting Machine (CCM) segment frames, mold housing jackets, and roll bearing chocks. Explore GS-20Mn5 and ASTM A216 WCB cast steels, corrosion-resistant CF8M chocks, CNC in-line multi-roll boring (alignment <=0.035 mm), and water jacket pressure testing.

In integrated steelmaking plants, Continuous Casting Machines (CCM / Continuous Casters) are the central metallurgical production bridge converting liquid steel ( $1, 520 °C– 1, 580 °C$ ) into solid slabs, blooms, and billets. Operating non-stop in 24/7 campaigns:

CCM Mold Housings & Oscillating Frames: Enclose water-cooled copper mold plates vibrating vertically at frequencies up to 400 cycles/min, enduring violent thermal cycling, mold powder chemical corrosion, and intense dynamic acceleration forces.
CCM Bending, Bow, and Straightening Segments (Segments 0 to 15): Massive 5-ton to 18-ton cast steel segment frames house multi-roll assemblies that support, guide, and soft-reduce the partially solidified red-hot steel slab ( $1, 000 °C– 1, 250 °C$ ) against immense internal liquid ferrostatic bulging pressures exceeding $1, 500 to 3, 000 kN$ per roll pair, all under continuous secondary cooling water sprays and scaling steam.

Under these severe operating conditions, casting distortion or bearing failure causes slab surface cracking, internal center-segregation defects, or catastrophic liquid steel breakout accidents that destroy segment machinery and shut down melt shops for days.

Surviving millions of tons of steel throughput demands specialized heavy casting engineering: casting High-Toughness Structural Steels (GS-20Mn5 / ASTM A216 WCB / ZG230-450) for rigid segment frames, deploying Cast Stainless Steels (ASTM A351 CF8M / 1.4408) for corrosion-proof internal roll chocks, executing high-precision CNC in-line multi-axis line-boring across 12-meter segment assemblies (bearing seat alignment $\leq 0.035 mm$ ), and hydrostatically proofing internal water cooling galleries.

This comprehensive guide details CCM alloy metallurgy, thermal risering, internal water cooling jacket casting, precision multi-spindle CNC line-boring, and quality validation workflows.

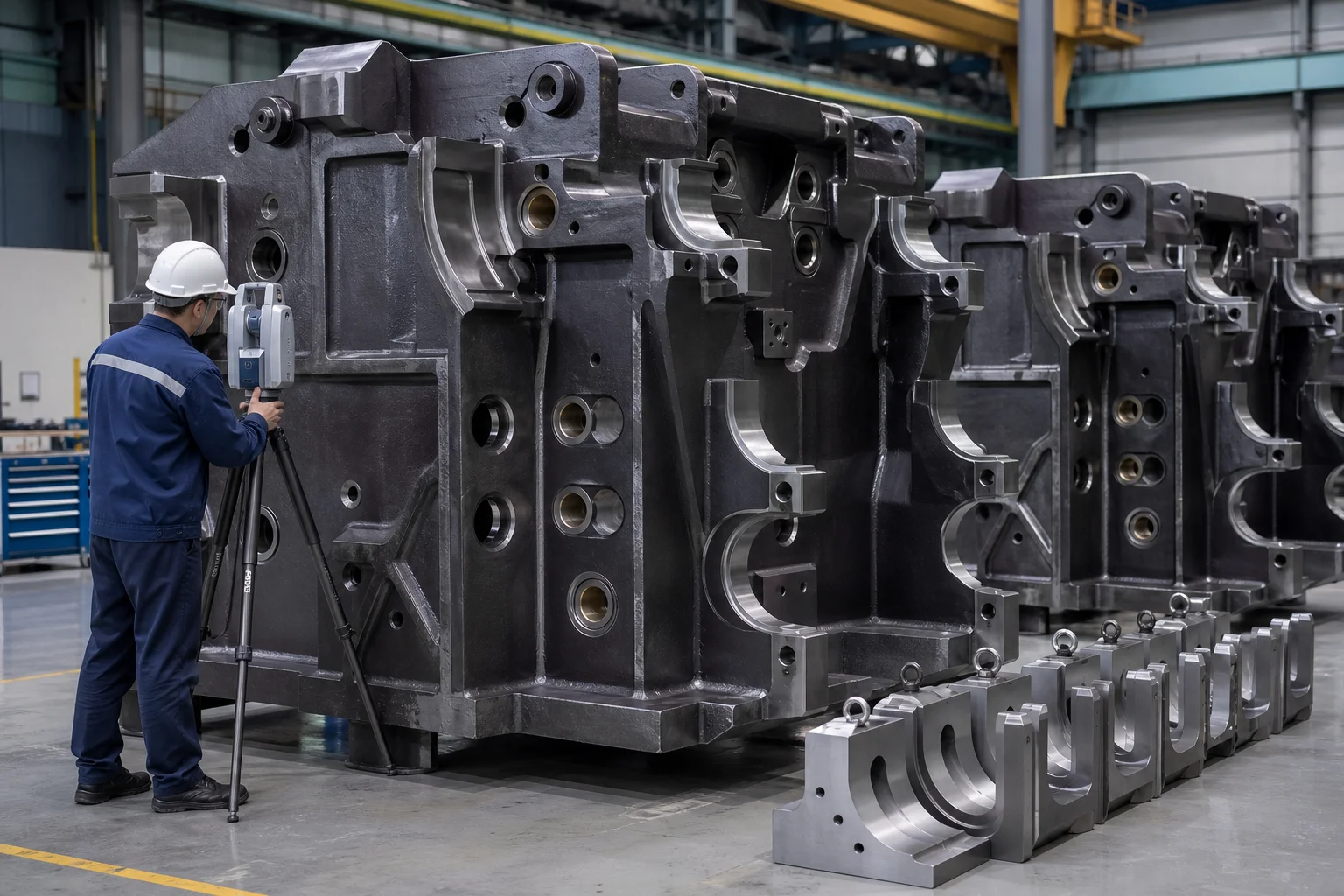

Heavy cast steel continuous casting machine CCM segment frame and stainless roll chocks

1. Operating Mechanical & Thermal Stress Fields in Continuous Casting

                     ┌──────────────────────────────────────────────┐
                     │ Molten Steel Solidification (1550 °C - 1000 °C)
                     └──────────────────────┬───────────────────────┘
                                            │
        ┌───────────────────────────────────┼───────────────────────────────────┐
        ▼                                   ▼                                   ▼
┌───────────────────────────────┐ ┌───────────────────────────────┐ ┌───────────────────────────────┐
│ Ferrostatic Bulging Pressure  │ │ Secondary Water Spray Corros  │ │ Thermal Cycling Frame Sag     │
│ (Liquid core pressure pushing │ │ (High-pressure acidic water   │ │ (Uneven thermal radiation     │
│  rolls and segment frames)    │ │  causing roll chock pitting)  │ │  causing segment misalignment)│
└───────────────────────────────┘ └───────────────────────────────┘ └───────────────────────────────┘

CCM Component	Operating Thermal & Dynamic Load	Critical Failure Mode to Prevent	Material Grade Solution
Slab CCM Segment Frame (Top/Bottom)	Ferrostatic bulging force + hydraulic cylinder clamping ( $> 2, 500 kN$ )	Frame beam deflection, joint fatigue cracking	High-Rigidity Cast Steel (GS-20Mn5 / ASTM A216 WCB)
Segment Roll Bearing Chocks (Split/Solid)	Direct secondary water spray ( $60 °C– 90 °C$ ) + scaling grit	Severe chloride crevice corrosion, bearing seizure	Cast Stainless Steel (ASTM A351 CF8M / 1.4408)
Oscillating Mold Water Jacket / Housing	High-frequency vertical oscillation (2–6 Hz) + $150 bar$ cooling	Fatigue cracking across water passage ribs	Ductile Iron (EN-GJS-500-7) / Cast Steel (WCB)
Segment Alignment Dowel Blocks & Links	Heavy shear locking between top and bottom frames	Link bending deformation, misalignment	Quenched & Tempered Alloy Steel (42CrMo4 / ZG35CrMo)

2. Alloy Metallurgy & Material Selection for CCM Castings

Material Selection Hierarchy for Continuous Casting Components:

Component Category	Material Standard	Equivalent Grade	Nominal Chemical Composition (wt%)	Heat Treatment	Mechanical Properties	Engineering Role
Heavy Segment Frames	ASTM A216 WCB / EN 10293 GS-20Mn5	ZG230-450 / 1.1120	$0.18 - 0.23 % C, 1.2 - 1.5 % Mn, \leq 0.50 % Si$	Normalized & Tempered	$R_{m} \geq 500 MPa, R_{p 0.2} \geq 300 MPa, A_{5} \geq 22 %$	Resists high ferrostatic bending; zero permanent frame sag
Roll Bearing Chocks	ASTM A351 CF8M / EN 10283 1.4408	GX5CrNiMo19-11-2	$\leq 0.08 % C, 18 - 21 % Cr, 9 - 12 % Ni, 2.0 - 3.0 % Mo$	Solution Annealed ( $1, 080 °C$ )	$R_{m} \geq 485 MPa, R_{p 0.2} \geq 205 MPa, A_{5} \geq 30 %$	Immune to secondary cooling water spray corrosion
Mold Backing Housings	EN-GJS-500-7 / GB QT500-7	GGG50 / 0.7050	$3.5 - 3.8 % C, 2.4 - 2.8 % Si, \leq 0.40 % Mn$	Ferritic-Pearlitic As-Cast	$R_{m} \geq 500 MPa, R_{p 0.2} \geq 320 MPa, A_{5} \geq 7 %$	High vibration dampening for mold oscillation
Tie Rods & Clamping Arms	ASTM A148 Gr 105-85 / 42CrMo4	1.7225 / ZG42CrMo	$0.38 - 0.45 % C, 0.9 - 1.2 % Cr, 0.2 - 0.3 % Mo$	Quenched & Tempered (Q&T)	$R_{m} \geq 750 MPa, R_{p 0.2} \geq 550 MPa, A_{5} \geq 16 %$	High tensile fatigue strength for hydraulic gap cylinders

Key Metallurgical Controls:

Sulfur & Phosphorus Purity ( $S, P \leq 0.015 %$ ): Ladle vacuum degassing (VD) eliminates hot tearing along complex internal water cooling rib intersections.
Charpy Impact Toughness: Normalized GS-20Mn5 cast steel delivers $\geq 35 J$ at $20 °C$ , preventing brittle cracking during sudden cold water emergency flushes.

3. High-Integrity Sand Molding & Internal Water-Cooling Coring

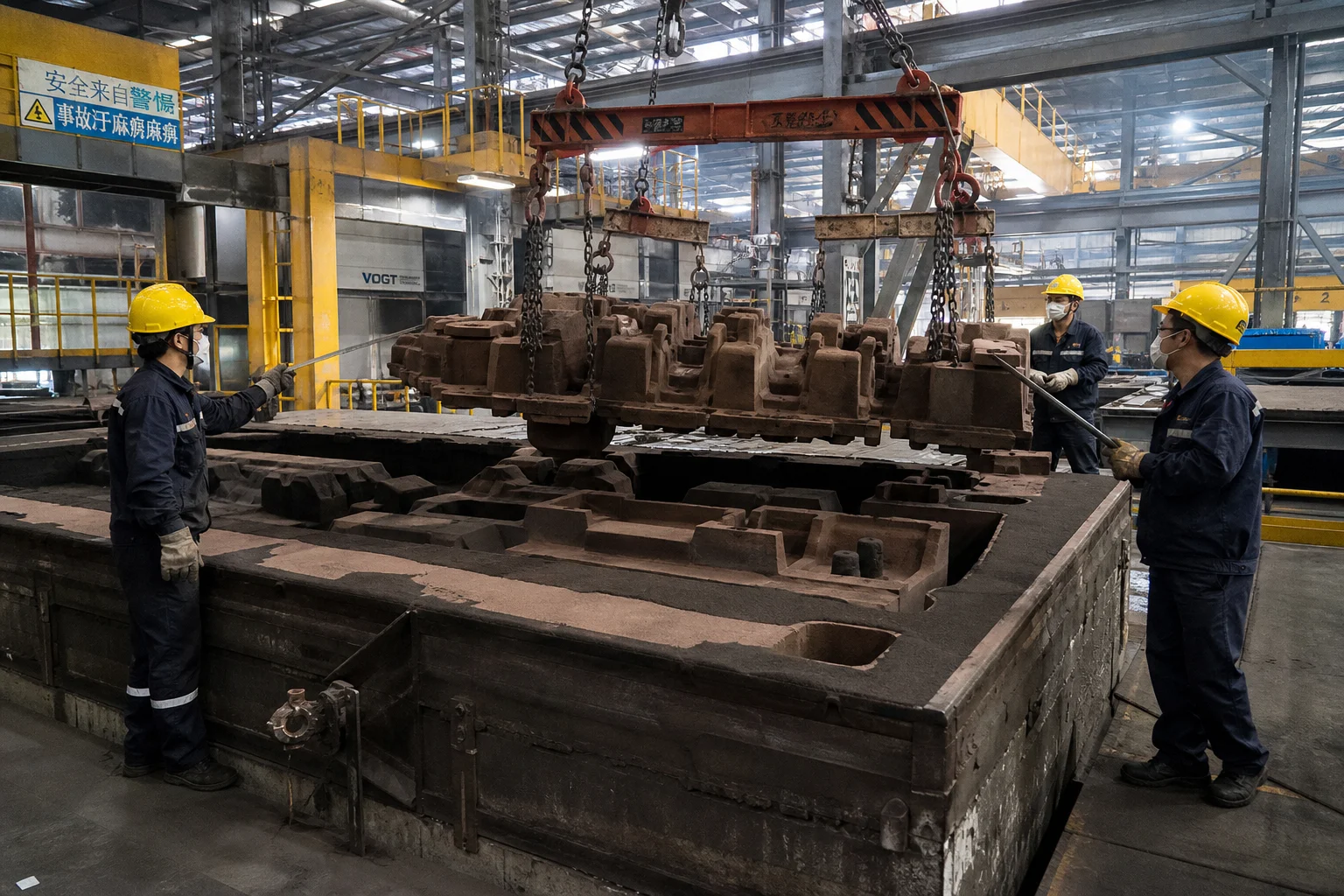

Automated sand molding and core setting for massive continuous casting machine segment frame

Segment frames feature complex hollow box sections with integrated internal cooling water channels and hydraulic piping ducts:

┌─────────────────────────────────────────────────────────────┐
│ 1. 3D Precision Master Tooling & Furan Resin Sand Molding   │
│    • High mold rigidity prevents mold wall deflection under │
│      massive 15-ton ferrostatic liquid steel pressure       │
├─────────────────────────────────────────────────────────────┤
│ 2. High-Strength Phenolic Cold-Box Cores for Water Channels │
│    • Cast-in internal water cooling galleries; zero core    │
│      shifting or sand sintering                             │
├─────────────────────────────────────────────────────────────┤
│ 3. CAE Solidification Modeling & Exothermic Feeder Sleeves  │
│    • Feeder risers located over heavy bearing saddle bosses │
│    • Eliminates internal shrinkage porosity at bearing seats│
├─────────────────────────────────────────────────────────────┤
│ 4. Tangential Bottom Ingate System with Ceramic Filtration  │
│    • Non-turbulent, clean metal entry; zero slag inclusion  │
└─────────────────────────────────────────────────────────────┘

4. In-Line Multi-Roll CNC Line-Boring & Frame Finishing

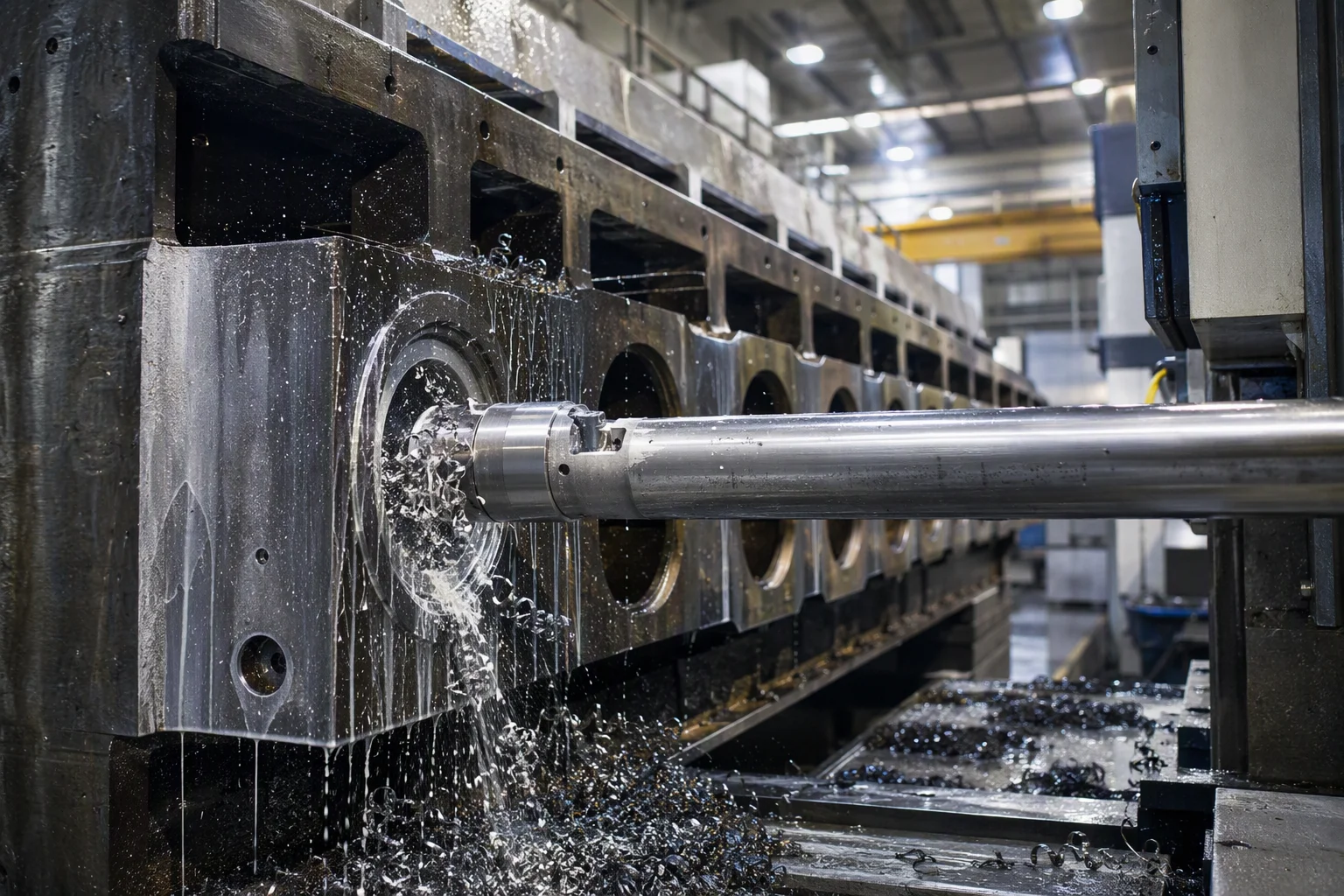

Heavy CNC horizontal boring mill precision in-line boring multi-roll bearing seats of CCM frame

Slab quality (internal cracks and center segregation) depends strictly on roll gap taper and roll-to-roll parallel alignment:

        ┌───────────────────────────────────────────────────────┐
        │ 1. Full Stress-Relief Annealing (600 °C – 650 °C)     │
        │ • Eliminates casting stresses; guarantees zero drift  │
        └──────────────────────────┬────────────────────────────┘
                                   │
                                   ▼
        ┌───────────────────────────────────────────────────────┐
        │ 2. Heavy CNC Gantry Milling Center Operations         │
        │ • Precision face milling of top/bottom split pads     │
        │ • Hydraulic cylinder mounting face machining          │
        └──────────────────────────┬────────────────────────────┘
                                   │
                                   ▼
        ┌───────────────────────────────────────────────────────┐
        │ 3. In-Line Multi-Spindle Horizontal Line-Boring       │
        │ • Line-boring 4 to 12 bearing saddle pockets in one   │
        │   continuous setup across 8 to 12-meter frames        │
        │ • Coaxiality and roll centerline pitch $\le 0.035\text{ mm}$│
        │ • Bearing bore roundness $\le 0.020\text{ mm}$ (ISO H7)   │
        └───────────────────────────────────────────────────────┘

5. Hydrostatic Water Jacket Pressure Testing & Quality Assurance

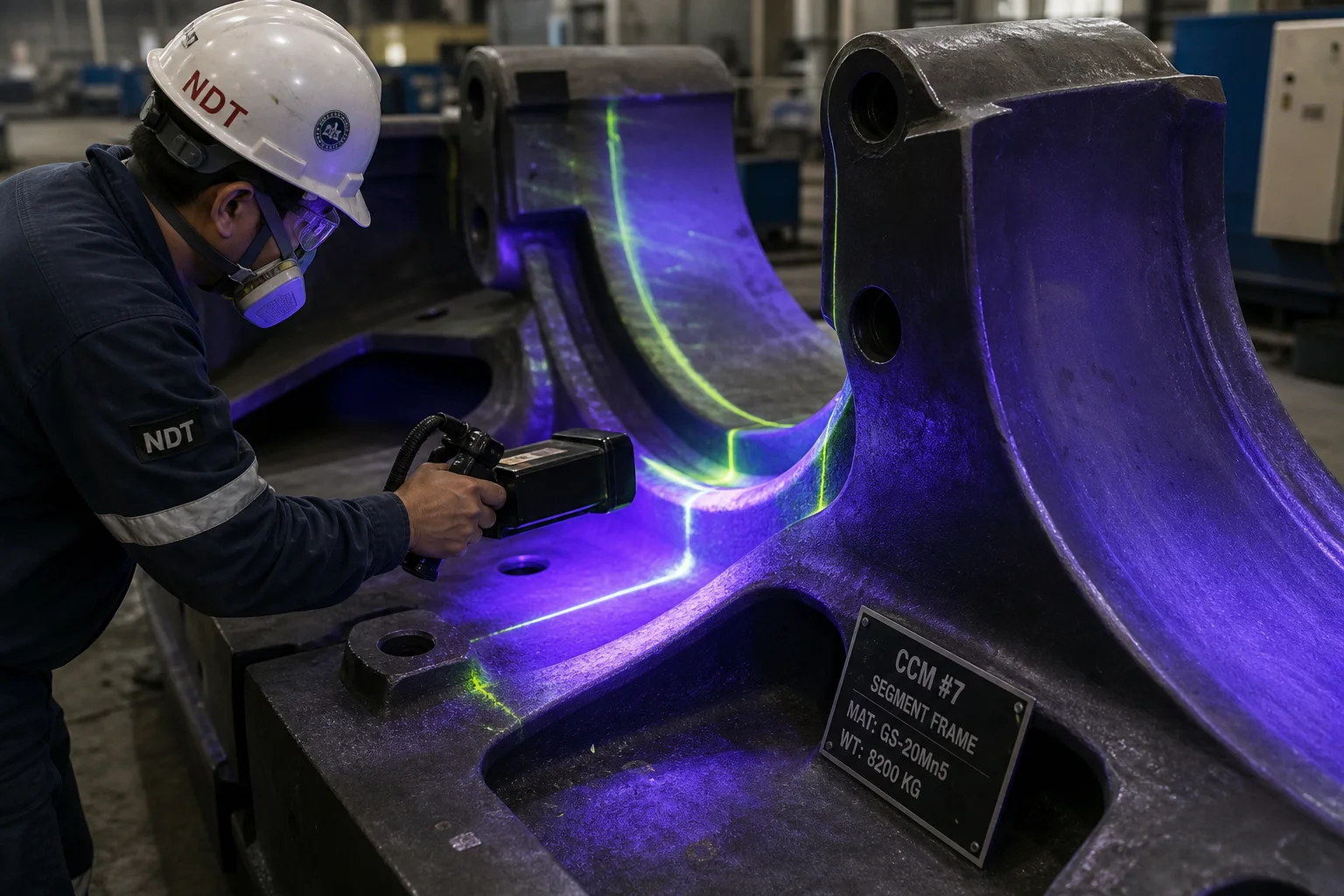

Quality inspector conducting fluorescent magnetic particle inspection MT on CCM segment fillets

Quality Inspection Parameter	Testing Standard	Acceptance Criteria
Internal Water Passage Hydro Test	Factory Standard Hydro-Bench	$16 bar$ water pressure held for $> 30 minutes$ ; zero pressure drop, zero sweating
Ultrasonic Testing (UT)	EN 10228-3 Class 3 / ASTM A609 Level 1	100% volumetric scan on roll bearing saddles, cylinder lugs, and lifting trunnions
Magnetic Particle Testing (MT)	EN 10228-1 / ASTM E709 (Fluorescent)	100% inspection of all machined bearing pockets, structural ribs, and weld joints; zero cracks
3D Laser Tracker Alignment	3D Laser Tracker (SpatialAnalyzer)	Roll center-to-center pitch ( $\pm 0.05 mm$ ), frame diagonal squareness ( $\leq 0.10 mm$ )
Mechanical Property Verification	ISO 6892-1 / ASTM E23 on attached coupons	Verified $R_{m}, R_{p 0.2}, A_{5}$ ; Charpy impact $\geq 35 J$ at $20 °C$

6. CCM Casting Manufacturing at Dandong City Pengxin Machinery Co., Ltd.

Manufacturing heavy continuous casting machine components requires massive crane lifting capacity, large floor-type CNC boring mills, certified heat treatment facilities, and complete NDT inspection bays.

Dandong City Pengxin Machinery Co., Ltd. delivers fully certified, turnkey finished CCM segment frames, roll chocks, and mold housings:

Heavy Tonnage Production Infrastructure: 80,000 m² heavy casting plant with dual overhead cranes capable of pouring single steel castings from 1 ton up to 25 tons.

Material Versatility: Certified production of GS-20Mn5, ASTM A216 WCB, corrosion-resistant CF8M stainless steel, and ductile irons (QT500-7).

Large-Envelope CNC Gantry & Line-Boring Centers: Heavy CNC gantry milling machines and horizontal boring mills delivering multi-roll bearing alignment within $\leq 0.035 mm$ across 12-meter frames.

In-House Hydrostatic Pressure Testing: Dedicated high-pressure water test benches verifying internal cooling passage integrity up to $25 bar$ .

Complete Quality Certification: ISO 9001 certified, providing full EN 10204 3.1 & 3.2 material test certificates, 100% UT/MT reports, and 3D laser tracker alignment records.

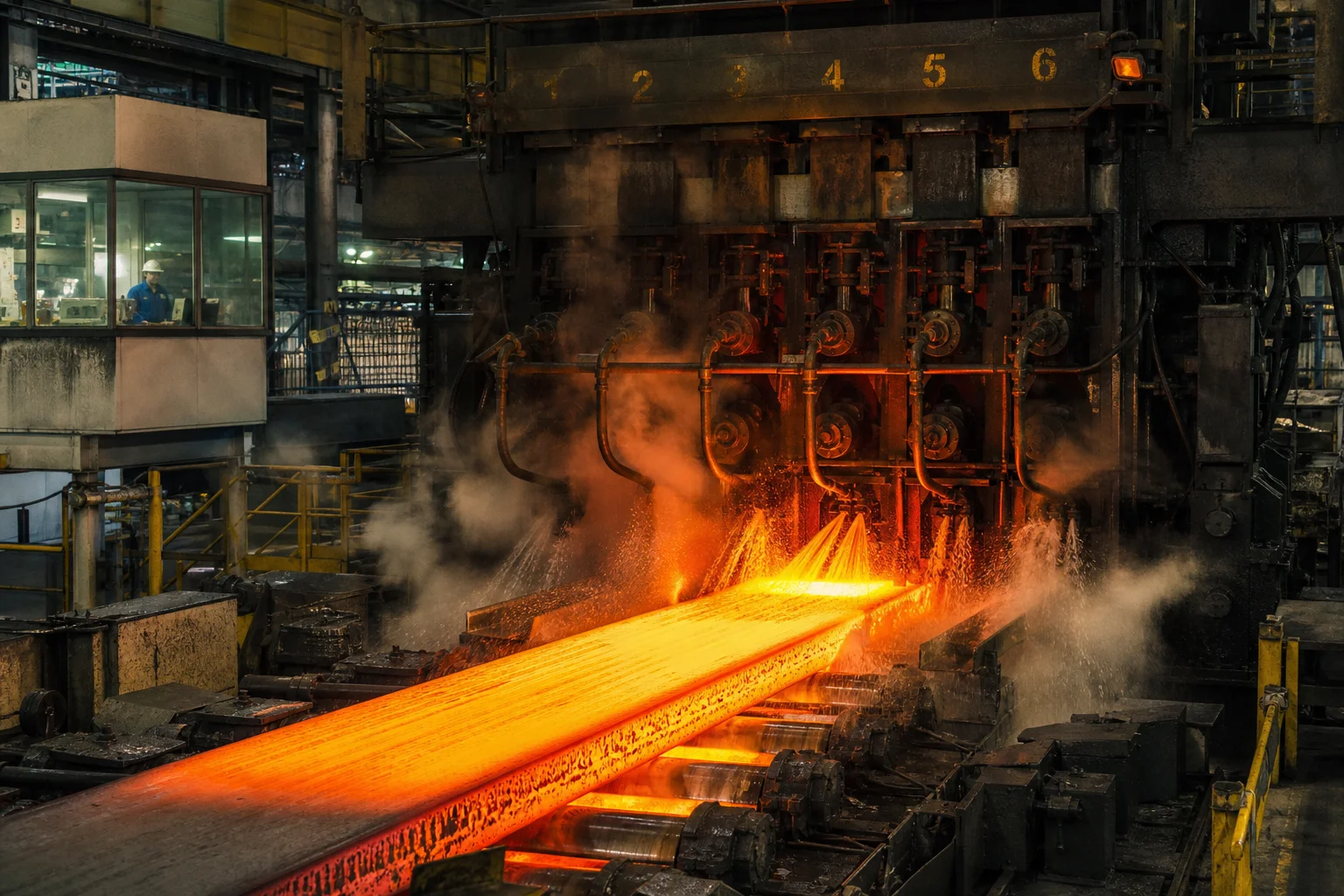

Modern steel mill continuous slab casting machine operating with red-hot glowing steel slab

Conclusion

Continuous casting machine segment frames and mold housings operate at the extreme crossroads of high-temperature thermal cycling, heavy ferrostatic bulging pressures, and aggressive cooling water corrosion. Delivering world-class slab surface quality and preventing catastrophic liquid steel breakout accidents demands clean vacuum-degassed cast steel metallurgy (GS-20Mn5 / WCB), stainless roll chocks (CF8M), precision CNC in-line multi-roll boring, and 100% hydrostatic water jacket verification.

Partnering with an experienced, integrated heavy casting and precision machining powerhouse ensures that your continuous casters run with maximum campaign longevity, zero unplanned breakouts, and superior slab internal quality.

Contact Dandong City Pengxin Machinery Co., Ltd. to submit your CCM segment frame or roll chock drawings.

Dandong City Pengxin Machinery Co., Ltd. — Heavy Castings and Precision Machining, Since 1958.
