From Casting to Precision Component: How CNC Machining Elevates Metal Casting Quality

Meta Description: Discover how CNC machining transforms rough metal castings into high-precision industrial components. Learn about processes, tolerances, material compatibility, and how to choose a foundry with integrated machining capabilities.

---

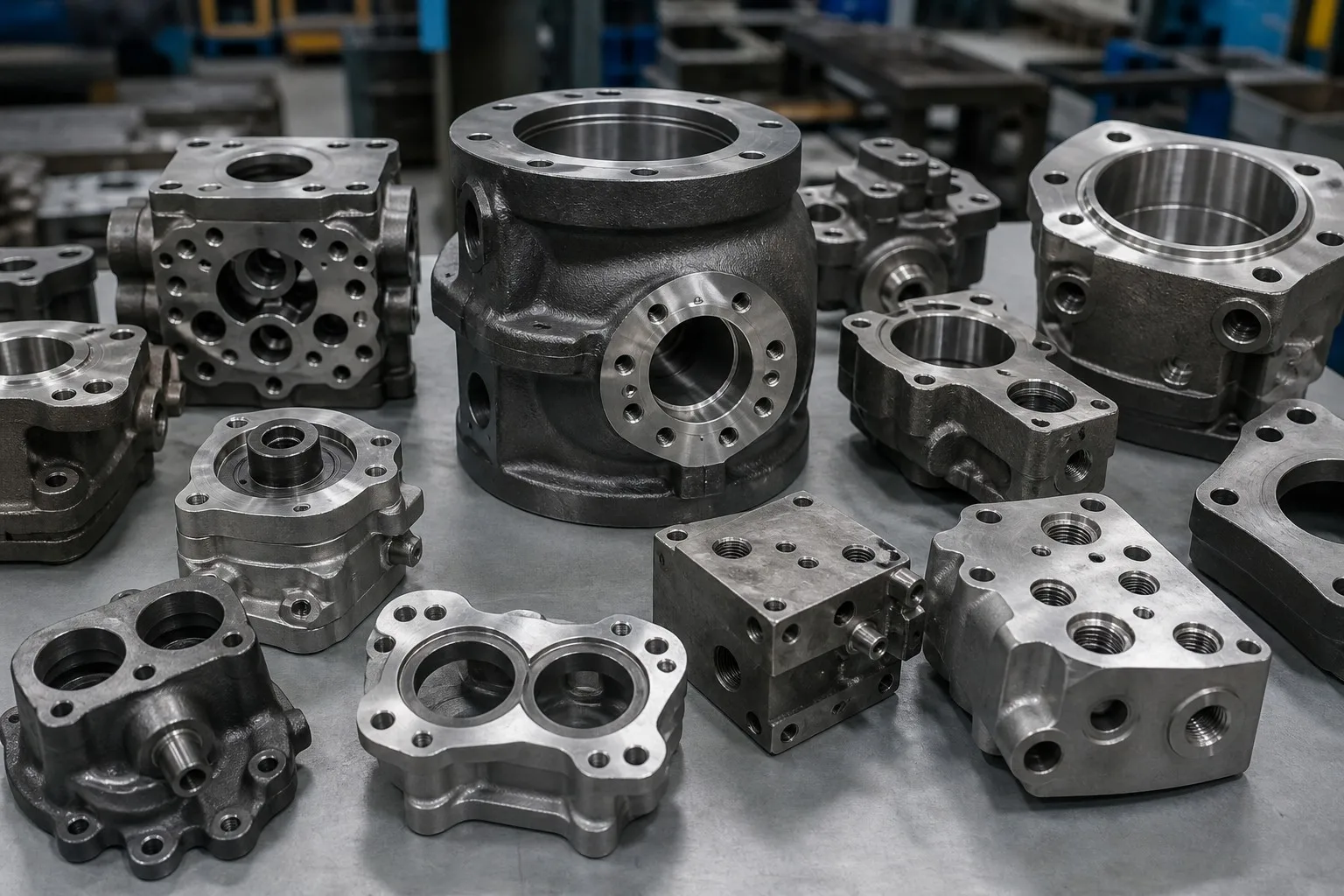

Casting alone rarely delivers a finished part. Whether produced through sand casting, investment casting, or shell mold casting, raw castings almost always require secondary machining to achieve the dimensional accuracy, surface finish, and functional features that modern engineering demands. This is where CNC machining for metal castings becomes essential — bridging the gap between as-cast geometry and a production-ready component.

In this comprehensive guide, we will explore how precision CNC machining enhances metal casting quality across multiple industries, what processes are commonly used, how tolerances and surface finishes are achieved, and what to look for when selecting a foundry with integrated machining capabilities.

---

Why Metal Castings Need CNC Machining

Even the most advanced casting processes have inherent limitations. Understanding these limitations helps explain why machining is a necessary downstream step.

The Reality of As-Cast Parts

The Cost Equation

A common misconception is that adding machining steps increases total cost. In practice, combining casting with in-house CNC machining often reduces overall part cost because:

1. Near-net-shape casting minimizes raw material waste compared to machining from solid billet.
2. Integrated workflow eliminates transportation, third-party markups, and quality handoff risks.
3. Reduced lead time when both processes are managed under one roof.

For complex geometries, the alternative — machining entirely from bar stock or plate — can produce 60–80% material waste. Casting plus finish machining typically generates less than 15% material waste by comparison.

---

CNC Machining Processes for Cast Components

Different casting materials and part geometries call for different machining strategies. Here are the primary CNC processes applied to cast metal parts.

CNC Milling (3-Axis, 4-Axis, and 5-Axis)

CNC milling is the most widely used machining process for cast components. It excels at creating flat surfaces, pockets, slots, and contoured profiles.

• 3-axis milling: Suitable for flat faces, drilling, and simple pocketing on smaller castings. Ideal for valve bodies, pump housings, and bracket components.
• 4-axis milling: Adds rotary capability for machining features on multiple faces without re-fixturing. Common for manifolds and housings with intersecting bores.
• 5-axis milling: The gold standard for complex castings. Eliminates multiple setups, achieves complex compound angles in a single operation, and is essential for turbine housings, impellers, and aerospace structural castings.

Key advantage for castings: 5-axis machines can machine datum surfaces, bores, and sealing faces in one setup, dramatically improving positional accuracy between features — critical for components like turbocharger exhaust housings, where the turbine inlet flange, wastegate port, and V-band outlet must all align precisely.

CNC Turning

For rotationally symmetrical castings — such as flanges, hubs, pulleys, and bearing housings — CNC turning delivers superior concentricity and surface finish.

• Rough turning: Removes the casting skin and gate residue to establish clean reference surfaces.
• Finish turning: Achieves final dimensions with tight tolerances, often below ±0.01 mm for bearing seats and seal diameters.
• Live tooling: Modern CNC lathes with driven tools can drill, tap, and mill features on cylindrical castings without transferring to a mill, preserving concentricity.

CNC Boring

Large castings — such as slag pot trunnions, gearbox housings, and pump casings — often contain deep precision bores that cannot be efficiently produced by standard milling tools.

• Line boring: Used for bearing housings and split-case components where bores must be precisely aligned across assembled halves.
• Horizontal boring mills: Ideal for large, heavy castings (500 kg to 20,000+ kg) where the part remains stationary and the spindle moves.

Drilling, Tapping, and Thread Milling

Threaded features are nearly impossible to cast with functional accuracy. CNC drilling and tapping operations produce:

• Standard thread forms (Metric M, UNC/UNF, BSP, NPT)
• Thread milling for large-diameter or high-precision threads
• Helicoil and thread insert installation for soft materials like aluminum castings

Surface Grinding

For applications demanding extreme flatness (below 0.01 mm) and surface finish (Ra 0.2 μm or better), surface grinding is the finishing step after milling. Common on:

• Valve body flange faces requiring a pressure-tight metal-to-metal seal
• Pump wear plates and thrust faces
• Gasket sealing surfaces on pressure vessels

---

Material Considerations for Machining Cast Parts

Not all cast materials machine equally. The metallurgical structure formed during solidification directly affects tool wear, cutting speeds, and achievable surface finish.

Steel Castings

Iron Castings

Best Practices

1. Stress-relieve before machining: Castings contain residual thermal stresses. A stress-relief anneal (typically 550–650 °C for steel, 500–600 °C for iron) before rough machining prevents distortion during metal removal.
2. Rough before heat treat: Remove the casting skin and establish reference datums while the material is in its annealed condition, then heat-treat to final properties before finish machining.
3. Match tooling to the skin: As-cast surfaces often contain sand inclusions, scale, and a harder surface layer. Use tougher carbide grades (e.g., P30–P40 ISO) for the first cut, then switch to wear-resistant grades (P10–P20) for finish passes.

---

Tolerances and Surface Finishes: What to Expect

Achievable Tolerances

The combination of casting + CNC machining can achieve tolerances that neither process can reach alone:

Note: Tolerances apply after final machining and assume a stable, stress-relieved casting. Tighter tolerances (below ±0.01 mm) require climate-controlled inspection and may not be practical for large castings due to thermal expansion.

GD&T in Casting Datum Strategy

A well-designed casting drawing uses Geometric Dimensioning and Tolerancing (GD&T) to define a machining datum strategy:

1. Primary datum: Typically the largest flat machined surface (mounting face).
2. Secondary datum: A machined bore or edge perpendicular to the primary datum.
3. Tertiary datum: A third machined feature that constrains rotation.

This datum reference frame must be machined first — often called the "qualifying" or "spot-facing" operation — and all subsequent features are machined relative to these references.

---

Quality Control in the Casting-to-Machining Workflow

Quality cannot be inspected into a part after machining — it must be built into the process at every stage.

Pre-Machining Inspection

Before a casting reaches the CNC machine, verify:

In-Process Control

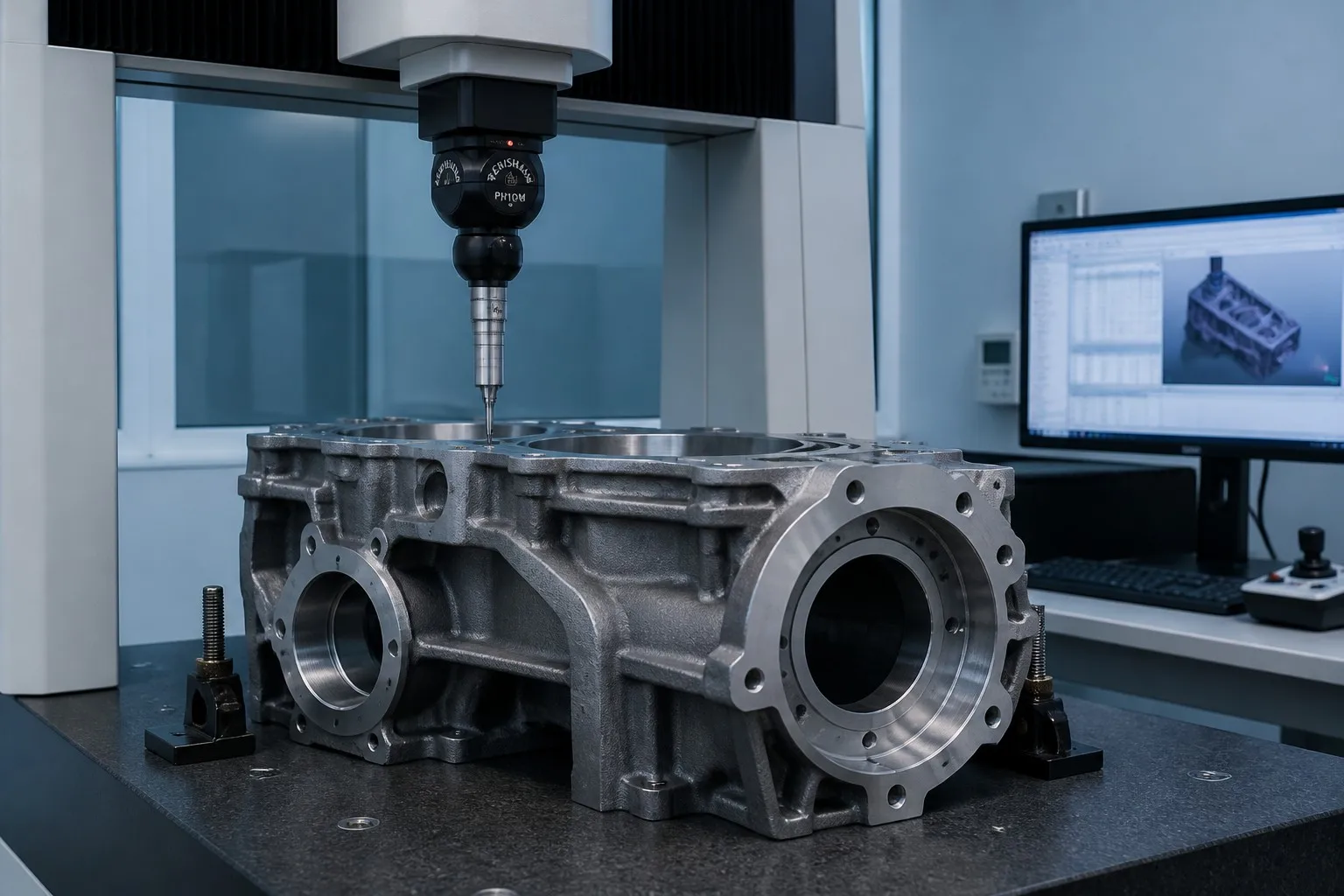

• First-article inspection (FAI): The first machined part from each batch undergoes full CMM dimensional verification against the drawing.
• In-process probing: Modern CNC machines use Renishaw-style touch probes to verify datum positions and critical features between operations, automatically compensating for minor fixture offsets.
• Tool wear monitoring: Automated tool life management prevents dimensional drift from worn cutting tools.

Final Inspection

Documentation

For critical applications (automotive IATF 16949, oil and gas API, pressure equipment PED), expect complete traceability:

• Material certificates (EN 10204 3.1 or 3.2)
• Dimensional inspection reports with ballooned drawings
• NDT reports
• PPAP (Production Part Approval Process) Level 3 documentation

---

Industry Applications

The combination of casting and CNC machining serves virtually every heavy industrial sector. Here are representative applications:

Automotive and Commercial Vehicle

• Exhaust manifolds (SiMo ductile iron, cast stainless steel): Cast to near-net shape, then CNC machined for turbocharger mounting flanges, EGR ports, and gasket surfaces. Flatness tolerances of 0.05 mm across the flange face are typical.
• Turbocharger housings (high-nickel cast iron, stainless steel): 5-axis machined for precise turbine inlet geometry and V-band connections.
• Brake calipers and steering knuckles: Investment cast or sand cast, then multi-axis machined for bore concentricity and thread precision.
• Differential housings and transmission cases: Large sand castings machined on horizontal machining centers for bearing bore alignment.

Heavy Equipment and Mining

• Slag pot bodies and trunnions (cast steel): Massive castings weighing 5–25+ tons, machined on large horizontal boring mills for trunnion bearing seats and pouring lip geometry.
• Bucket teeth and wear plates (manganese steel, alloy steel): Investment cast, then machined for mounting interfaces.
• Crusher wear parts: Minimal machining required; primarily grinding of mounting faces.

Oil and Gas

• Valve bodies and bonnets (WCB, CF8M, duplex stainless): Sand cast or investment cast, then CNC machined for seat pockets, stem bores, flange faces, and pressure seal areas. Surface finishes to Ra 0.8 μm or better on gate and seat contact surfaces.
• Pump casings and impellers (CF8M, CD4MCu, duplex): 5-axis machined for complex impeller vane profiles; casing bolt patterns and seal faces machined to tight flatness.
• Wellhead components: Investment cast or sand cast, then extensively machined with multiple intersecting bores and thread forms (API line pipe, casing, and tubing threads).

Railway

• Bogie frames and side frames: Large steel castings machined for axle box interfaces and bolster mounting surfaces.
• Coupler components: Investment cast alloy steel, machined for critical wear surfaces and pivot bores.
• Brake system components: Ductile iron castings machined for pneumatic sealing surfaces.

Power Generation

• Turbine casings and diaphragms (Cr-Mo alloy steel, stainless steel): Large sand castings machined on gantry mills and vertical boring mills.
• Hydroelectric turbine components (stainless steel): 5-axis machined for blade profiles and hub interfaces.

Construction and Infrastructure

• Cast iron tubing segments (tubbing rings) for tunnel construction: Cast in gray or ductile iron, machined for bolting flanges and circumferential joint surfaces that must form a watertight seal when assembled.
• Pipe fittings and flanges: Sand cast, then machined for flange faces, bolt holes, and gasket grooves.

---

Choosing a Foundry with In-House Machining

When sourcing cast-machined components, the single most impactful decision is whether to work with a foundry that offers integrated machining services or to manage casting and machining through separate suppliers.

Advantages of an Integrated Supplier

Questions to Ask a Potential Supplier

1. What CNC equipment do you operate in-house? Look for 5-axis capability, large-capacity horizontal boring mills (for castings over 1 ton), and live-tooling CNC lathes.
2. Do you perform heat treatment in-house? Integrated heat treatment avoids transportation delays and ensures proper sequencing between casting, heat treat, and machining.
3. What inspection equipment do you have? A CMM (preferably bridge-type or gantry for large parts), spectrometer, hardness tester, and surface roughness tester are minimum expectations. For pressure-containing parts, hydrostatic test capability is essential.
4. What certifications do you hold? ISO 9001 is the baseline. Industry-specific certifications (IATF 16949 for automotive, PED/AD2000 for pressure equipment, DNV/GL for marine) indicate a mature quality system.
5. Can you provide PPAP or FAI documentation? For production parts, the ability to deliver Level 3 PPAP documentation demonstrates process control maturity.
6. What is your capacity for similar parts? Ask for examples of cast-machined components similar to yours in terms of weight, material, and complexity.

Red Flags

• The supplier outsources all machining to third parties
• No CMM or inadequate inspection equipment
• Inability to provide material certifications with heat numbers
• No documented process for production part approval
• Unwillingness to share process capability data (Cpk/Ppk)

---

Trends Shaping Casting and Machining Integration

Automation and Robotics

The trend toward automated machine tending — where robots load raw castings into CNC machines and unload finished parts — is reducing labor costs and improving consistency. Automated cells with in-machine probing can run lights-out, producing 24/7 with minimal human intervention.

Hybrid Manufacturing

Emerging hybrid systems combine additive manufacturing (3D printing) with CNC machining in a single machine. While primarily used for prototyping, hybrid systems are beginning to make inroads into pattern and core production for sand casting, accelerating new product development cycles.

Digital Twin and Simulation

Casting simulation software (MAGMASOFT, ProCAST) now interfaces with CAM programming, allowing foundries to predict where machining allowances should be increased to compensate for casting distortion. This "right-first-time" approach reduces trial-and-error and shortens new part qualification from months to weeks.

Sustainability Drivers

Near-net-shape casting combined with precision machining is inherently more material-efficient than subtractive-only manufacturing. As carbon accounting becomes standard in supply chain management, cast-machined components have a demonstrably lower carbon footprint than fully machined alternatives.

---

Conclusion

The seamless integration of metal casting and CNC machining is not a luxury — it is the defining capability that separates commodity foundries from strategic manufacturing partners. When a single facility manages the entire journey from molten metal to finished, inspected component, the result is shorter lead times, lower total cost, and measurably higher quality.

Whether you need a single prototype or a 10,000-unit production run, choosing a supplier with deep casting expertise and precision machining capability under one roof eliminates the most common source of supply chain friction: the handoff between processes that each assume the other will fix the problems.

Key takeaways:

• CNC machining is essential for achieving functional tolerances, surface finishes, and features that casting alone cannot deliver.
• In-house machining capability at the foundry eliminates transport costs, quality disputes, and multi-supplier coordination overhead.
• Material choice directly affects machinability — consult with your supplier early in the design phase.
• Demand complete documentation: material certs, dimensional inspection reports, and NDT results as standard deliverables.
• Look for process integration: stress relieving, heat treating, machining, and inspection should flow in a single, traceable sequence.

---
