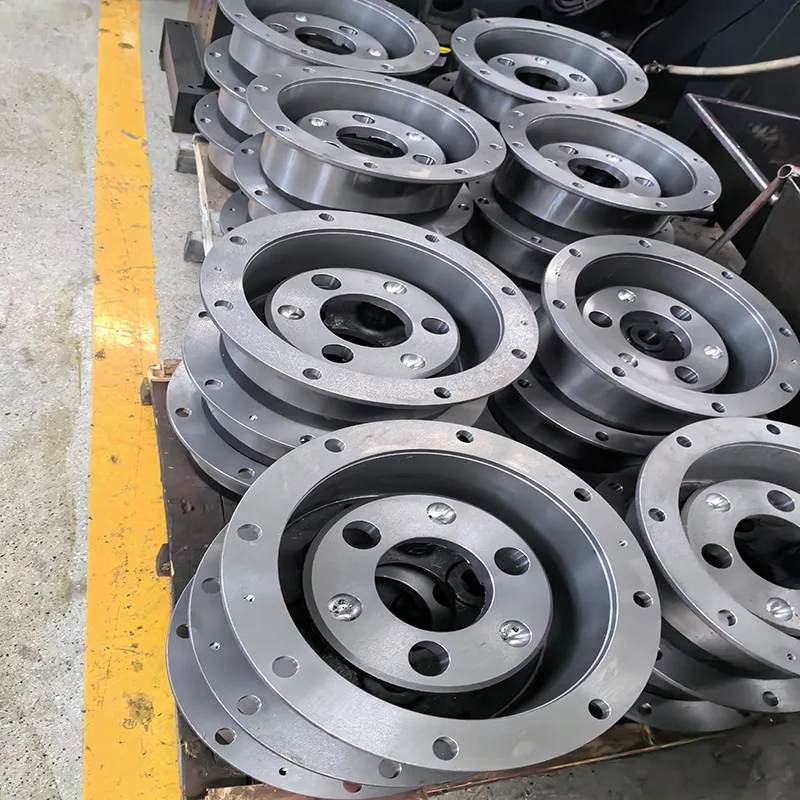

In complex piping systems across industries, reliable connections are paramount. Our specialized casting services deliver Customized Ductile Cast Iron Flange Adapters engineered to bridge different standards, pressures, and materials with uncompromising integrity. As a premium provider, we combine advanced metallurgy with precision manufacturing to create adapters that ensure leak-free performance and long-term reliability in demanding fluid handling applications.
Premium Material: High-Grade Ductile Iron
We utilize GGG40/50/60 ductile iron (also called nodular iron) per ISO 1083 standards, with mechanical properties tailored to application requirements:
GGG40: Minimum tensile strength 400 MPa, yield strength 250 MPa, elongation 15%
GGG50: Minimum tensile strength 500 MPa, yield strength 300 MPa, elongation 7%
GGG60: Minimum tensile strength 600 MPa, yield strength 370 MPa, elongation 3%
The spheroidal graphite microstructure provides exceptional impact resistance (up to 25 J at -20°C per EN 1563) and fatigue strength, while maintaining the corrosion resistance and castability of traditional cast iron. Optional austempered ductile iron (ADI) grades offer further enhanced strength-to-weight ratios for specialized applications.
Advanced Manufacturing Process
Our integrated production system ensures dimensional precision and material integrity:
Casting Technology
Resin sand molding with 3D-printed patterns for rapid prototyping
Controlled pouring at 1420-1480°C with magnesium treatment for proper nodularization
In-mold and post-inoculation for consistent graphite formation
Real-time thermal monitoring during solidification
Precision Machining
5-axis CNC machining of flange faces and bolt circles
Boring operations maintaining concentricity within 0.05 mm TIR
Surface grinding for Ra 3.2 μm finish on sealing surfaces
Thread machining to ISO 7/1 standards for pressure-tight connections
Performance Characteristics
Our ductile iron flange adapters deliver:
Pressure ratings: PN10 to PN40 (150-600 psi)
Temperature range: -30°C to 350°C
Superior corrosion resistance with optional epoxy, nickel, or zinc coatings
Dimensional compliance with ASME B16.1, EN 1092, and other international standards
Full traceability with material certification and heat code identification
Comprehensive Applications
These adapters serve critical functions in:
Water and wastewater treatment plants
Oil and gas pipeline connections
Chemical processing equipment
Power generation cooling systems
Industrial pump and valve installations
Marine and offshore piping systems
Each adapter undergoes rigorous quality verification:
Dimensional inspection using CMM technology
Liquid penetrant or magnetic particle examination
Hydrostatic testing to 1.5x rated pressure
Microstructure analysis and hardness mapping
Our engineering team collaborates with clients to design adapters for specific service conditions, considering factors including pressure cycling, thermal expansion, and external loading. By combining premium ductile iron with precision manufacturing, we deliver flange adapters that ensure reliable, long-lasting connections while reducing maintenance costs and downtime across industrial piping networks.
