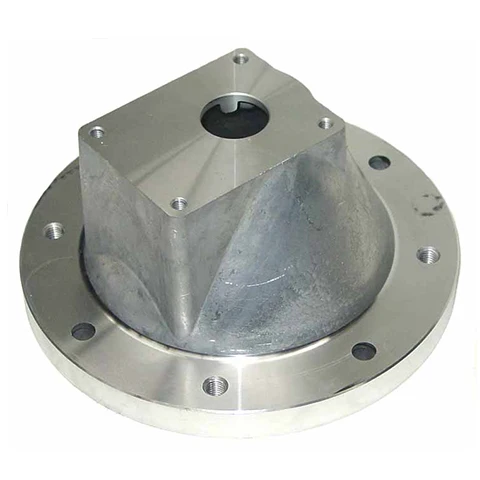

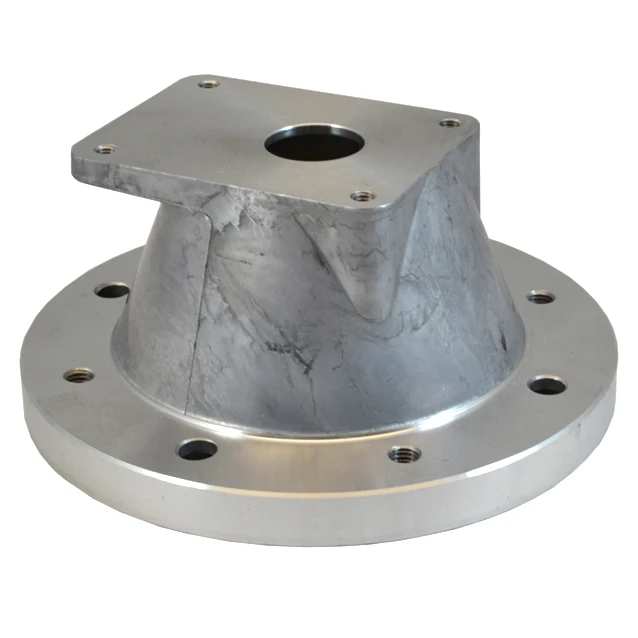

Custom Non-Standard Aluminum Bell Housing Sand Casting Parts Premium Casting Services

In automotive and industrial powertrain systems, bell housings serve as critical structural components that ensure precise alignment between engines and transmissions while providing essential protection for clutch assemblies. Our premium casting services specialize in manufacturing custom non-standard aluminum bell housings through advanced sand casting processes, delivering components that combine lightweight construction with exceptional strength and dimensional accuracy for specialized applications where off-the-shelf solutions are insufficient.

Advanced Aluminum Alloy Selection
We utilize high-performance aluminum alloys specifically engineered for structural automotive applications:

• A356-T6 Aluminum: Premium heat-treatable alloy offering excellent strength-to-weight ratio and superior fatigue resistance

• A357-T6 Aluminum: Enhanced version with beryllium-free composition for improved casting characteristics

• 319 Aluminum: Superior castability for complex geometries with good mechanical properties

• Custom Alloy Formulations: Tailored compositions with strategic element additions for specific strength, thermal, or weight requirements

All materials undergo comprehensive quality verification including spectral analysis, mechanical testing, and microstructural examination to ensure consistent performance in demanding powertrain applications.

Precision Sand Casting Manufacturing Process
Our integrated production system ensures dimensional accuracy and metallurgical integrity:

1. Pattern & Mold Engineering

   • CNC-machined patterns with precise shrinkage allowances and draft angles

   • 3D printed prototypes for design validation and fitment verification

   • Resin sand molding technology for superior surface finish and dimensional stability

2. Casting Excellence

   • Controlled pouring with degassing and filtration systems

   • Real-time thermal monitoring during solidification

   • Optimized gating and risering systems for sound casting structure

   • Protective atmosphere pouring to minimize oxide formation

3. Heat Treatment Process

   • Solution heat treatment at controlled temperatures

   • Quenching media optimization for minimal distortion

   • Artificial aging to achieve specified temper properties

   • Stress relieving for dimensional stability in machined components

4. Precision Machining

   • CNC machining of critical mounting surfaces and register diameters

   • Precision boring of input shaft and clutch housing cavities

   • Milling of structural ribs and mounting bolt patterns

   • Coordinate measuring machine verification of critical dimensions

Performance Advantages

• Lightweight Construction: Significant weight reduction compared to cast iron alternatives

• High Strength-to-Weight Ratio: Robust structural integrity with minimal mass penalty

• Excellent Dimensional Stability: Maintains critical alignment specifications under thermal and load variations

• Superior Vibration Damping: Effectively absorbs powertrain vibrations and harmonics

• Custom Design Flexibility: Accommodates unique mounting configurations and spatial requirements

Quality Assurance Protocol

• IATF 16949 certified quality management system

• First article inspection with comprehensive PPAP documentation

• Dimensional validation using optical scanning and CMM technology

• X-ray inspection for internal soundness verification

• Pressure testing and leak detection capabilities

• Complete material traceability and certification

Technical Applications

• Specialized automotive and racing transmissions

• Heavy-duty commercial vehicle powertrains

• Industrial machinery and equipment drives

• Marine propulsion systems

• Agricultural and construction equipment

Our engineering team provides comprehensive design support from initial concept through production, ensuring optimal performance for your specific bell housing requirements. We maintain flexible production capabilities for low-volume specialized applications and prototype development, with full compliance with automotive industry standards. Contact our technical specialists today to discuss your custom non-standard bell housing needs and discover how our premium aluminum sand casting services can provide innovative solutions for your unique powertrain challenges.
