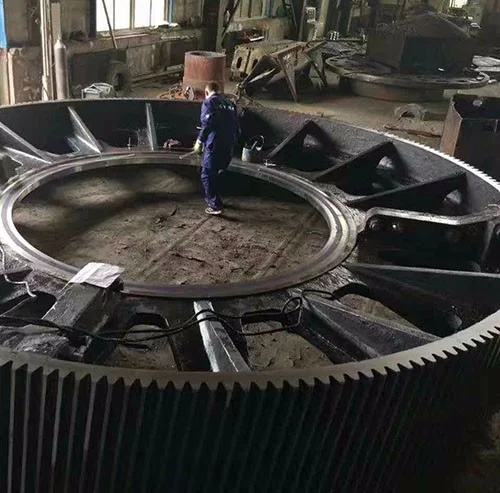

Cast Steel Shaft Pinion and Gear Heavy-Duty Big Part for Casting Services

In industries where reliability under extreme conditions is non-negotiable, cast steel shaft pinions and gears stand as critical power transmission components. These heavy-duty big parts, manufactured through advanced casting services, deliver exceptional strength, durability, and precision for machinery operating under high loads and stressful environments. Combining robust material properties with specialized production processes, they ensure optimal performance in sectors like mining, heavy machinery, and industrial manufacturing.

Advanced Material Properties

Cast steel shaft pinions and gears are typically crafted from high-strength cast steel grades, primarily carbon steel and low-alloy steel -2-6. These materials are selected for their superior mechanical properties:

• High Tensile Strength: Withstands extreme dynamic loads without deformation -2.

• Excellent Impact Toughness: Absorbs shock loads in heavy-duty operations, reducing failure risks -6.

• Enhanced Wear Resistance: Prolongs service life in high-friction environments -6.

• Customizable Compositions: Alloying elements like chromium and molybdenum can be added to improve hardness or corrosion resistance -6.

Compared to iron castings, cast steel offers better plasticity and toughness, making it ideal for components subjected to repetitive stress -2. Its mechanical properties are also more uniform across different directions than forged parts, ensuring consistent performance in complex gear geometries -2.

Precision-Driven Manufacturing Process

The production of these components integrates rigorous quality control with state-of-the-art foundry and machining technologies:

1. Casting Process:

   • Molten steel is poured into resin-bonded sand molds to form near-net-shape parts -2.

   • Techniques like gating and risering minimize shrinkage defects, ensuring dense internal structures -2.

2. Heat Treatment:

   • Normalizing and tempering refine grain structures, enhancing hardness and toughness -6.

3. Machining & Finishing:

   • CNC machining achieves precise tooth profiles and bore tolerances (e.g., ±0.1 mm) -5.

   • Gear teeth are often hardened through quenching or surface treatments to improve wear resistance -1.

This process ensures components meet international standards (e.g., ISO 9001) for dimensional accuracy and durability -1.

Performance Advantages

• Load Capacity: Supports heavy torque transmission in systems like crushers and mills.

• Fatigue Resistance: Withstands cyclic stresses due to cast steel’s homogeneous microstructure -2.

• Design Flexibility: Complex shapes, including internal gears and hollow shafts, can be cast integrally, reducing the need for assemblies -2.

• Cost Efficiency: Simplifies production by consolidating multiple parts into single castings, lowering assembly time and maintenance costs -2.

Quality Assurance

Each component undergoes:

• Ultrasonic Testing to detect internal defects -4.

• Dimensional Checks via CMM and gear-measuring instruments -5.

• Material Certification verifying chemical composition and mechanical properties -6.

Industrial Applications

These heavy-duty parts are indispensable in:

• Mining & Cement: Girth gears for ball mills, pinions for rotary kilns -5.

• Heavy Machinery: Drive systems in excavators, rolling mill stands -2-6.

• Material Handling: Gearboxes for conveyor systems and crane drives -5.

• Energy Sector: Components for wind turbine gearboxes and hydraulic turbines -6.

Conclusion

Cast steel shaft pinions and gears exemplify engineering excellence, merging material strength with manufacturing precision. By leveraging advanced casting services, industries gain access to components that enhance operational reliability, reduce downtime, and withstand the most challenging conditions. For projects demanding uncompromising performance, these heavy-duty solutions offer a proven path to longevity and efficiency.
