Heavy Rolling Mill Chock & Forging Manipulator Castings: Metallurgy, Heavy Bearing Bore CNC Machining, and Dynamic Shock Damping

Meta Description: A comprehensive technical guide to heavy cast steel rolling mill chocks (work roll and back-up roll chocks) and forging manipulator castings. Learn alloy steel grades (ASTM A148 Gr 115-95 / 42CrMo4 / GS-30Mn5), internal cooling passage casting, heavy CNC boring to ISO H7 tolerances, and 100% NDT inspection.

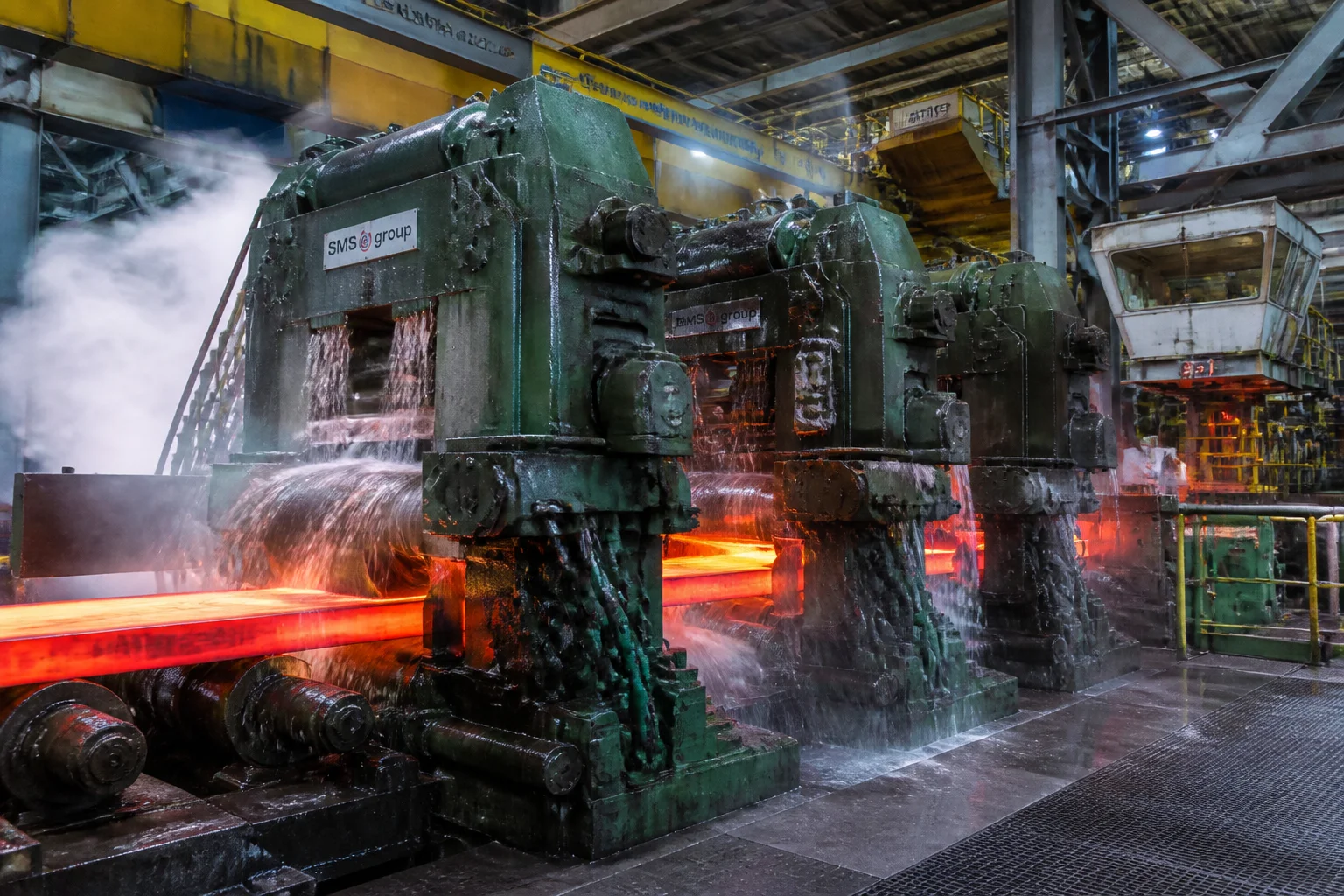

In heavy hot and cold strip steel rolling mills, plate mills, section rolling lines, and heavy open-die forging facilities, roll chocks and forging manipulator assemblies represent the ultimate heavy-duty bearing and handling structures. Operating in non-stop 24/7 metallurgical environments:

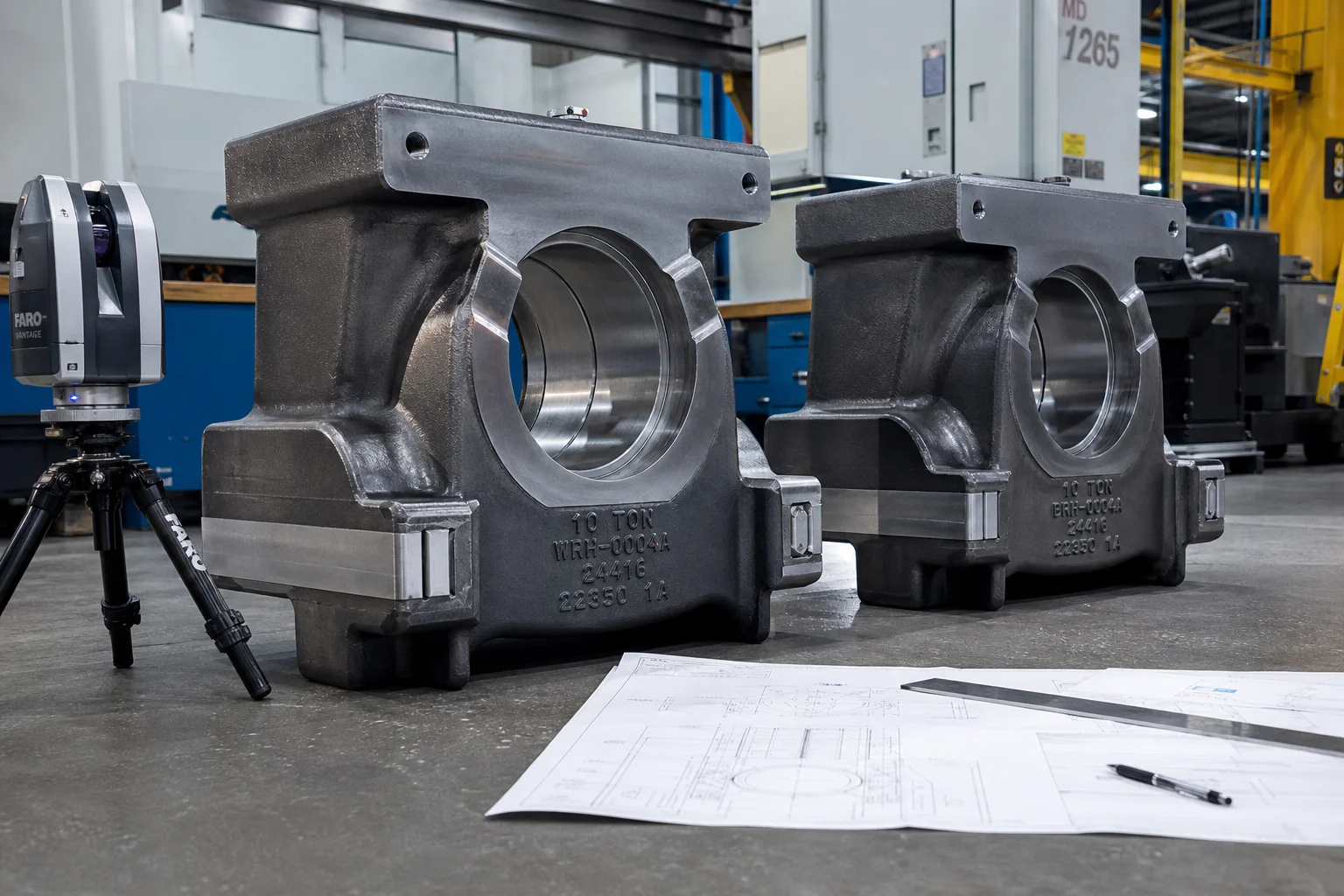

• Rolling Mill Chocks (Work Roll & Back-Up Roll Chocks): Weighing between 2 tons and 25 tons, these massive cast steel blocks house ultra-precision four-row cylindrical roller bearings and thrust bearings, transferring continuous dynamic rolling separating forces exceeding $3,000\text{ to }5,000\text{ metric tons}$3,000 to 5,000 metric tons per roll neck under intense cooling water sprays and scaling abrasive dust.

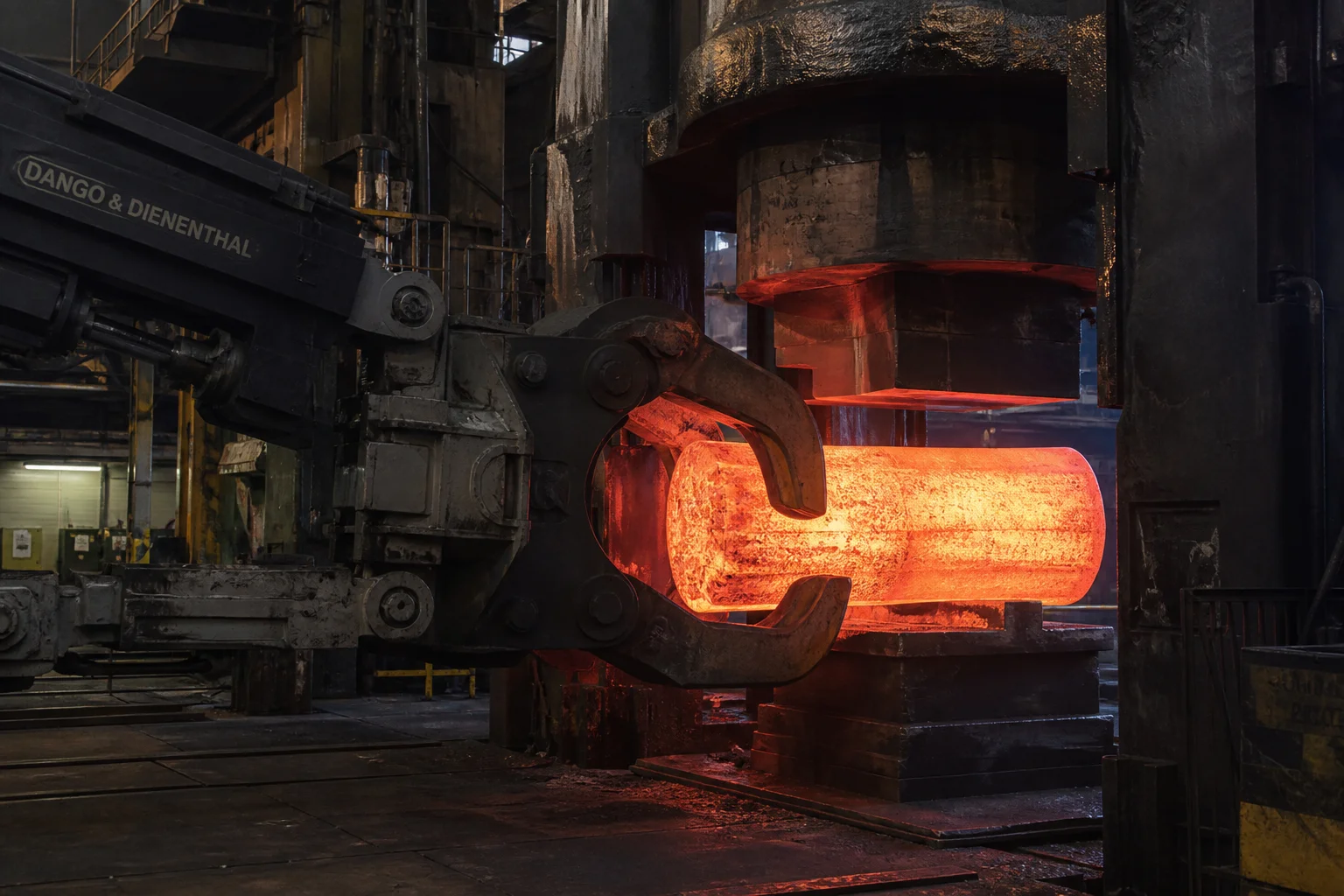

• Forging Manipulator Peel Arms & Jaws: Operating in heavy open-die forge shops, heavy cast steel manipulator chassis, peel arms, and tong jaws grip, lift, rotate, and feed red-hot steel ingots weighing up to 50 tons directly beneath 10,000-ton hydraulic press dies, enduring violent cyclic deceleration shocks and radiant heat loads ($>1,100\text{ °C}$>1,100 °C).

Under these punishing conditions, casting soundness is non-negotiable. A subsurface shrinkage cavity in a bearing support shoulder or an inclusion cluster along a chock guide liner path will trigger localized bearing race distortion, premature multi-thousand-dollar bearing seizure, or catastrophic fatigue fracture across the chock window frame.

Achieving extreme service longevity demands specialized heavy casting engineering: casting High-Strength Quenched & Tempered Alloy Steels (ASTM A148 Gr 105-85 / 115-95, 42CrMo4, and GS-30Mn5), integrating core-supported internal grease/water cooling channels, executing heavy-duty horizontal CNC boring to ISO H7 / P7 bearing seat tolerances ($\le 0.020\text{ mm}$≤0.020 mm roundness), and conducting comprehensive ultrasonic volumetric testing.

This engineering guide details alloy metallurgy, heavy-section thermal risering, internal core design, precision horizontal CNC boring, and quality assurance standards for rolling mill chocks and manipulator castings.

1. Operating Dynamic Load Fields & Failure Modes

                     ┌──────────────────────────────────────────────┐
                     │ Heavy Metallurgical Dynamic Load (>50,000 kN)│
                     └──────────────────────┬───────────────────────┘
                                            │
        ┌───────────────────────────────────┼───────────────────────────────────┐
        ▼                                   ▼                                   ▼
┌───────────────────────────────┐ ┌───────────────────────────────┐ ┌───────────────────────────────┐
│ Rolling Separating Fatigue    │ │ Bearing Seat Ovalization      │ │ Guide Liner Fretting Wear     │
│ (Cyclic cantilever bending on │ │ (Micro-deflection of bearing  │ │ (Severe sliding abrasion on   │
│  chock ears & clamping lugs)  │ │  housing causing roller pinch)│ │  mill housing window pads)    │
└───────────────────────────────┘ └───────────────────────────────┘ └───────────────────────────────┘

|Mill Chock Bronze/Steel Wear Liners| High-pressure vertical sliding against mill housing window | Severe galling, excessive window clearance ($>1.5\text{ mm}$>1.5 mm) |Precision Machined Hardened Tool Steel (40Cr) / Leaded Bronze|

2. Heavy Alloy Steel Metallurgy & Material Hierarchy

Cast steel chocks and manipulator frames feature massive section thicknesses ($150\text{ mm–}450\text{ mm}$150 mm–450 mm). High deep-hardenability alloying is essential to achieve a uniform tempered sorbite/bainite microstructure from surface to thermal core:

Metallurgical Discipline in Heavy Sections:

• Molybdenum ($0.20\mathrm{\%}\text{–}0.35\mathrm{\%}$0.20%–0.35% Mo): Strongly counteracts temper embrittlement during the slow furnace cooling of 15-ton chocks from $600\text{ °C}$600 °C tempering.
• Vacuum Ladle Degassing (VD): Reduces dissolved hydrogen to $[H]\le 1.8\text{ ppm}$[H]≤1.8 ppm, eliminating hydrogen-induced internal micro-flaking and hairline cracking in thick chock walls.

3. Directional Solidification & Internal Cooling Channel Coring

Roll chocks feature complex box geometries with heavy mounting ears and intricate internal grease lubrication and cooling water passages:

┌─────────────────────────────────────────────────────────────┐
│ 1. 3D Precision Master Tooling & Furan Resin Sand Molding   │
│    • High-rigidity molds resist ferrostatic pressure spikes │
├─────────────────────────────────────────────────────────────┤
│ 2. High-Strength Ceramic Sand Cores for Internal Passages   │
│    • Cast-in internal water channels and grease lubrication │
│      galleries; zero core breakage or sintering             │
├─────────────────────────────────────────────────────────────┤
│ 3. CAE Solidification Simulation & Exothermic Feeder Sleeves│
│    • Massive feeder risers located over bearing bore hubs   │
│    • Direct-chills placed on outer liner mounting faces to  │
│      drive directional freezing toward top risers           │
├─────────────────────────────────────────────────────────────┤
│ 4. Clean Bottom-Swirl Ingate Filtration System              │
│    • Tangential ceramic gating prevents slag inclusion traps│
└─────────────────────────────────────────────────────────────┘

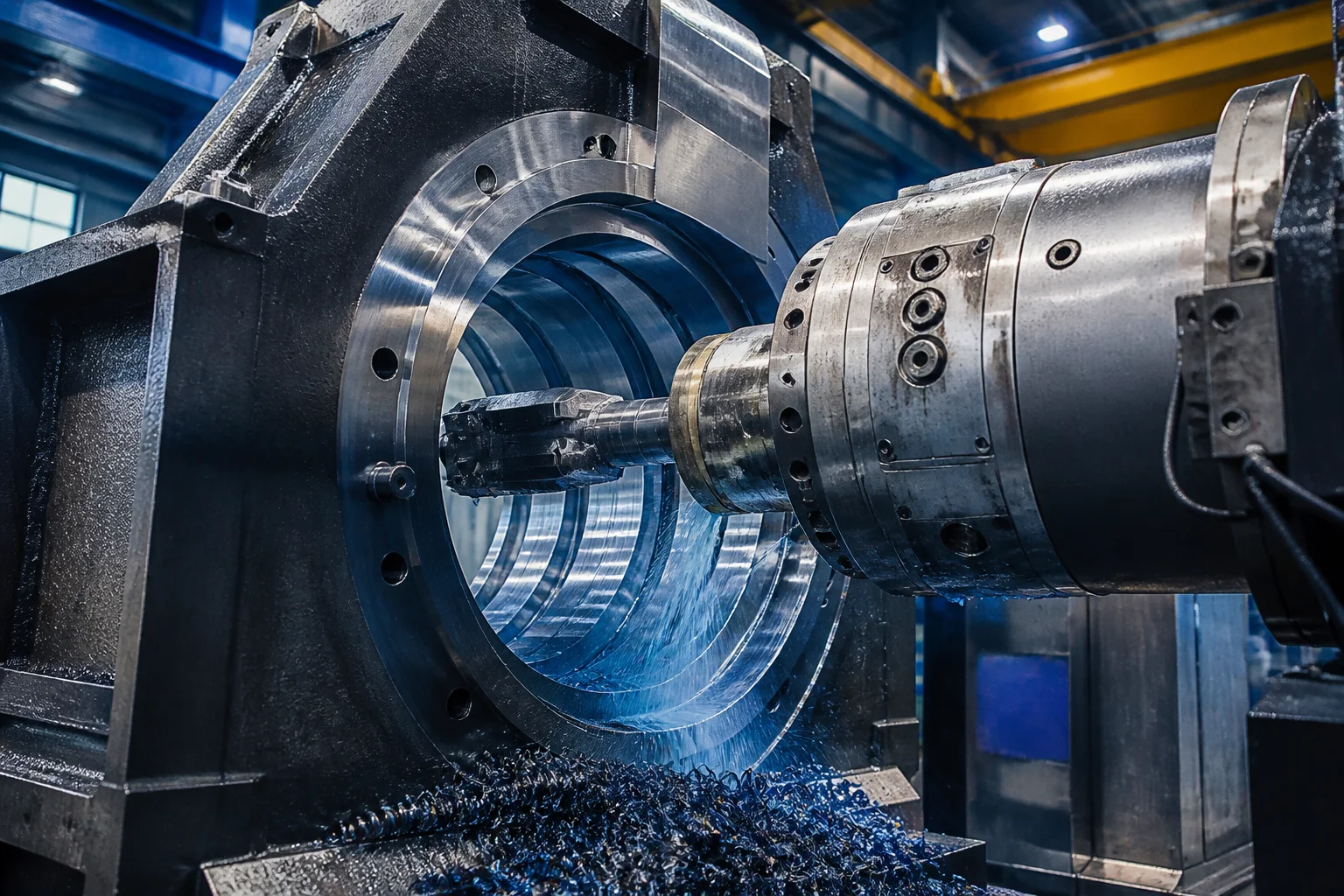

4. Heavy-Duty Horizontal CNC Boring & Precision Liner Machining

Bearing bore geometry directly controls four-row roller bearing load sharing and operational temperature:

        ┌───────────────────────────────────────────────────────┐
        │ 1. Multi-Stage Stress Relief Annealing                │
        │ • 600 °C – 650 °C Stress Relief after Rough Machining │
        └──────────────────────────┬────────────────────────────┘
                                   │
                                   ▼
        ┌───────────────────────────────────────────────────────┐
        │ 2. Heavy Horizontal CNC Floor-Type Boring Mill        │
        │ • Rough and semi-finish boring of main bearing cavity │
        │ • Precision face milling of side liner mounting pads  │
        └──────────────────────────┬────────────────────────────┘
                                   │
                                   ▼
        ┌───────────────────────────────────────────────────────┐
        │ 3. Precision Finish Boring to ISO H7 / P7 Tolerance   │
        │ • Bore diameter tolerance within $\pm 0.020\text{ mm}$│
        │ • Roundness and cylindricity $\le 0.015\text{ mm}$    │
        │ • Perpendicularity to side liner face $\le 0.025\text{ mm}$
        └───────────────────────────────────────────────────────┘

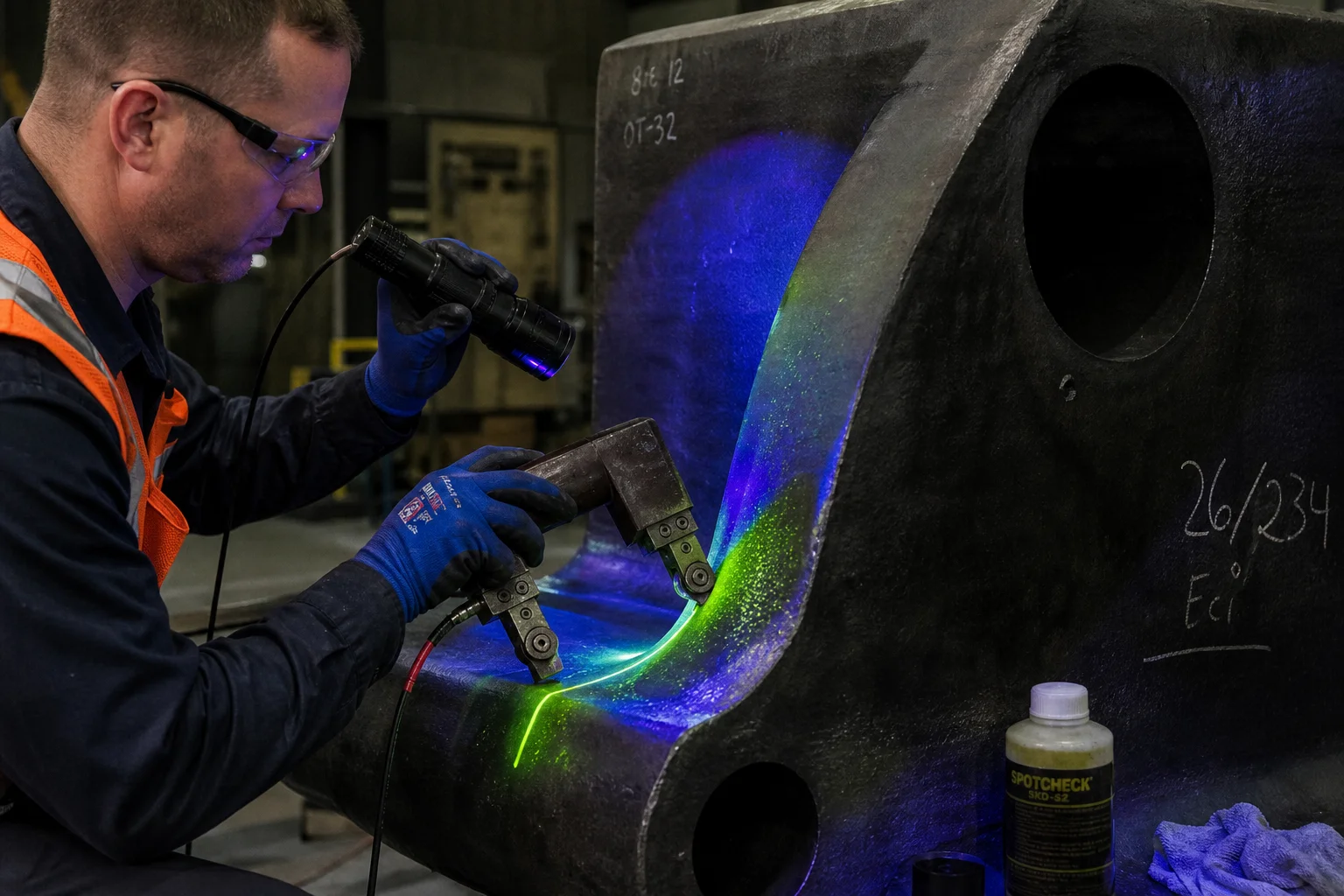

5. Non-Destructive Testing (NDT) & Acceptance Standards

6. Heavy Chock & Manipulator Casting at Dandong City Pengxin Machinery Co., Ltd.

Manufacturing heavy rolling mill chocks and forging manipulator castings requires massive crane lifting capacity, large floor-type CNC boring mills, and certified NDT quality systems.

Dandong City Pengxin Machinery Co., Ltd. delivers fully certified, turnkey finished rolling mill chocks and manipulator castings:

• Heavy Tonnage Production: 80,000 m² facility with dual heavy overhead cranes capable of pouring single alloy steel castings from 1 ton up to 25 tons.
• Comprehensive Alloy Expertise: Certified casting of ASTM A148 Gr 90-60 / 115-95, 42CrMo4, 34CrNiMo6, and GS-30Mn5 heavy structural cast steels.
• Large-Envelope Horizontal CNC Boring: Heavy CNC floor-type boring and milling machines delivering bearing bores up to 2,000 mm diameter to ISO H7 tolerances.
• Turnkey Assembly & Wear Liner Fitting: Complete supply of chocks fitted with precision-machined hardened tool steel or leaded bronze wear liners, seals, and piping manifolds.
• Complete Certification: ISO 9001 certified, providing full EN 10204 3.1 & 3.2 material test certificates, 100% UT/MT reports, and CMM dimensional logs.

Conclusion

Rolling mill chocks and heavy forging manipulator castings represent the rugged mechanical backbone of the global steel and heavy forging industries. Operating under multi-thousand-ton separating forces and violent thermal shocks demands clean vacuum-degassed alloy steel metallurgy (42CrMo4 and GS-30Mn5), scientific directional solidification, precision CNC horizontal boring to ISO H7 tolerances, and 100% volumetric ultrasonic inspection.

Partnering with an experienced, integrated heavy casting and precision machining powerhouse ensures that your rolling mills and forging presses run at peak tonnage with maximum uptime.

Contact Dandong City Pengxin Machinery Co., Ltd. to submit your rolling mill chock or forging manipulator drawings.

Dandong City Pengxin Machinery Co., Ltd. — Heavy Castings and Precision Machining, Since 1958.
