China-Made Stainless Steel Investment Casting Part

As a global hub for advanced manufacturing, China offers world-class capabilities in precision metal casting. The China-Made Stainless Steel Investment Casting Part stands as a testament to this expertise, providing a reliable, high-quality solution for complex components across diverse industries. This article explores the material advantages, superior performance, intricate production process, and wide-ranging applications of these precision-cast parts.

Superior Material and Performance Characteristics

Chinese foundries specialize in a comprehensive range of stainless steel alloys for investment casting, including the 300 series (e.g., 304, 316 for excellent corrosion resistance) and 400 series (e.g., 17-4PH for high strength and hardness). These materials are selected for their ability to meet stringent international standards. The investment casting process itself enhances the innate properties of these steels, resulting in parts with exceptional dimensional accuracy, superior surface finish, and a refined, homogenous grain structure. This translates to outstanding mechanical properties, including high tensile and yield strength, excellent resistance to thermal fatigue, and unparalleled corrosion resistance in harsh environments, ensuring long-term reliability and durability.

Advanced Investment Casting Process

The manufacturing of these parts follows the sophisticated investment casting (lost-wax) process, perfected for high-volume precision. It begins with the creation of an injection-molded wax pattern, often using multi-cavity molds for efficiency. These patterns are assembled onto a central gating system to form a "tree." The tree undergoes a series of ceramic slurry coatings, building up a thick, refractory shell mold. Once the shell is cured, the wax is melted out in a dewaxing autoclave. The resulting hollow ceramic mold is then fired at high temperature to achieve strength and prepare for pouring. Molten stainless steel is then cast into the preheated shell, often under a controlled atmosphere to minimize oxidation. After cooling, the ceramic shell is mechanically removed, and the individual castings are cut from the tree, ready for heat treatment and precision finishing.

Diverse Global Applications

China-made stainless steel investment castings are integral components in a multitude of critical sectors worldwide:

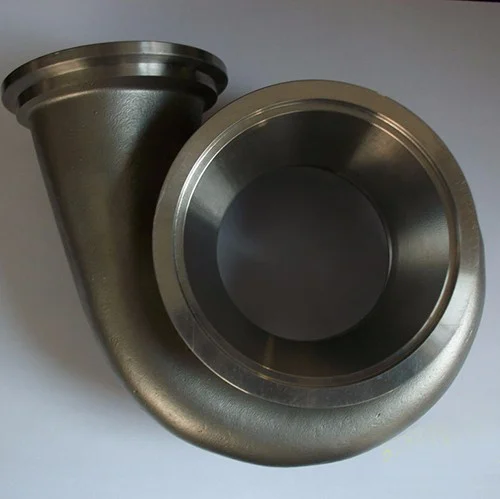

• Automotive & Aerospace: Turbocharger components, sensor housings, and engine parts.

• Food & Beverage Processing: Corrosion-resistant valves, pump impellers, and fittings.

• Medical & Dental: Surgical instrument components, dental chair parts, and imaging device housings.

• Marine & Chemical Processing: Valves, fittings, and pump bodies exposed to seawater and corrosive chemicals.

• Architecture & Hardware: Decorative and functional hardware requiring a fine finish and durability.

Leveraging advanced manufacturing techniques and stringent quality control, China-made stainless steel investment casting parts offer a competitive blend of precision, performance, and value, making them a preferred choice for global OEMs seeking reliable complex components.
